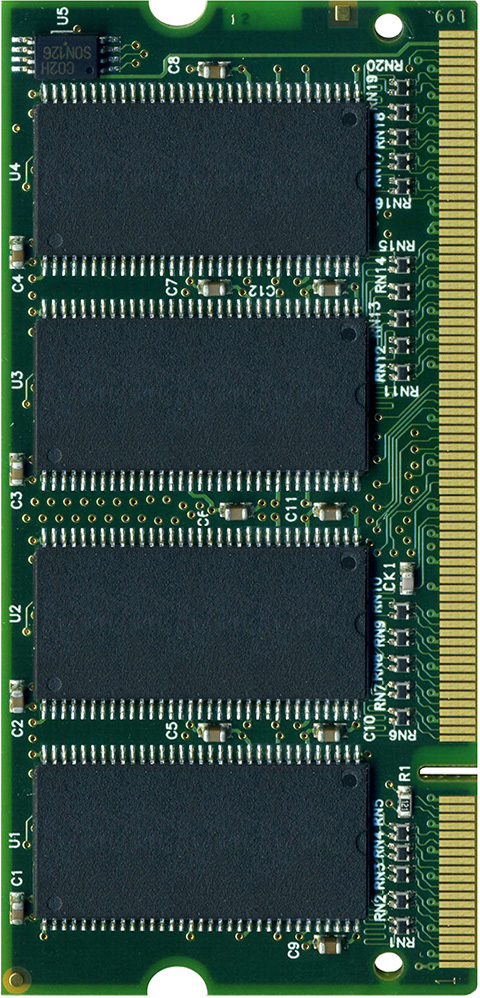

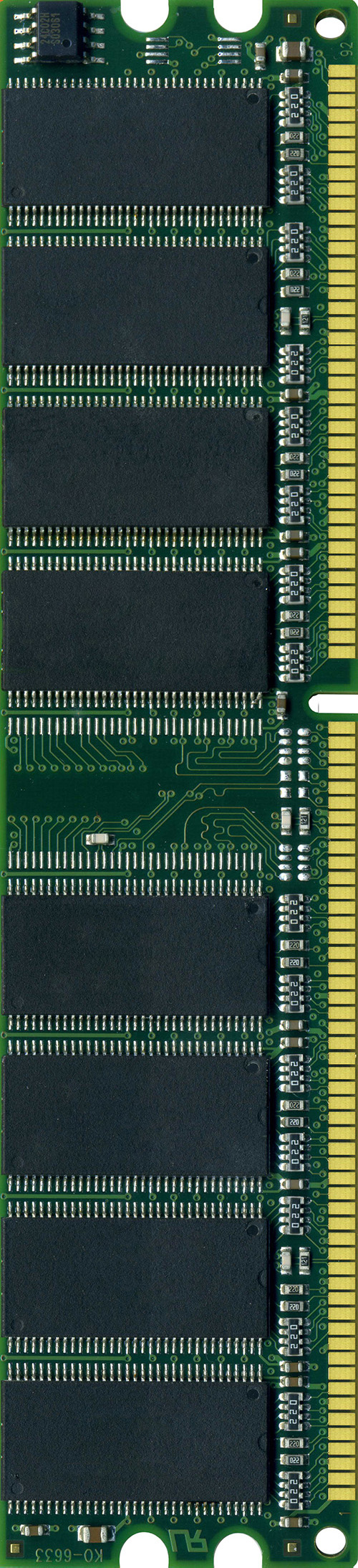

| Model | SO-DIMM | U-DIMM | ||
|---|---|---|---|---|
| Flash Type | DDRI | DDRI | ||
| Capacity | 256MB / 512MB / 1GB | 256MB / 512MB / 1GB | ||
| Grade | 0ºC~+70ºC/-40ºC~+85ºC | 0ºC~+70ºC/-40ºC~+85ºC | ||
| IC Data Rate | DDR-400 | DDR-400 | ||
| Bandwidth | 64 bits | 64 bits | ||
| DIMM Data Rate | 400MHz / 333MHz / 266MHz | 400MHz / 333MHz / 266MHz | ||
| Pin Number | 200 Pins | 184 Pins | ||
| Height | 30 mm + 0.15 mm | 30 mm + 0.15 mm | ||
| Voltage | 2.6V ± 0.2V | 2.6V ± 0.2V |
