Industrial M.2 2280 SATA

Apro

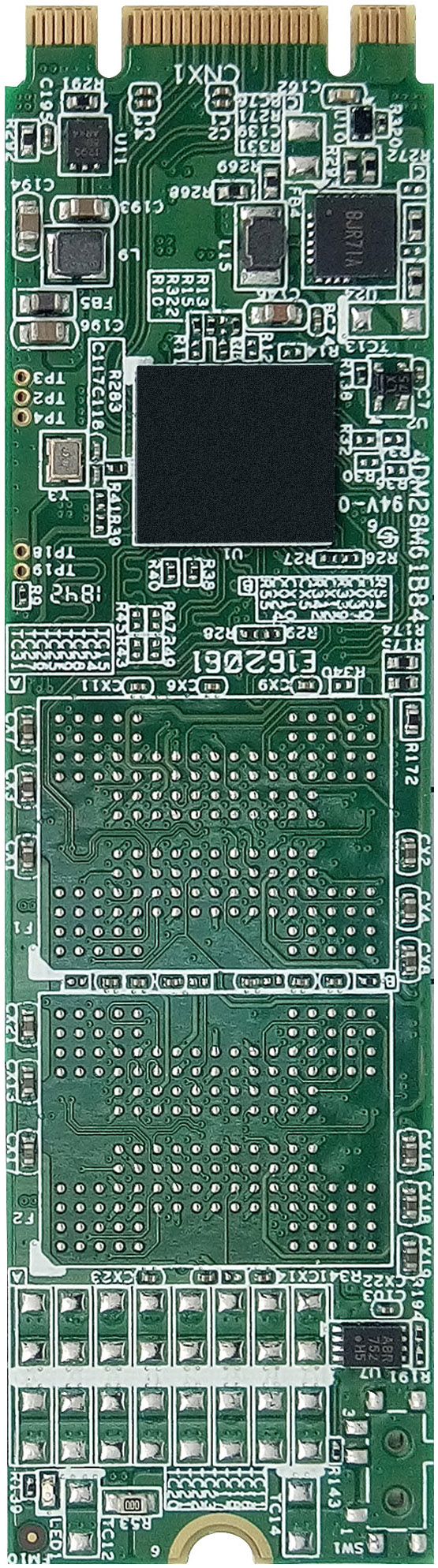

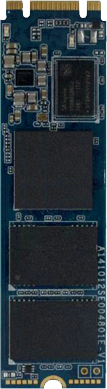

Model MUSE-D PHANES-K PHANES-K PHANES-K
Flash Type MLC MLC aSLC 3D-NAND
Capacity 8GB~256GB 8GB~512GB 8GB~256GB 128GB~1TB
Compatibility SATA Revision 3.1 ATA-8 command set SATA Revision 3.2 ATA-8 ACS4 command set SATA Revision 3.2 ATA-8 ACS4 command set SATA Revision 3.2 ATA-8 ACS4 command set
Data transfer rate SATA 1.5Gb/s, 3.0Gb/s, 6.0Gb/s SATA 1.5Gb/s, 3.0Gb/s, 6.0Gb/s SATA 1.5Gb/s, 3.0Gb/s, 6.0Gb/s SATA 1.5Gb/s, 3.0Gb/s, 6.0Gb/s
Sequential read (Max.) 570 MB/sec 550 MB/sec 550 MB/sec 550 MB/sec
Sequential write (Max.) 150 MB/sec 490 MB/sec 490 MB/sec 500 MB/sec
Operating temp. (STD/IND or WIDE) S : 0˚C~+70˚C/ W : -40˚C~+85˚C S : 0˚C~+70˚C/ W : -40˚C~+85˚C S : 0˚C~+70˚C/ W : -40˚C~+85˚C S : 0˚C~+70˚C/ W : -40˚C~+85˚C
Power requirement +3.3 V ± 5% +3.3 V ± 5% +3.3 V ± 5% +3.3 V ± 5%
Wear-leveling Static Static and Dynamic Static and Dynamic Static and Dynamic
TBW Up to 416 TBW at 256GB Up to 540 TBW at 512GB Up to 1,510 TBW at 256GB Up to 835 TBW at 1TB
Erase counts 3,000 3,000 3,000 3,000
Dimension (WxLxH,mm) 22.00 x 80.00 22.00 x 80.00 22.00 x 80.00 22.00 x 80.00
Model MUSE-ER
Flash Type 3D-NAND
Capacity 128GB~1TB
Compatibility SATA Revision 3.2 ATA-8 ACS4 command set
Data transfer rate SATA 1.5Gb/s, 3.0Gb/s, 6.0Gb/s
Sequential read (Max.) 540 MB/sec
Sequential write (Max.) 470 MB/sec
Operating temp. (STD/IND or WIDE) S : 0˚C~+70˚C/ W : -40˚C~+85˚C
Power requirement +3.3 V ± 5%
Wear-leveling Static
TBW Up to 1,172 TBW at 1TB
Erase counts 3,000
Dimension (WxLxH,mm) 22.00 x 80.00

Silicon Power

  • Compliant with Serial ATA Revision 3.1 standard with 6.0 Gb/s transfer rate
  • Support SP Toolbox SMART health monitoring software
  • SATA DEVSLP for advanced power saving - Compliant with Serial ATA Revision 3.1 standard with 6.0 Gb/s transfer rate
  • Support SP Toolbox SMART health monitoring software
  • SATA DEVSLP for advanced power saving

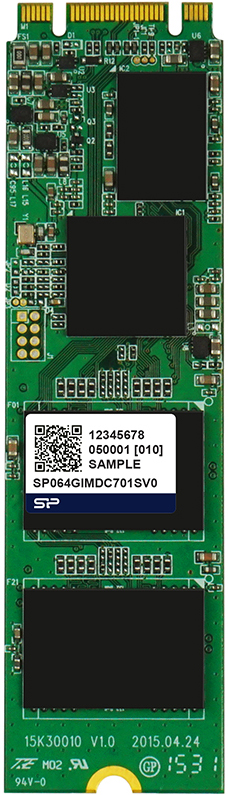

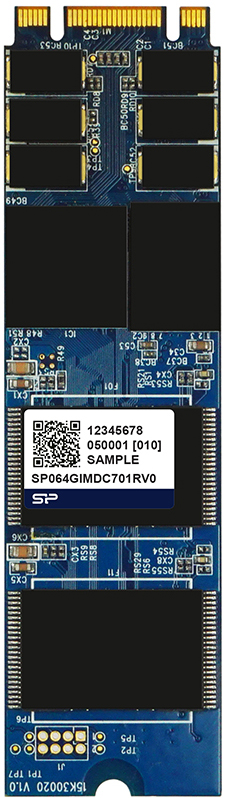

Model MDC700R MDC500R MDC300R MDC700S
Flash Technologie SLC pSLC (MLC) MLC SLC
Interface SATA III/6.0Gbps SATA III/6.0Gbps SATA III/6.0Gbps SATA III/6.0Gbps
Capacity 8GB ~ 64GB 8GB ~ 128GB 16GB ~ 512GB 8GB ~ 64GB
Seq. Performance Read (max.) 175 MB/s 480 MB/s 480 MB/s 175 MB/s
Seq. Performance Write (max.) 165 MB/s 320 MB/s 320 MB/s 165 MB/s
Random 4K Read (IOPS max.) 45.000 74.000 74.000 45.000
Random 4K Write (IOPS max.) 20.000 70.000 70.000 20.000
Power Requirement DC 3.3V DC 3.3V DC 3.3V DC 3.3V
Power Consumption (max.) 500 mA 845 mA 845 mA 500 mA
Power Consumption (idle) 95 mA 95 mA 95 mA 95 mA
Dimension (mm) 80.0 x 22.0 x 3.5 80.0 x 22.0 x 3.5 80.0 x 22.0 x 3.5 80.0 x 22.0 x 3.5
MTBF ≒2,000,000 hrs ≒2,000,000 hrs ≒2,000,000 hrs ≒2,000,000 hrs
Temperature
Operating 0°C ~ 70°C: Standard SP***GIMDC701RV0 SP***GIMDC50*RV0 SP***GIMDC30*RV0 SP***GIMDC701SV0
Operating -15°C ~85°C: Extended SP***GIMDC701RE0 SP***GIMDC50*RE0 SP***GIMDC30*RE0 -
Operating -40°C ~ 85°C: Wide SP***GIMDC701RW0 SP***GIMDC50*RW0 SP***GIMDC30*RW0 -
Key Features
Power Shield
Power Fail Protection
TRIM
S.M.A.R.T
DEVSLP
Advanced Encryption Standard 256
SP SMART Utility

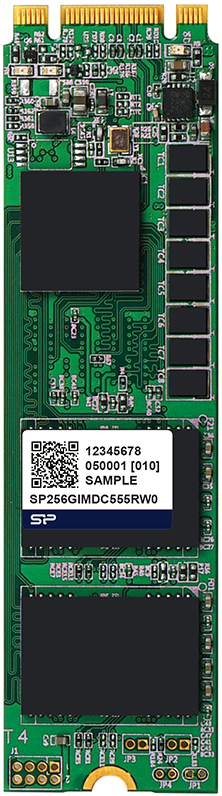

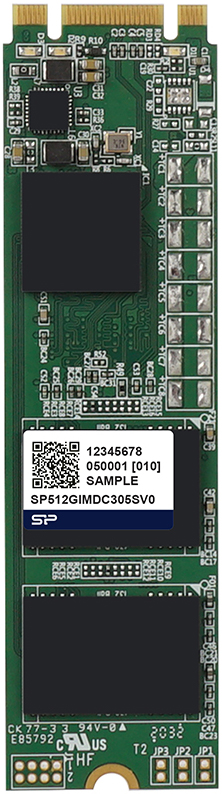

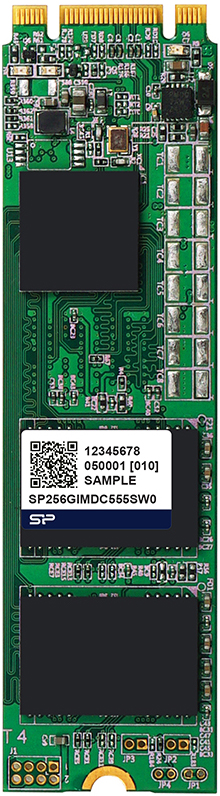

Model MDC300S MDC550R MDC350R MDC550S
Flash Technologie MLC pSLC (3D TLC) 3D TLC pSLC (3D TLC)
Interface SATA III/6.0Gbps SATA III/6.0Gbps SATA III/6.0Gbps SATA III/6.0Gbps
Capacity 16GB ~ 512GB 16GB~256GB 64GB ~ 1TB 16GB~256GB
Seq. Performance Read (max.) 520 MB/s 560 MB/s 520 MB/s 560 MB/s
Seq. Performance Write (max.) 340 MB/s 520 MB/s 460 MB/s 520 MB/s
Random 4K Read (IOPS max.) 75.000 94.000 94.000 94.000
Random 4K Write (IOPS max.) 79.000 89.000 89.000 89.000
Power Requirement DC 3.3V DC 3.3V DC 3.3V DC 3.3V
Power Consumption (max.) 845 mA 750 mA 750 mA 750 mA
Power Consumption (idle) 95 mA 110 mA 110 mA 110 mA
Dimension (mm) 80.0 x 22.0 x 3.5 80.0 x 22.0 x 3.5 80.0 x 22.0 x 3.5 mm 80.0 x 22.0 x 3.5 mm
MTBF ≒2,000,000 hrs ≒2,000,000 hrs ≒2,000,000 hrs ≒2,000,000 hrs
Temperature
Operating 0°C ~ 70°C: Standard SP***GIMDC30*SV0 SP***GIMDC55*RV0 SP***GIMDC35*RV0 SP***GIMDC55*SV0
Operating -15°C ~85°C: Extended SP***GIMDC30*SE0 SP***GIMDC55*RE0 SP***GIMDC35*RE0 SP***GIMDC55*SE0
Operating -40°C ~ 85°C: Wide SP***GIMDC30*SW0 SP***GIMDC55*RW0 SP***GIMDC35*RW0 SP***GIMDC55*SW0
Key Features
Power Shield
Power Fail Protection
TRIM
S.M.A.R.T
DEVSLP
Advanced Encryption Standard 256
SP SMART Utility

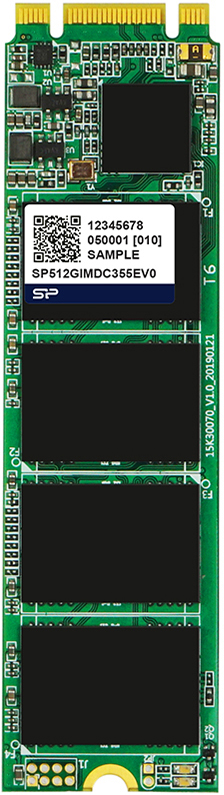

Model MDC350S MDC350E
Flash Technologie 3D TLC 3D TLC
Interface SATA III/6.0Gbps SATA III/6.0Gbps
Capacity 64GB ~ 1TB 64GB ~ 1TB
Seq. Performance Read (max.) 520 MB/s 560 MB/s
Seq. Performance Write (max.) 460 MB/s 520 MB/s
Random 4K Read (IOPS max.) 94.000 51.000
Random 4K Write (IOPS max.) 89.000 53.000
Power Requirement DC 3.3V DC 3.3V
Power Consumption (max.) 750 mA 550 mA
Power Consumption (idle) 110 mA 100 mA
Dimension (mm) 80.0 x 22.0 x 3.5 mm 80.0 x 22.0 x 3.5 mm
MTBF ≒2,000,000 hrs ≒2,000,000 hrs
Temperature
Operating 0°C ~ 70°C: Standard SP***GIMDC35*SV0 SP***GIMDC35*EV0
Operating -15°C ~85°C: Extended SP***GIMDC35*SE0 -
Operating -40°C ~ 85°C: Wide SP***GIMDC35*SW0 -
Key Features
Power Shield
Power Fail Protection
TRIM
S.M.A.R.T
DEVSLP
Advanced Encryption Standard 256
SP SMART Utility
