Eigenschaften

SATA III Industrial M.2 SSDs von 8GB bis 512GB mit SLC / MLC / aSLC / 3D NAND Flash.
M2. 2042, M.2 2060, M.2 2080
S.M.A.R.T., ECC, Wear-Leveling und Bad-Sector-Management.
Dauerbetriebfähig.

Beschreibung

APROs High-Speed SATA III Industrial M.2 SSDs stellen einen embedded Speicher für den direkten Anschluss an die M.2 SATA III Schnittstelle des Mainboards dar. Die Industrial M.2 SATA SSDs sind in Kapazitäten von 8GB bis zu 512GB verfügbar.
Der integrierte Controller stellt die Zuverlässigkeit und Datensicherheit auf Basis von S.M.A.R.T., Fehlerkorrekturverfahren, Bad-Sector-Management, statischem und dynamischemWear-Leveling sicher. Der verwendete NAND Flash garantiert hierbei die gewünschte Performance und Langlebigkeit der Speichermodule.

Weitere Eigenschaften der Industrial M.2 SATA SSD

Optional Conformal-Coating für gesteigerte Resistenz gegen Feuchtigkeit.
Niedriger Stromverbrauch, geringe Abwärme, schnelle Zugriffzeiten und keinerlei Geräuschentwicklung.
Die Industrial M.2 SATA SSDs sind CE, REACH und RoHS konform.

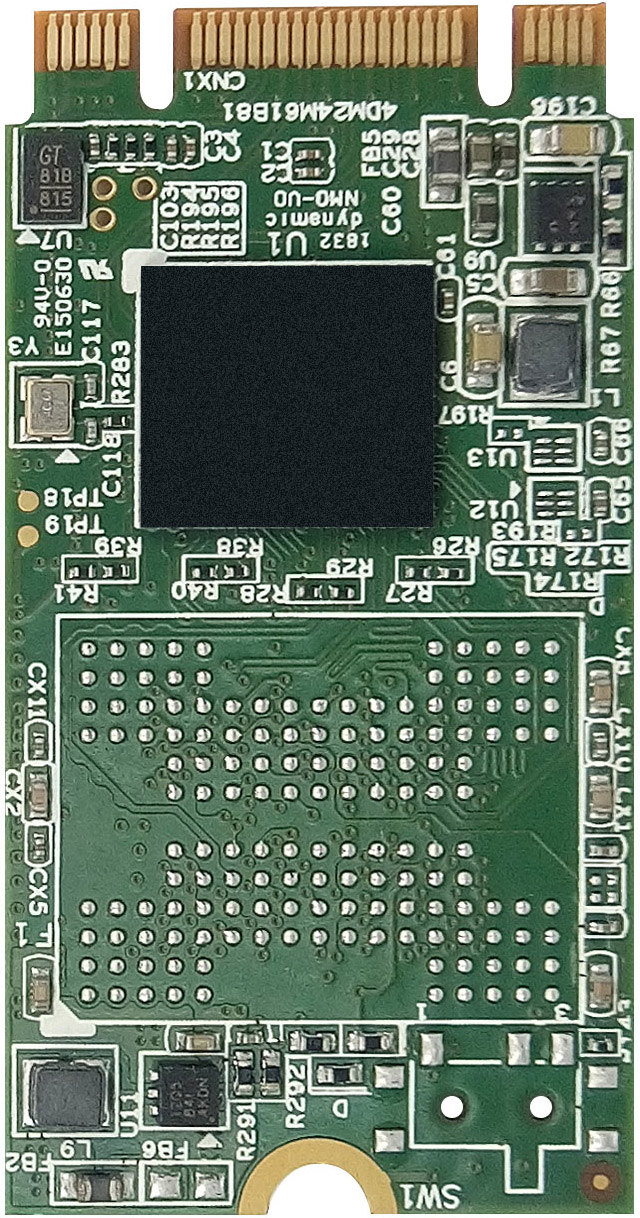

Model	MUSE-D	PHANES-K	PHANES-K	PHANES-K

Flash Type	MLC	MLC	aSLC	3D-NAND
Capacity	8GB~128GB	8GB~256GB	8GB~128GB	32GB~128GB
Compatibility	SATA Revision 3.1 ATA-8 command set	SATA Revision 3.2 ATA-8 ACS4 command set	SATA Revision 3.2 ATA-8 ACS4 command set	SATA Revision 3.2 ATA-8 ACS4 command set
Data transfer rate	SATA 1.5Gb/s, 3.0Gb/s, 6.0Gb/s	SATA 1.5Gb/s, 3.0Gb/s, 6.0Gb/s	SATA 1.5Gb/s, 3.0Gb/s, 6.0Gb/s	SATA 1.5Gb/s, 3.0Gb/s, 6.0Gb/s
Sequential read (Max.)	550 MB/sec	550 MB/sec	550 MB/sec	550 MB/sec
Sequential write (Max.)	130 MB/sec	490 MB/sec	490 MB/sec	450 MB/sec
Operating temp. (STD/IND or WIDE)	S : 0˚C~+70˚C/ W : -40˚C~+85˚C	S : 0˚C~+70˚C/ W : -40˚C~+85˚C	S : 0˚C~+70˚C/ W : -40˚C~+85˚C	S : 0˚C~+70˚C/ W : -40˚C~+85˚C
Power requirement	+3.3 V ± 5%	+3.3 V ± 5%	+3.3 V ± 5%	+3.3 V ± 5%
Wear-leveling	Static	Static and Dynamic	Static and Dynamic	Static and Dynamic
TBW	Up to 416 TBW at 256GB	Up to 540 TBW at 512GB	Up to 1,510 TBW at 256GB	Up to 835 TBW at 1TB
Erase counts	3,000	3,000	3,000	3,000
Dimension (WxLxH,mm)	22.00 x 42.00	22.00 x 42.00	22.00 x 42.00	22.00 x 42.00

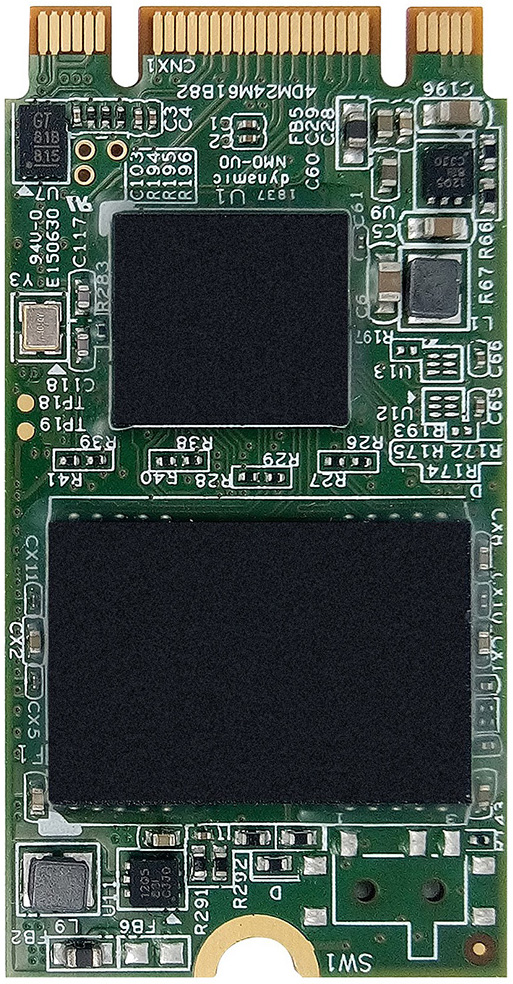

Model	MUSE-ER

Flash Type	3D-NAND
Capacity	128GB~512GB
Compatibility	SATA Revision 3.2 ATA-8 ACS4 command set
Data transfer rate	SATA 1.5Gb/s, 3.0Gb/s, 6.0Gb/s
Sequential read (Max.)	560 MB/sec
Sequential write (Max.)	510 MB/sec
Operating temp. (STD/IND or WIDE)	S : 0˚C~+70˚C/ W : -40˚C~+85˚C
Power requirement	+3.3 V ± 5%
Wear-leveling	Static
TBW	Up to 1,172 TBW at 1TB
Erase counts	3,000
Dimension (WxLxH,mm)	22.00 x 42.00

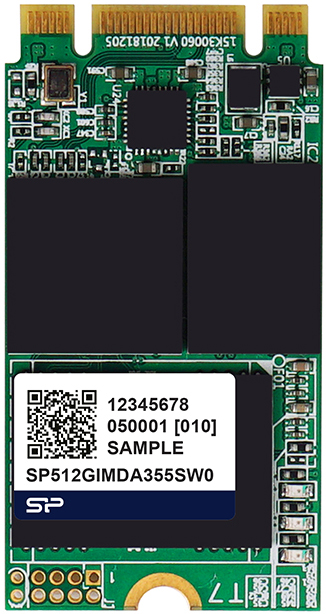

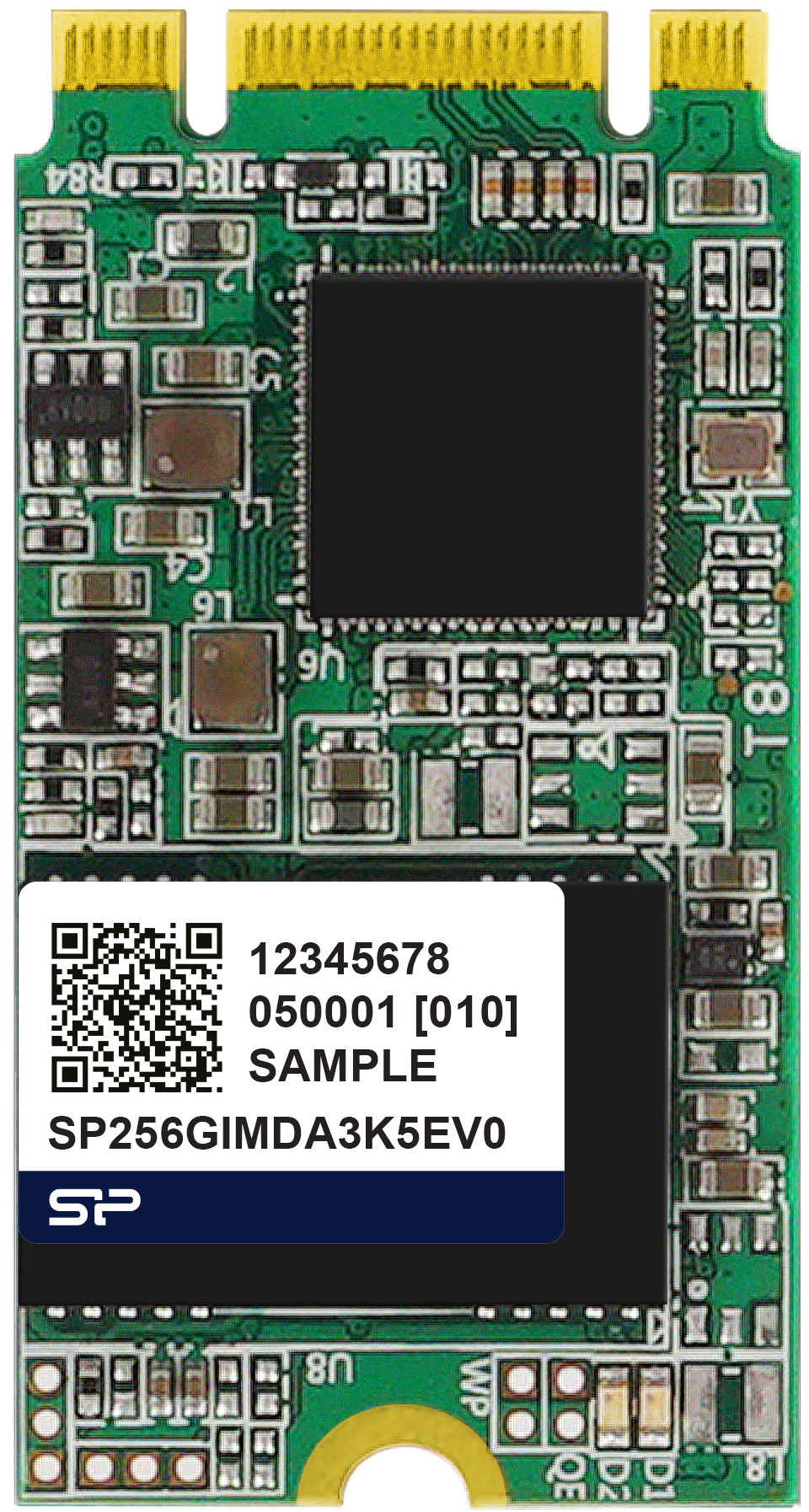

Model	MDA550S	MDA350S	MDA3K0E

Flash Technology	pSLC (3D TLC)	3D TLC	3D TLC
Interface	SATA III/6.0Gbps	SATA III/6.0Gbps	SATA III/6.0Gbps
Capacity	32GB~128GB	64GB ~ 512GB	32GB ~ 512GB
Seq. Performance Read (max.)	520 MB/s	520 MB/s	540 MB/s
Seq. Performance Write (max.)	400 MB/s	400 MB/s	520 MB/s
Random 4K Read (IOPS max.)	29.000	29.000	29.000
Random 4K Write (IOPS max.)	26.000	26.000	84.000
Power Requirement	DC 3.3V	DC 3.3V	DC 3.3V
Power Consumption (max.)	520 mA	520 mA	460 mA
Power Consumption (idle)	160 mA	160 mA	< 115 mA
Dimension (mm)	42.0 x 22.0 x 4.7 mm	42.0 x 22.0 x 4.7 mm	42.0 x 22.0 x 4.7 mm
MTBF	≒3,000,000 hrs	≒3,000,000 hrs	≒3,000,000 hrs
Temperature
Operating 0°C ～ 70°C: Standard	SP**GIMDA55SV0	SP**GIMDA35SV0	SP**GIMDA3KEV0
Operating -15°C ～85°C: Extended	-	-	-
Operating -40°C ～ 85°C: Wide	SP**GIMDA55SW0	SP**GIMDA35SW0	-
Key Features
Power Shield	●	●	●
TRIM	●	●	●
S.M.A.R.T	●	●	●
DEVSLP	●	●
Advanced Encryption Standard 256	●	●
SP SMART Utility	●	●	●

Industrial M.2 2242 SATA
