Industrial mSATA

Apro

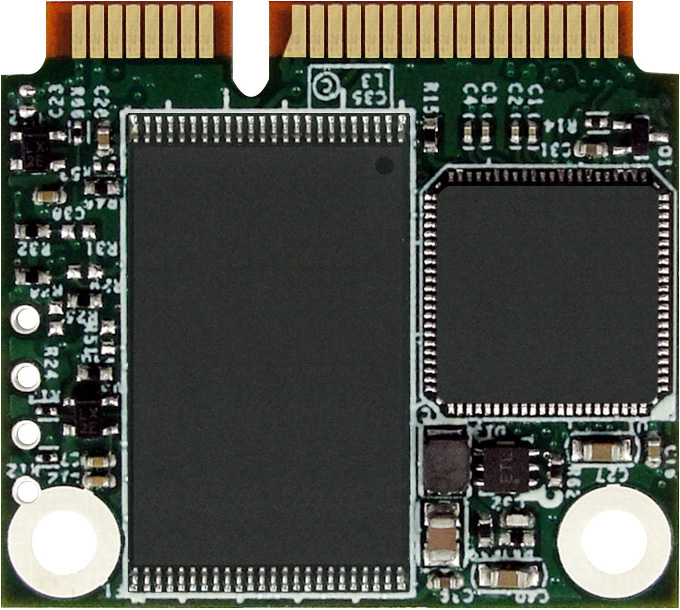

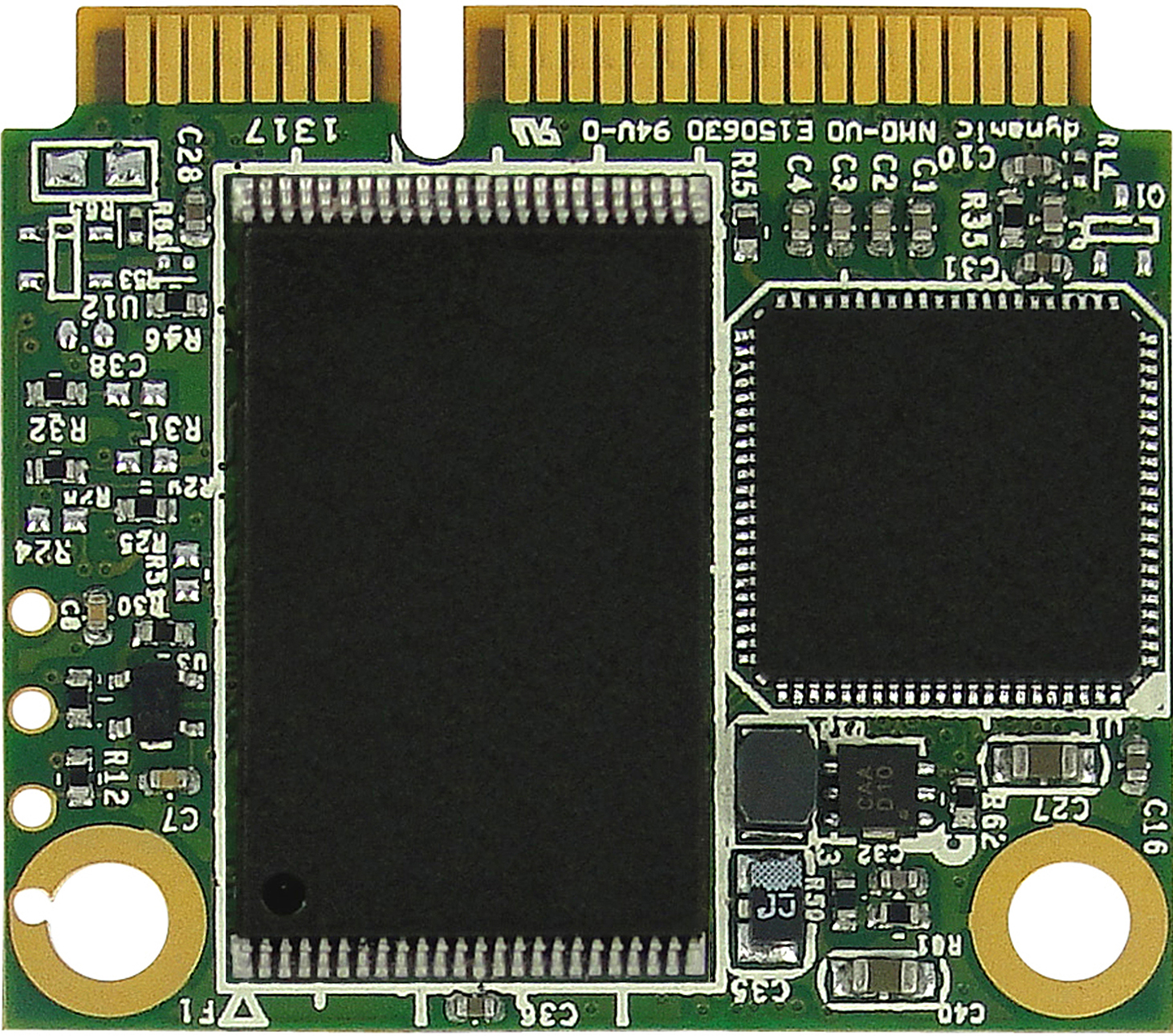

Model HERMES-J HERMES-J MUSE-D PHANES-K
Flash Type SLC MLC MLC 3D-NAND
Capacity 4GB~32GB 4GB~128GB 8GB~128GB 32GB~128GB
Compatibility SATA Revision 3.1 ATA-8 command set SATA Revision 3.1 ATA-8 command set SATA Revision 3.1 ATA-8 command set SATA Revision 3.2 ATA-8 ACS4 command set
Data transfer rate SATA 1.5Gb/s, 3.0Gb/s, 6.0Gb/s SATA 1.5Gb/s, 3.0Gb/s, 6.0Gb/s SATA 1.5Gb/s, 3.0Gb/s, 6.0Gb/s SATA 1.5Gb/s, 3.0Gb/s, 6.0Gb/s
Sequential read (Max.) 220 MB/sec 230.9 MB/sec 533 MB/sec 550 MB/sec
Sequential write (Max.) 110 MB/sec 79.4 MB/sec 125 MB/sec 450 MB/sec
Operating temp. (STD/IND or WIDE) S : 0˚C~+70˚C/ I : -40˚C~+85˚C S : 0˚C~+70˚C/ W : -40˚C~+85˚C S : 0˚C~+70˚C/ W : -40˚C~+85˚C S : 0˚C~+70˚C/ W : -40˚C~+85˚C
Power requirement +3.3 V ± 5% +3.3 V ± 5% +3.3 V ± 5% +3.3 V ± 5%
Wear-leveling Static Static Static Static and Dynamic
TBW Up to 192 TBW at 32GB Up to 38.4 TBW at 128GB Up to 210.5 TBW at 128GB Up to 75 TBW at 128GB
Erase counts 60,000 3,000 3,000 3,000
Dimension (WxLxH,mm) 29.85 x 26.80 29.85 x 26.80 29.85 x 26.80 29.85 x 26.80

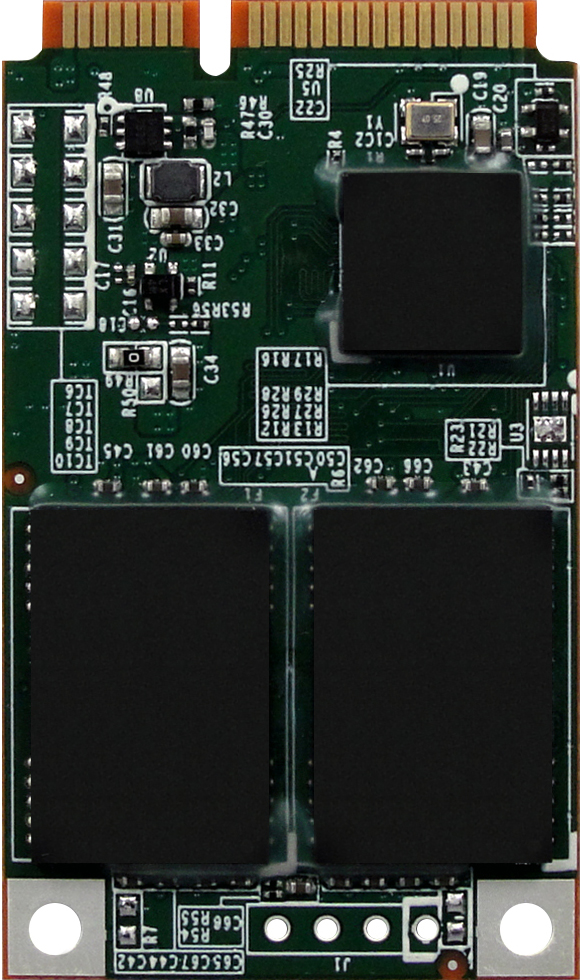

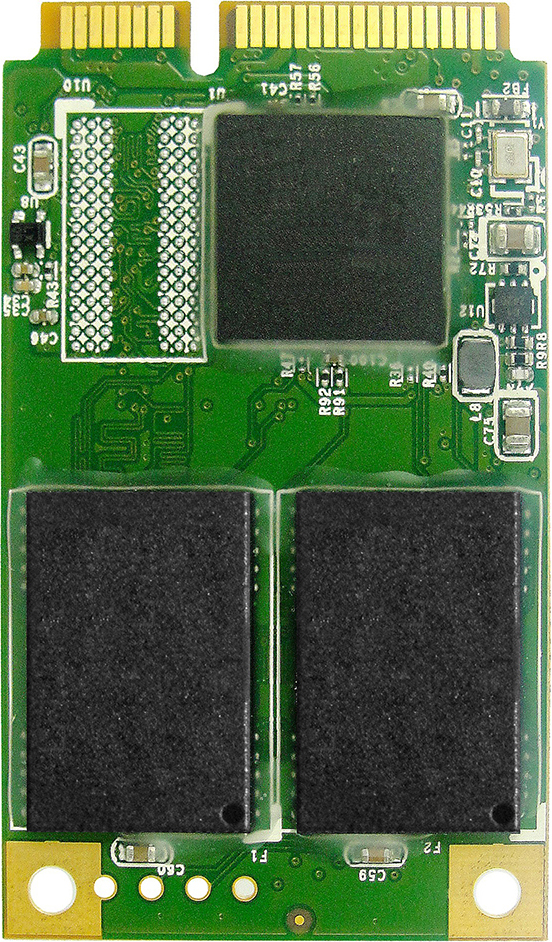

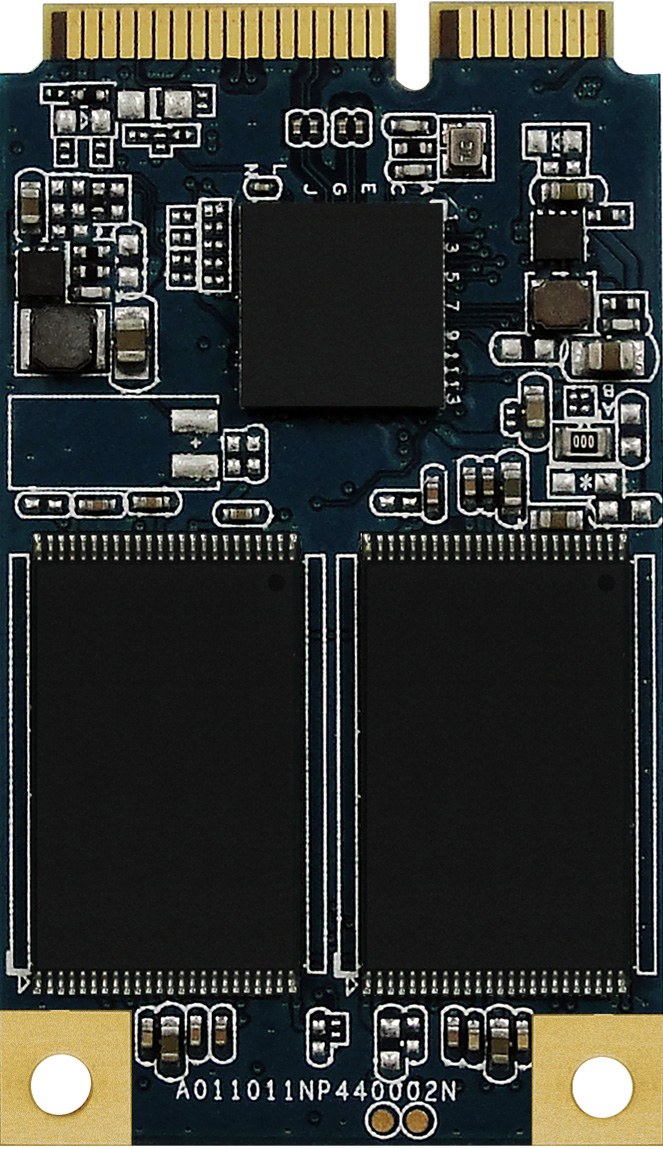

Model HERMES-I PHANES-K HERMES-JI MUSE-D
Flash Type SLC SLC MLC MLC
Capacity 4GB~128GB 8GB~32GB 4GB~512GB 8GB~256GB
Compatibility SATA Revision 3.1 ATA-8 command set SATA Revision 3.2 ATA-8 ACS4 command set SATA Revision 3.1 ATA-8 command set SATA Revision 3.1 ATA-8 command set
Data transfer rate SATA 1.5Gb/s, 3.0Gb/s, 6.0Gb/s SATA 1.5Gb/s, 3.0Gb/s, 6.0Gb/s SATA 1.5Gb/s, 3.0Gb/s, 6.0Gb/s SATA 1.5Gb/s, 3.0Gb/s, 6.0Gb/s
Sequential read (Max.) 385 MB/sec 510 MB/sec 422 MB/sec 535 MB/sec
Sequential write (Max.) 225 MB/sec 305 MB/sec 233 MB/sec 210 MB/sec
Operating temp. (STD/IND or WIDE) S : 0˚C~+70˚C/ I : -40˚C~+85˚C S : 0˚C~+70˚C/ I : -40˚C~+85˚C S : 0˚C~+70˚C/ W : -40˚C~+85˚C S : 0˚C~+70˚C/ W : -40˚C~+85˚C
Power requirement +3.3 V ± 5% +3.3 V ± 5% +3.3 V ± 5% +3.3 V ± 5%
Wear-leveling Static Static and Dynamic Static Static
TBW Up to 768 TBW at 128GB Up to 325 TBW at 32GB Up to 153.6 TBW at 512GB Up to 416 TBW at 256GB
Erase counts 60,000 60,000 3,000 3,000
Dimension (WxLxH,mm) 29.85 x 50.80 29.85 x 50.80 29.85 x 50.80 29.85 x 50.80

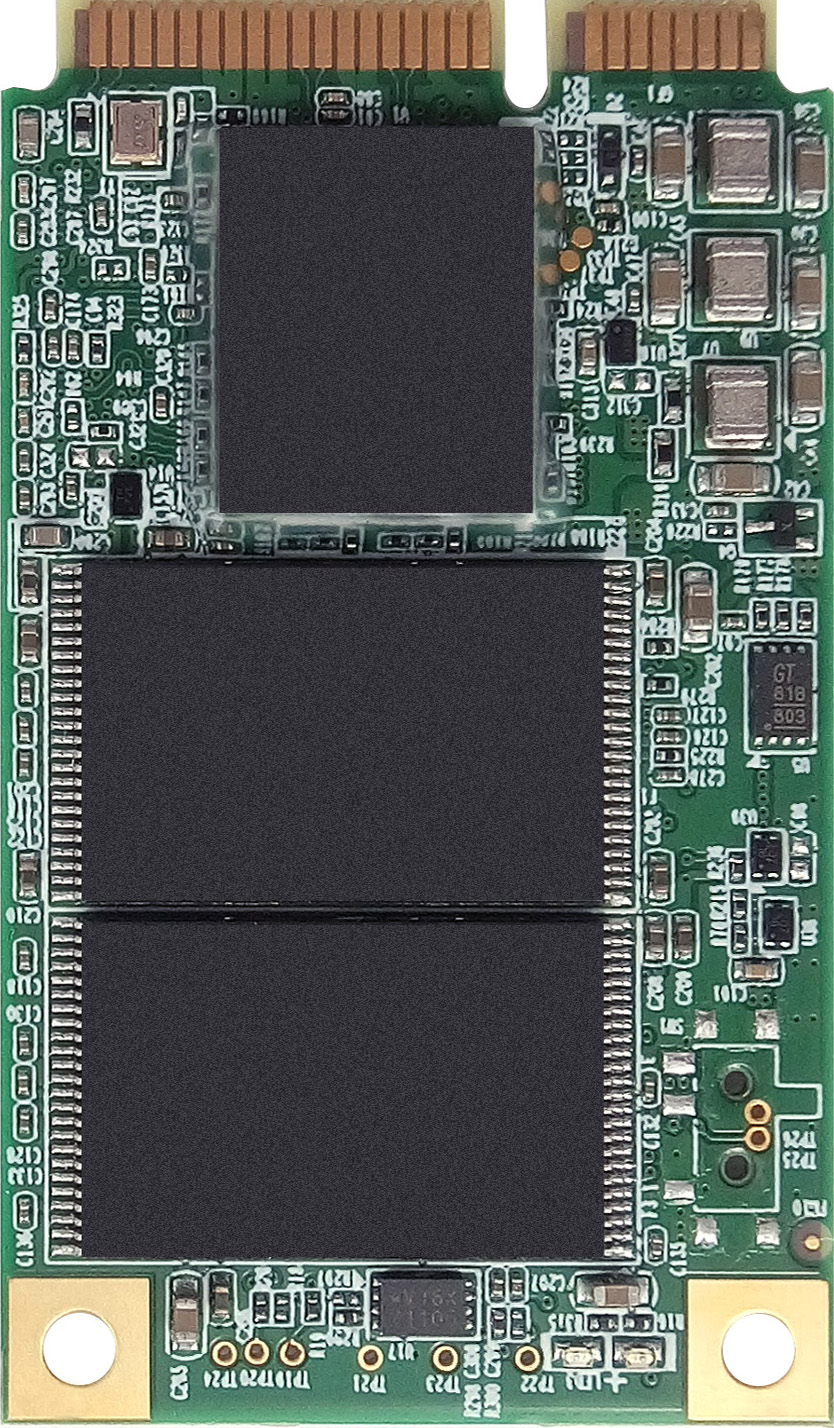

Model PHANES-K PHANES-K PHANES-K MUSE-ER
Flash Type MLC aSLC 3D-NAND 3D-NAND
Capacity 16GB~1TB 8GB~256GB 64GB~1TB 128GB~1TB
Compatibility SATA Revision 3.2 ATA-8 ACS4 command set SATA Revision 3.2 ATA-8 ACS4 command set SATA Revision 3.2 ATA-8 ACS4 command set SATA Revision 3.2 ATA-8 ACS4 command set
Data transfer rate SATA 1.5Gb/s, 3.0Gb/s, 6.0Gb/s SATA 1.5Gb/s, 3.0Gb/s, 6.0Gb/s SATA 1.5Gb/s, 3.0Gb/s, 6.0Gb/s SATA 1.5Gb/s, 3.0Gb/s, 6.0Gb/s
Sequential read (Max.) 550 MB/sec 550 MB/sec 550 MB/sec 560 MB/sec
Sequential write (Max.) 490 MB/sec 490 MB/sec 500 MB/sec 520 MB/sec
Operating temp. (STD/IND or WIDE) S : 0˚C~+70˚C/ W : -40˚C~+85˚C S : 0˚C~+70˚C/ W : -40˚C~+85˚C S : 0˚C~+70˚C/ W : -40˚C~+85˚C S : 0˚C~+70˚C/ W : -40˚C~+85˚C
Power requirement +3.3 V ± 5% +3.3 V ± 5% +3.3 V ± 5% +3.3 V ± 5%
Wear-leveling Static and Dynamic Static and Dynamic Static and Dynamic Static
TBW Up to 1,080 TBW at 1TB Up to 1,510 TBW at 256GB Up to 835 TBW at 1TB Up to 1,170 TBW at 1TB
Erase counts 3,000 20,000 3,000 3,000
Dimension (WxLxH,mm) 29.85 x 50.80 29.85 x 50.80 29.85 x 50.80 29.85 x 50.80

Silicon Power

  • MO-300 standard form factor
  • Compliant with Serial ATA Revision 3.1 Standard with 6.0 Gb/s transfer rate
  • Support SP Toolbox SMART health monitoring software
  • SATA DEVSLP for advance power saving

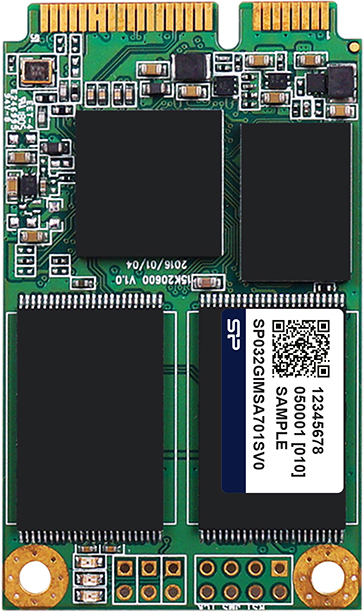

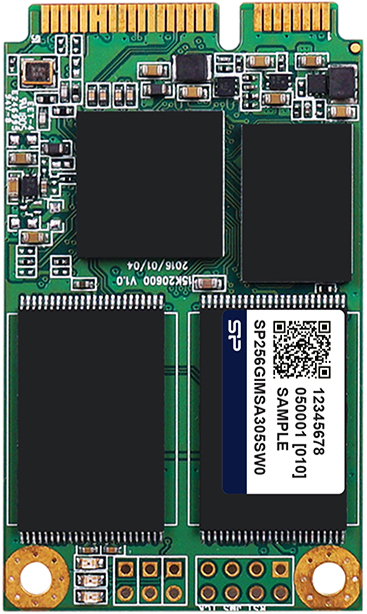

Model MSA700S MSA500S MSA300S MSA330R
Flash Technologie SLC pSLC (MLC) MLC MLC / 3D TLC
Interface SATA III/6.0Gbps SATA III/6.0Gbps SATA III/6.0Gbps SATA III/6.0Gbps
Capacity 8GB ~ 64GB 8GB ~ 256GB 16GB ~ 512GB 32GB ~ 128GB
Seq. Performance Read (max.) 170 MB/s 530 MB/s 530 MB/s 520 MB/s
Seq. Performance Write (max.) 150 MB/s 400 MB/s 400 MB/s 180 MB/s
Random 4K Read (IOPS max.) 36.000 79.000 79.000 TBD
Random 4K Write (IOPS max.) 37.000 74.000 74.000 TBD
Power Requirement DC 3.3V DC 3.3V DC 3.3V DC 3.3V
Power Consumption (max.) 400 mA 780 mA 780 mA 550 mA
Power Consumption (idle) 95 mA 95 mA 95 mA 30 mA
Dimension (mm) 51.0 x 30.0 x 3.5 mm 51.0 x 30.0 x 3.5 mm 51.0 x 30.0 x 3.5 mm 51.0 x 30.0 x 4.9 mm
MTBF ≒2,000,000 hrs ≒2,000,000 hrs ≒2,000,000 hrs ≒2,000,000 hrs
Temperature
Operating 0°C ~ 70°C: Standard SP***GIMSA701SV0 SP***GIMSA50*SV0 SP***GIMSA30*SV0 SP***GIMSA331RV0
Operating -15°C ~85°C: Extended SP***GIMSA701SE0 SP***GIMSA50*SE0 SP***GIMSA30*SE0 -
Operating -40°C ~ 85°C: Wide SP***GIMSA701SW0 SP***GIMSA50*SW0 SP***GIMSA30*SW0 -
Key Features
Power Shield
TRIM
S.M.A.R.T
DEVSLP
Advanced Encryption Standard 256 By Request By Request By Request By Request
SP SMART Utility

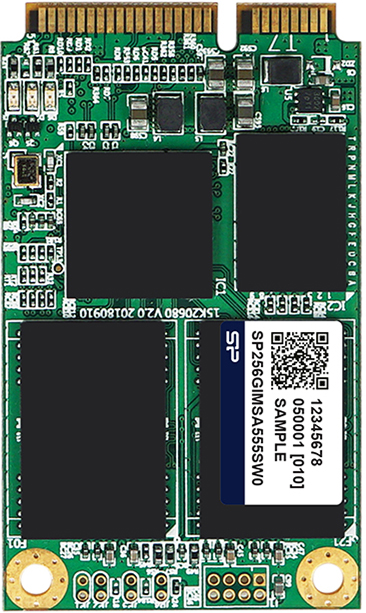

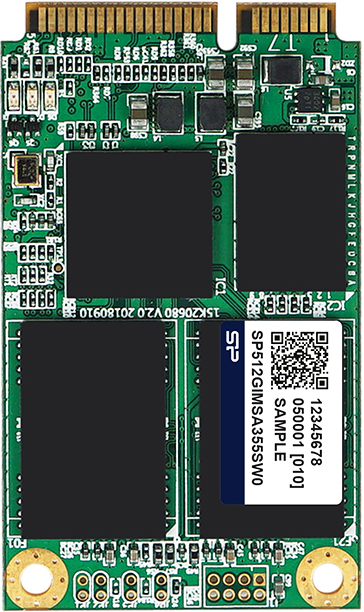

Model MSA550S MSA350S
Flash Technologie pSLC (3D TLC) 3D TLC
Interface SATA III/6.0Gbps SATA III/6.0Gbps
Capacity 8GB~256GB 32GB ~ 1TB
Seq. Performance Read (max.) 560 MB/s 560 MB/s
Seq. Performance Write (max.) 520 MB/s 520 MB/s
Random 4K Read (IOPS max.) 78.000 78.000
Random 4K Write (IOPS max.) 60.000 60.000
Power Requirement DC 3.3V DC 3.3V
Power Consumption (max.) 650 mA 650 mA
Power Consumption (idle) 170 mA 170 mA
Dimension (mm) 51.0 x 30.0 x 3.5 mm 51.0 x 30.0 x 3.5 mm
MTBF ≒2,000,000 hrs ≒2,000,000 hrs
Temperature
Operating 0°C ~ 70°C: Standard SP***GIMSA55*SV0 SP***GIMSA35*SV0
Operating -15°C ~85°C: Extended SP***GIMSA55*SE0 SP***GIMSA35*SE0
Operating -40°C ~ 85°C: Wide SP***GIMSA55*SW0 SP***GIMSA35*SW0
Key Features
Power Shield
TRIM
S.M.A.R.T
DEVSLP
Advanced Encryption Standard 256
SP SMART Utility
