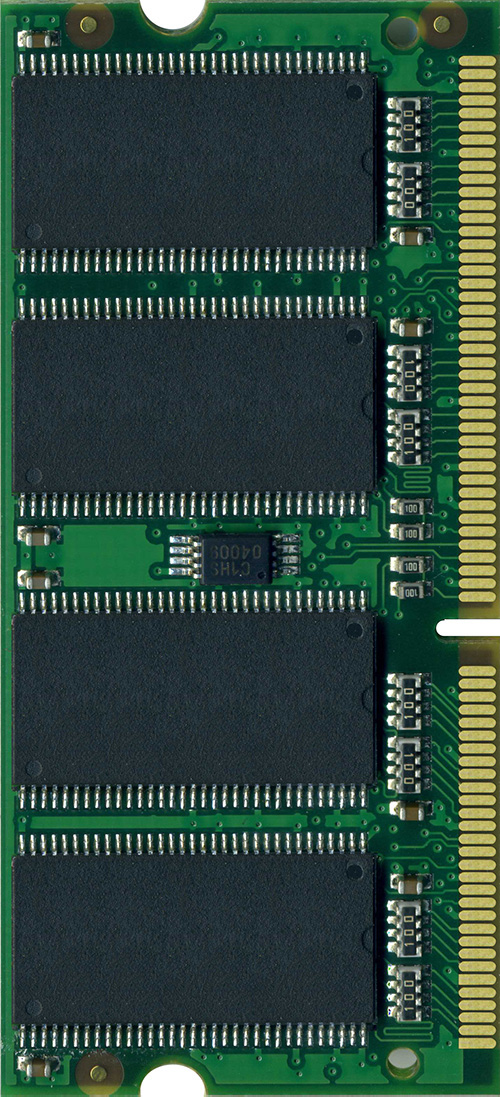

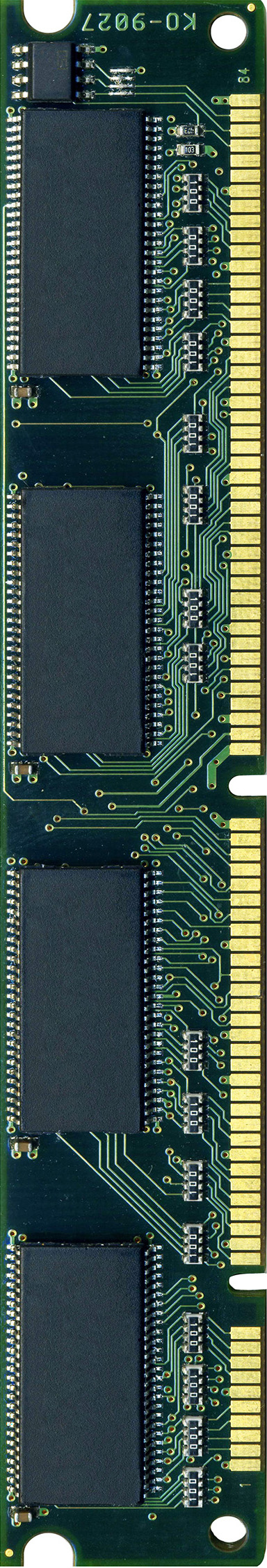

| Model | SO-DIMM | U-DIMM | ||
|---|---|---|---|---|
| Flash Type | SDRAM | SDRAM | ||
| Capacity | 128MB / 256MB | 128MB / 256MB | ||
| Grade | 0ºC~+70ºC/-40ºC~+85ºC | 0ºC~+70ºC/-40ºC~+85ºC | ||
| IC Data Rate | SDR-133 | SDR-133 | ||
| Bandwidth | 64 bits | 64 bits | ||
| DIMM Data Rate | PC133 / PC100 | PC133 / PC100 | ||
| Pin Number | 144 Pins | 168 Pins | ||
| Height | 30 mm + 0.15 mm | 21.90 mm + 0.15 mm | ||
| Voltage | 3.3V ± 0.3V | 3.3V ± 0.3V |
