Industrial Compact Flash CARD

Apro

Eigenschaften

  • Industrial CF Card von 128MB bis 256GB auf Basis von SLC / MLC / aSLCNAND Flash
  • Safe Power Loss Protection Technologie
  • operativer Temperaturbereich von bis zu -40°C bis +85°C
  • S.M.A.R.T., ECC, statische Wear-Leveling-Algorithmen
  • Conformal-Coating optional

Beschreibung

Ausgestattet mit aktuellen TOSHIBA SLC / MLC / aSLCNAND-Flash ICs, S.M.A.R.T. und "Safe Power Loss Protection Technologie" stellen APRO Industrial CompactFlash Cards einen idealen Speicher für kritische Anwendungen dar. Dabei garantiert APRO Stabilität in der Belieferung und die Verwendung zertifizierter und langzeitverfügbarer Komponenten.

Weitere Eigenschaften der Industrial Compact Flash

  • Die Industrial CF Cards sind geeignet für den Einsatz in rauen Umgebungen. Resistent gegen Schock und Vibrationen.
  • Für mechanische starke Beanspruchungen auch mit Metallgehäuse verfügbar.
  • Aufgrund von statischen Wear-Leveling und Bad-Block-Management möglicher Dauerbetrieb der Industrial CF Card.
  • Die Industrial CF Cards sind CE, REACH und RoHS konform.

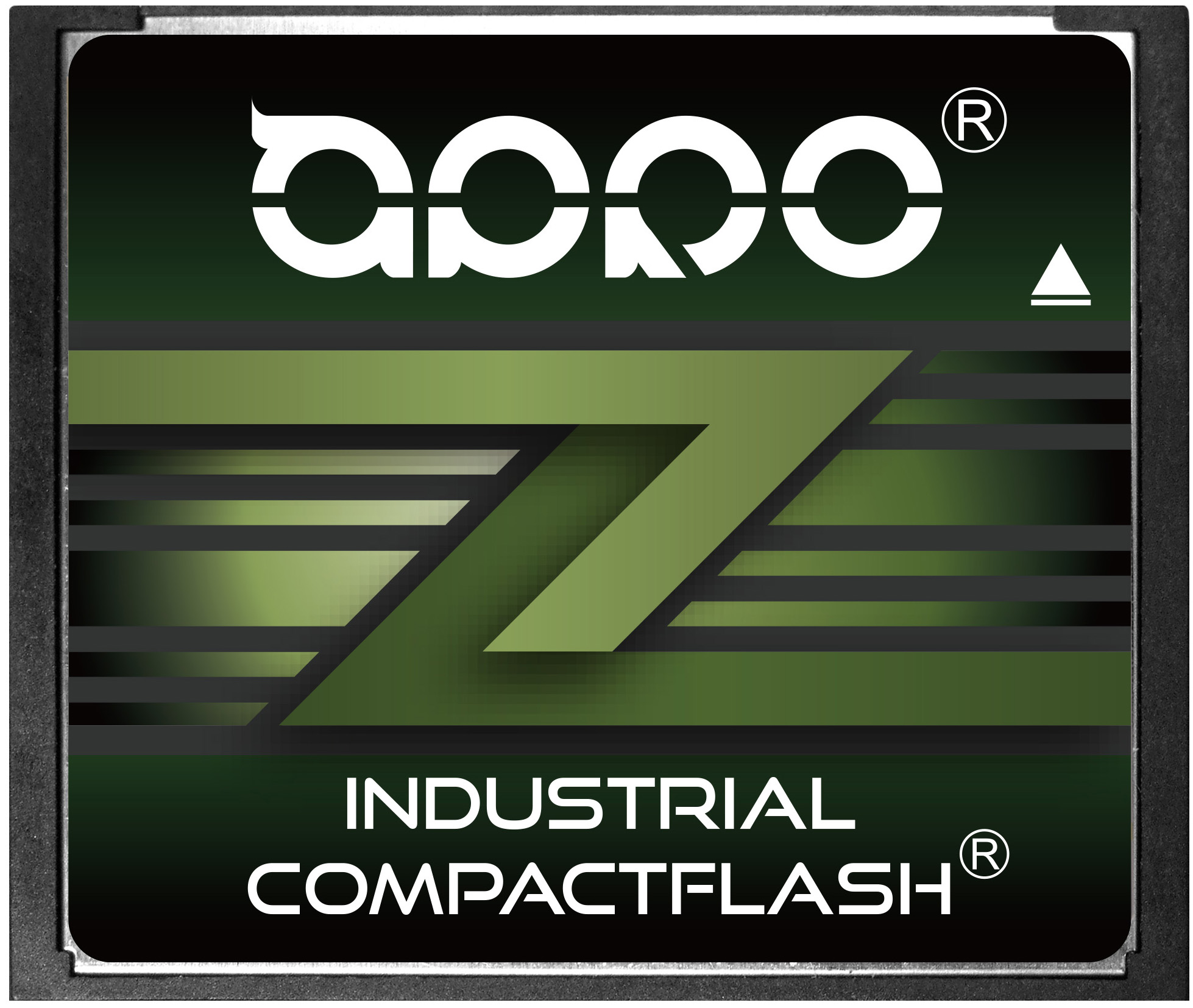

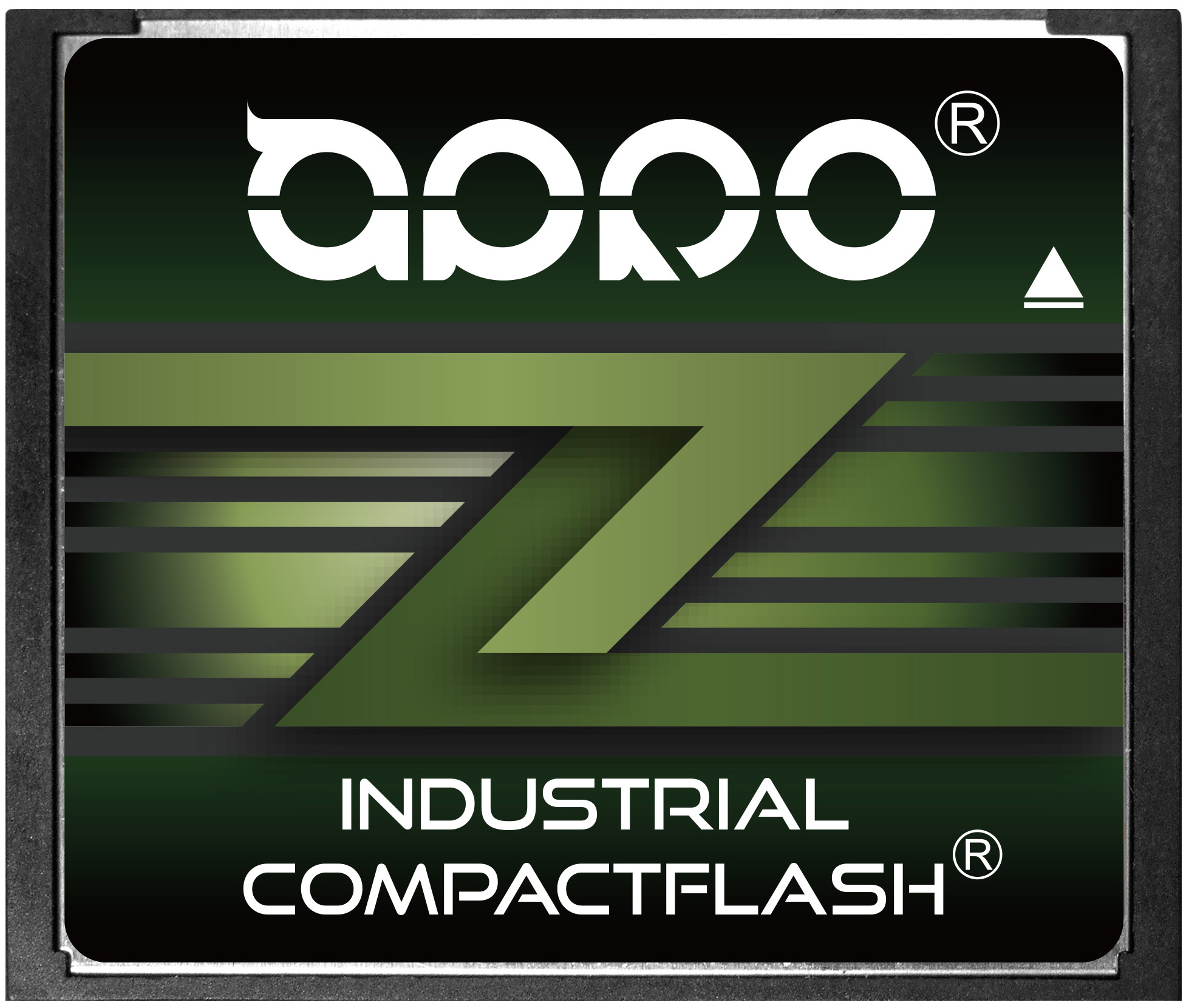

Model HERMIT-F HERCULES-K HERMIT-F HERMIT-F
Flash Type SLC MLC MLC aSLC
Capacity 16MB~64GB 4GB~256GB 8GB~256GB 4GB~128GB
Compatibility CFA 6.1 and ATA/ATAPI-7 CFA 6.0 and ATA/ATAPI-7 CFA 6.1 and ATA/ATAPI-7 CFA 6.1 and ATA/ATAPI-7
Data transfer rate PIO 2~6, MWDMA 0~4, UDMA 0~6 PIO 0~4, MWDMA 0~4, UDMA 0~6 PIO 2~6, MWDMA 0~4 UDMA 0~6 PIO 2~6, MWDMA 0~4, UDMA 0~6
Sequential read (Max.) 64.8 MB/sec 103 MB/sec 117.4 MB/sec 116.8 MB/sec
Sequential write (Max.) 55.7 MB/sec 74.1 MB/sec 64.7 MB/sec 90.9 MB/sec
Operating temp. (STD/IND or WIDE) S : 0˚C~+70˚C/ I : -40˚C~+85˚C S : 0˚C~+70˚C/ W : -40˚C~+85˚C S : 0˚C~+70˚C/ W : -40˚C~+85˚C S : 0˚C~+70˚C/ W : -40˚C~+85˚C
Power requirement +5V ± 10% / + 3.3V ± 10% +5V ± 10% / + 3.3V ± 10% +5V ± 10% / + 3.3V ± 10% +5V ± 10% / + 3.3V ± 10%
Wear-leveling Static Static, Dynamic and Global Global Static, Dynamic and Global Static, Dynamic and Global
TBW Up to 451.7 TBW at 64GB Up to 75 TBW at 256GB Up to 62.5 TBW at 256GB Up to 251.4 TBW at 128GB
Erase counts 60,000 3,000 3,000 20,000
Dimension (WxLxH,mm) 42.8 x 36.4 x 3.3 42.8 x 36.4 x 3.3 42.8 x 36.4 x 3.3 42.8 x 36.4 x 3.3

Silicon Power

  • Follows Type I CompactFlash storage card dimensions
  • CompactFlash specification 6.0 version compliant (PC Card ATA protocol or True IDE mode)
  • Supports PIO Mode 6, Multi-word DMA Mode 4, and Ultra Mode 7
  • Supports SP Toolbox SMART Health Monitoring System software

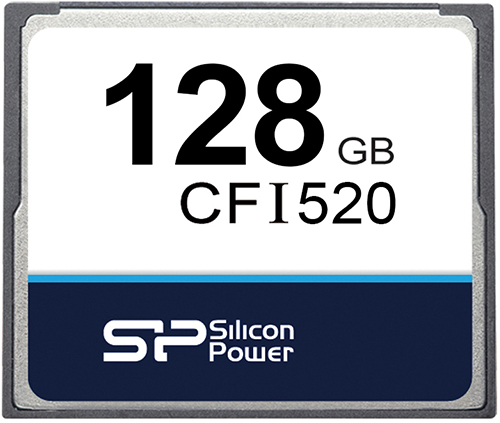

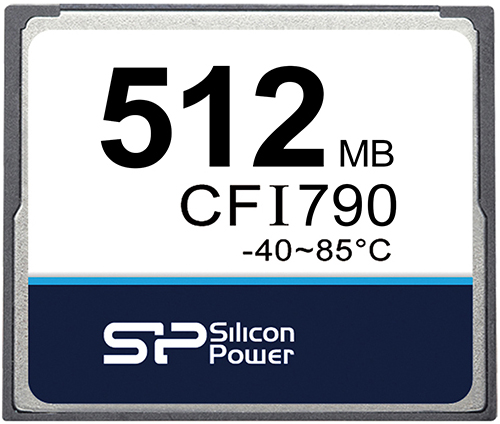

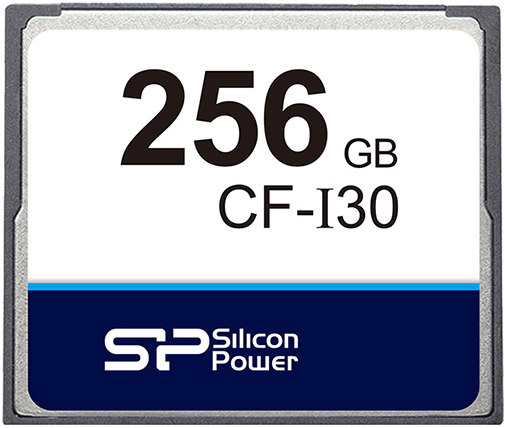

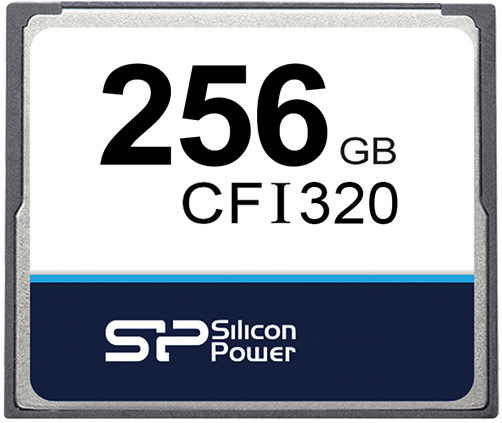

Model CFI790 CFI520 CFI320 CF-I30
Flash Technologie SLC pSLC (MLC) MLC MLC
Interface CF 6.0 CF 6.0 CF 6.0 CF 6.0
Capacity 128MB ~ 16GB 4GB ~ 128GB 8GB ~ 256GB 8GB ~ 256GB
Seq. Performance Read (max.) 60 MB/s 115 MB/s 115 MB/s 130 MB/s
Seq. Performance Write (max.) 30 MB/s 90 MB/s 90 MB/s 80 MB/s
Power Requirement DC 3.3V or DC 5.0V DC 3.3V or DC 5.0V DC 3.3V or DC 5.0V DC 3.3V or DC 5.0V
Power Consumption (max.) 160 mA 360 mA 360 mA 340 mA
Power Consumption (idle) 4.5 mA 300 mA 300 mA 0.3 mA
Dimension (mm) 42.8 x 36.4 x 3.3 42.8 x 36.4 x 3.3 42.8 x 36.4 x 3.3 42.8 x 36.4 x 3.3
MTBF ≒2,000,000 hrs ≒2,000,000 hrs ≒2,000,000 hrs ≒2,000,000 hrs
Temperature
Operating 0°C ～ 70°C: Standard - SP***GICFI52*NV0 SP***GICFI32*NV0 SP****BCFE000V71*T
Operating -15°C ～85°C: Extended - - - -
Operating -40°C ～ 85°C: Wide SP****ICFI791NW0 - - -
Key Features
Write Protect Switch ● ● ● ●
Power Shield ● ● ● ●
S.M.A.R.T ● ● ● ●
SP SMART Utility ● ● ● ●

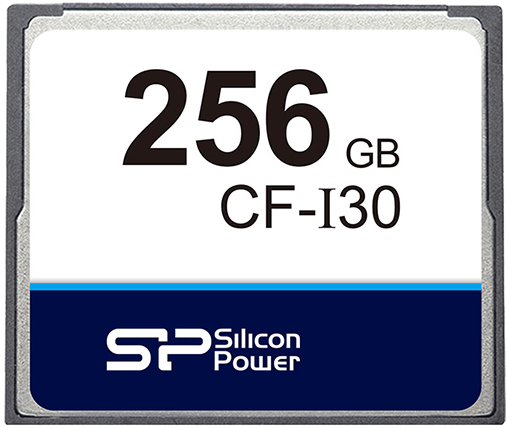

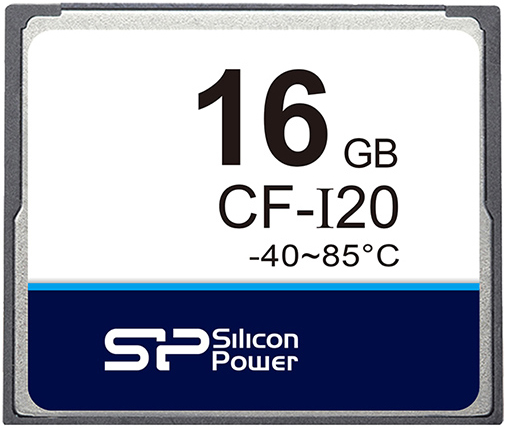

Model CF-I30 CF-I20
Flash Technologie SLC SLC
Interface CF 6.0 CF 4.1
Capacity 1GB ~ 64GB 128MB ~ 1GB
Seq. Performance Read (max.) 120 MB/s 44 MB/s
Seq. Performance Write (max.) 90 MB/s 36 MB/s
Power Requirement DC 3.3V or DC 5.0V DC 3.3V or DC 5.0V
Power Consumption (max.) 340 mA 200 mA
Power Consumption (idle) 0.3 mA 2 mA
Dimension (mm) 42.8 x 36.4 x 3.3 42.8 x 36.4 x 3.3
MTBF ≒2,000,000 hrs ≒2,000,000 hrs
Temperature
Operating 0°C ～ 70°C: Standard SP****BCFI000V71*T SP****BCFI000V60*T
Operating -15°C ～85°C: Extended - -
Operating -40°C ～ 85°C: Wide SP****BCFI000W71*T SP****BCFI000W60*T
Key Features
Write Protect Switch ●
Power Shield ● ●
S.M.A.R.T ● ●
SP SMART Utility ● ●
