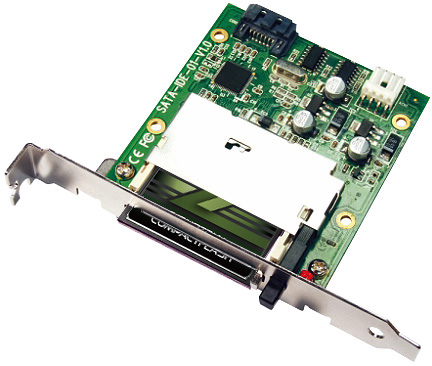

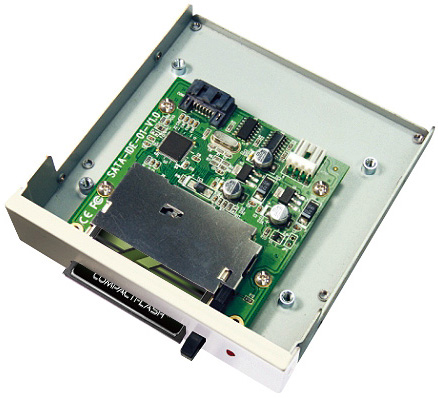

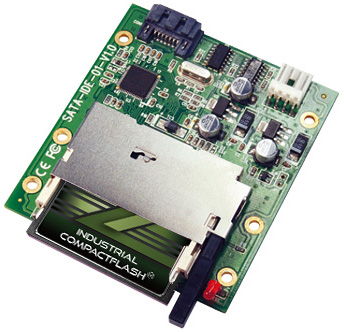

| Model | AD-CF125SATA1003R | AD-CF12RSATA1003R | AD-CF123SATA1003R | |
|---|---|---|---|---|
| Flash Type | 2.5" SATA to CF Card Adapter | 2.5" SATA to CF Card Adapter | 2.5" SATA to CF Card Adapter | |
| SATA / ATA standard & SATA / CFast™ specification | Compliant with serial ATA 1.0a specification Compliant with ultra ATA /66 (UDMA-4) Integrated serial ATA link and PHY logic | Compliant with serial ATA 1.0a specification Compliant with ultra ATA /66 (UDMA-4) Integrated serial ATA link and PHY logic | Compliant with serial ATA 1.0a specification Compliant with ultra ATA /66 (UDMA-4) Integrated serial ATA link and PHY logic | |
| Host interface | SATA 7-pin female connector Serial ATA to parallel ATA device | SATA 7-pin female connector Serial ATA to parallel ATA device | SATA 7-pin female connector Serial ATA to parallel ATA device | |
| CFast™ Socket | CompactFlash® type II socket with ejector | CompactFlash® type II socket with ejector | CompactFlash® type II socket with ejector | |
| Power Connector | 4-pin floppy power connector | 4-pin floppy power connector | 4-pin floppy power connector | |
| Support Card Types | CompactFlash® card type I/II and MicroDrive | CompactFlash® card type I/II and MicroDrive | CompactFlash® card type I/II and MicroDrive | |
| Data Transfer Mode | Support PIO-4 mode, MWDMA-2 mode and up to UDMA-6 mode | Support PIO-4 mode, MWDMA-2 mode and up to UDMA-6 mode | Support PIO-4 mode, MWDMA-2 mode and up to UDMA-6 mode | |
| Performance | Support SATA generation 1 with transfer rate 1.5Gb/sec | Support SATA generation 1 with transfer rate 1.5Gb/sec | Support SATA generation 1 with transfer rate 1.5Gb/sec | |
| LED Indicator | Optional for special request, 1 access LED and 1 active LED | Optional for special request, 1 access LED and 1 active LED | Optional for special request, 1 access LED and 1 active LED | |
| Bootable | Yes | Yes | Yes | |
| Hot Swappable | No | No | No | |
| Operation Voltage | +5V | +5V | +5V | |
| Operating Temperature | 0°C~+70°C | 0°C~+70°C | 0°C~+70°C | |
| Non-operating Temperature | -20°C~+80°C | -20°C~+80°C | -20°C~+80°C | |
| Relative Humidity | Max 90% | Max 90% | Max 90% | |
| Supported O.S. | Compatible with DOS, Windows / Linux and O.S. | Compatible with DOS, Windows / Linux and O.S. | Compatible with DOS, Windows / Linux and O.S. | |
| Dimension (WxLxH,mm) | 70 x 79.7 x 10.7 | 70 x 79.7 x 10.7 | 101.6 x 109.6 x 25.4 |
