Industrial 2.5" SATA SSD

Apro

Eigenschaften

  • Industrial 2.5" SATA III SSD mitSLC / MLC / aSLC / 3D NAND Flash
  • Kapazitäten von 8GB bis 2TB
  • Operativer Temperaturbereich von bis zu -40°C bis +85°C
  • ECC Error correction code, Static- / Dynamic- / Global-Wear-Leveling, S.M.A.R.T.
  • Conformal-Coating optional

Beschreibung

Die Industrial 2.5" SATA III SSDs von APRO zeichnen sich durch Performance, Haltbarkeit, Widerstandsfähigkeit und Ausfallsicherheit aus. Die Zuverlässigkeit und Datensicherheit wird hierbei mittels ECC, verschiedenen Wear-Leveling Verfahren, S.M.A.R.T. und weiteren Funktionen sichergestellt. Alle Industrial 2.5" SATA SSDs sind dabei mit einem Metallgehäuse ausgestattet, um auch mechanischen Belastungen besser standhalten zu können.

Weitere Eigenschaften der 2.5" Industrial SATA III SSD

  • Langzeitverfügbarkeit der Industrial 2.5" SATA III SSD
  • Keine mechanischen Bauteile (Solid-State Technologie). Damit schock- und vibrationsresistent, verschleißfrei und robust.
  • Niedriger Stromverbrauch und keinerlei Geräuschentwicklung.
  • Resistenz gegen Feuchtigkeit der Industrial SATA III SSD mittels optionalem Conformal-Coating Full-Metal Gehäuse für gesteigerte mechanische Widerstandsfähigkeit.
  • Die Industrial 2.5" SATA III SSD sind CE, REACH und RoHS konform.

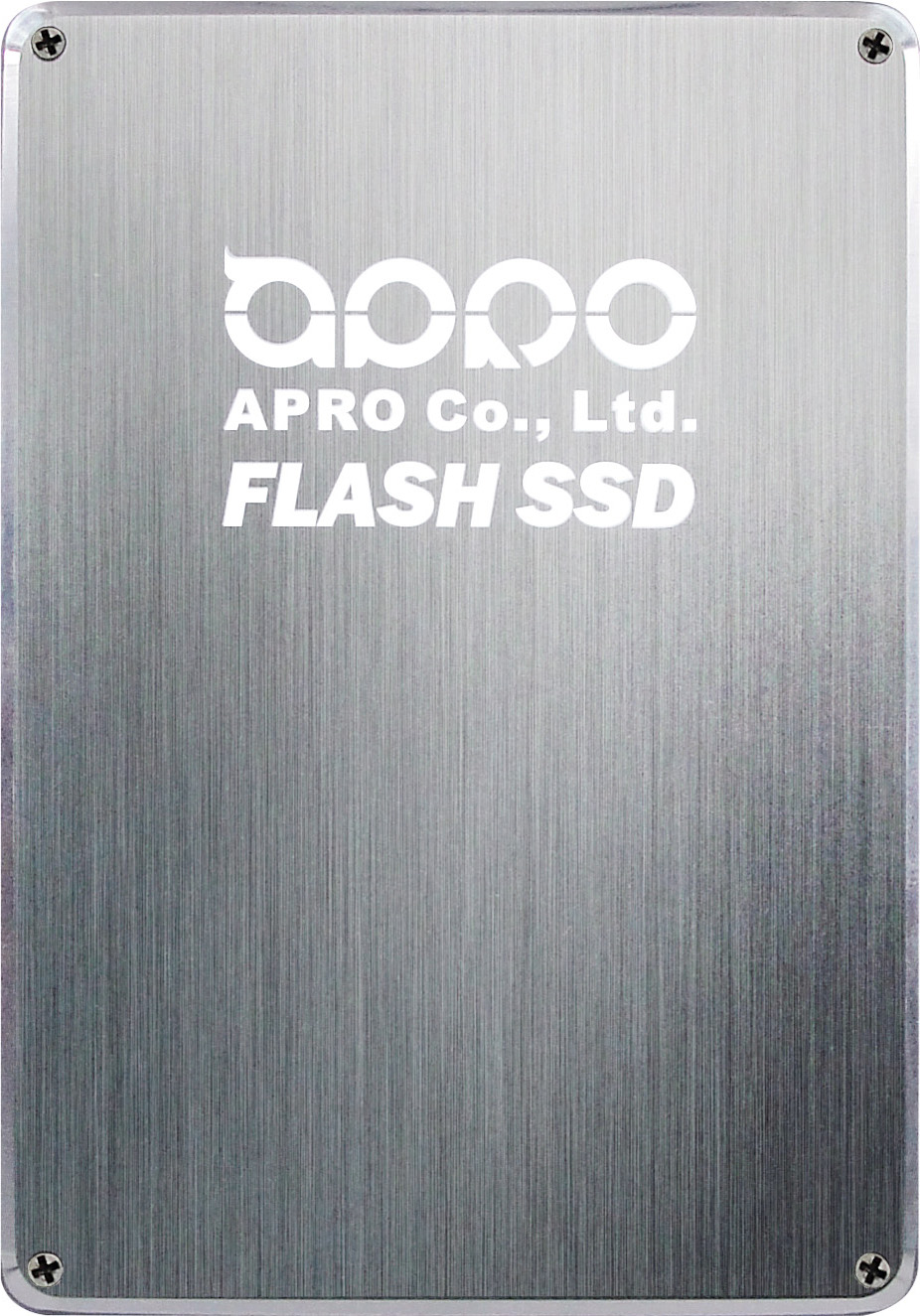

Model PHANES-K HERCULES-TR HERCULES-TT HERMES-JI
Flash Type SLC SLC SLC MLC
Capacity 8GB~128GB 8GB~256GB 8GB~256GB 4GB~512GB
Compatibility SATA Revision 3.2 ATA-8 ACS4 command set SATA Revision 3.1 ATA-8 ACS2 command set SATA Revision 3.1 ATA-8 ACS2 command set SATA Revision 3.1 ATA-8 ACS2 command set
Data transfer rate SATA 1.5Gb/s, 3.0Gb/s, 6.0Gb/s SATA 1.5Gb/s, 3.0Gb/s, 6.0Gb/s SATA 1.5Gb/s, 3.0Gb/s, 6.0Gb/s SATA 1.5Gb/s, 3.0Gb/s, 6.0Gb/s
Sequential read (Max.) 480 MB/sec 561.9 MB/sec 172.8 MB/sec 422 MB/sec
Sequential write (Max.) 425 MB/sec 423.9 MB/sec 166.3 MB/sec 147 MB/sec
Operating temp. (STD/IND or WIDE) S : 0˚C~+70˚C/ I : -40˚C~+85˚C S : 0˚C~+70˚C/ I : -40˚C~+85˚C S : 0˚C~+70˚C/ I : -40˚C~+85˚C S : 0˚C~+70˚C/ W : -40˚C~+85˚C
Power requirement +5 V ± 5% +5 V ± 5% +5 V ± 5% +5 V ± 5%
Wear-leveling Static and Dynamic Global Global Static
TBW Up to 2,133 TBW at 128GB Up to 1,807.4 TBW at 256GB Up to 1,807.4 TBW at 256GB Up to 153.6 TBW at 512GB
Erase counts 60,000 60,000 60,000 3,000
Dimension (WxLxH,mm) 69.9 x 100.00 x 7.00 70.00 x 100.00 x 8.80 70.00 x 100.00 x 8.80 69.00 x 100.00 x 7.00
Model MUSE-D PHANES-K HERCULES-TR HERCULES-TT
Flash Type MLC MLC MLC MLC
Capacity 8GB~256GB 32GB~512GB 32GB~1TB 32GB~1TB
Compatibility SATA Revision 3.1 ATA-8 ACS2 command set SATA Revision 3.2 ATA-8 ACS4 command set SATA Revision 3.1 ATA-8 ACS2 command set SATA Revision 3.1 ATA-8 ACS2 command set
Data transfer rate SATA 1.5Gb/s, 3.0Gb/s, 6.0Gb/s SATA 1.5Gb/s, 3.0Gb/s, 6.0Gb/s SATA 1.5Gb/s, 3.0Gb/s, 6.0Gb/s SATA 1.5Gb/s, 3.0Gb/s, 6.0Gb/s
Sequential read (Max.) 530 MB/sec 550 MB/sec 561.5 MB/sec 561.5 MB/sec
Sequential write (Max.) 210 MB/sec 465 MB/sec 444.1 MB/sec 444.1 MB/sec
Operating temp. (STD/IND or WIDE) S : 0˚C~+70˚C/ W : -40˚C~+85˚C S : 0˚C~+70˚C/ W : -40˚C~+85˚C S : 0˚C~+70˚C/ W : -40˚C~+85˚C S : 0˚C~+70˚C/ W : -40˚C~+85˚C
Power requirement +5 V ± 5% +5 V ± 5% +5 V ± 5% +5 V ± 5%
Wear-leveling Static Static and Dynamic Global Global
TBW Up to 416 TBW at 256GB Up to 540 TBW at 512GB Up to 1,800 TBW at 1TB Up to 1,800 TBW at 1TB
Erase counts 3,000 3,000 3,000 3,000
Dimension (WxLxH,mm) 69.00 x 100.00 x 7.00 69.9 x 100.00 x 7.00 70.00 x 100.00 x 8.80 70.00 x 100.00 x 8.80
Model PHANES-K PHANES-K MUSE-ER MUSE-ET
Flash Type aSLC 3D-NAND 3D-NAND 3D-NAND
Capacity 16GB~256GB 32GB~1TB 128GB~4TB 128GB~2TB
Compatibility SATA Revision 3.2 ATA-8 ACS4 command set SATA Revision 3.2 ATA-8 ACS4 command set SATA Revision 3.2 ATA-8 ACS4 command set SATA Revision 3.2 ATA-8 ACS4 command set
Data transfer rate SATA 1.5Gb/s, 3.0Gb/s, 6.0Gb/s SATA 1.5Gb/s, 3.0Gb/s, 6.0Gb/s SATA 1.5Gb/s, 3.0Gb/s, 6.0Gb/s SATA 1.5Gb/s, 3.0Gb/s, 6.0Gb/s
Sequential read (Max.) 550 MB/sec 550 MB/sec 560 MB/sec 550 MB/sec
Sequential write (Max.) 490 MB/sec 500 MB/sec 525 MB/sec 475 MB/sec
Operating temp. (STD/IND or WIDE) S : 0˚C~+70˚C/ W : -40˚C~+85˚C S : 0˚C~+70˚C/ W : -40˚C~+85˚C S : 0˚C~+70˚C/ W : -40˚C~+85˚C S : 0˚C~+70˚C/ W : -40˚C~+85˚C
Power requirement +5 V ± 5% +5 V ± 5% +5 V ± 5% +5 V ± 5%
Wear-leveling Static and Dynamic Static and Dynamic Static Static
TBW Up to 1,510 TBW at 256GB Up to 835 TBW at 1TB Up to 4,800 TBW at 4TB Up to 2,344 TBW at 2TB
Erase counts 20,000 3,000 3,000 3,000
Dimension (WxLxH,mm) 69.9 x 100.00 x 7.00 69.9 x 100.00 x 7.00 69.9 x 100.00 x 7.00 69.9 x 100.00 x 7.00

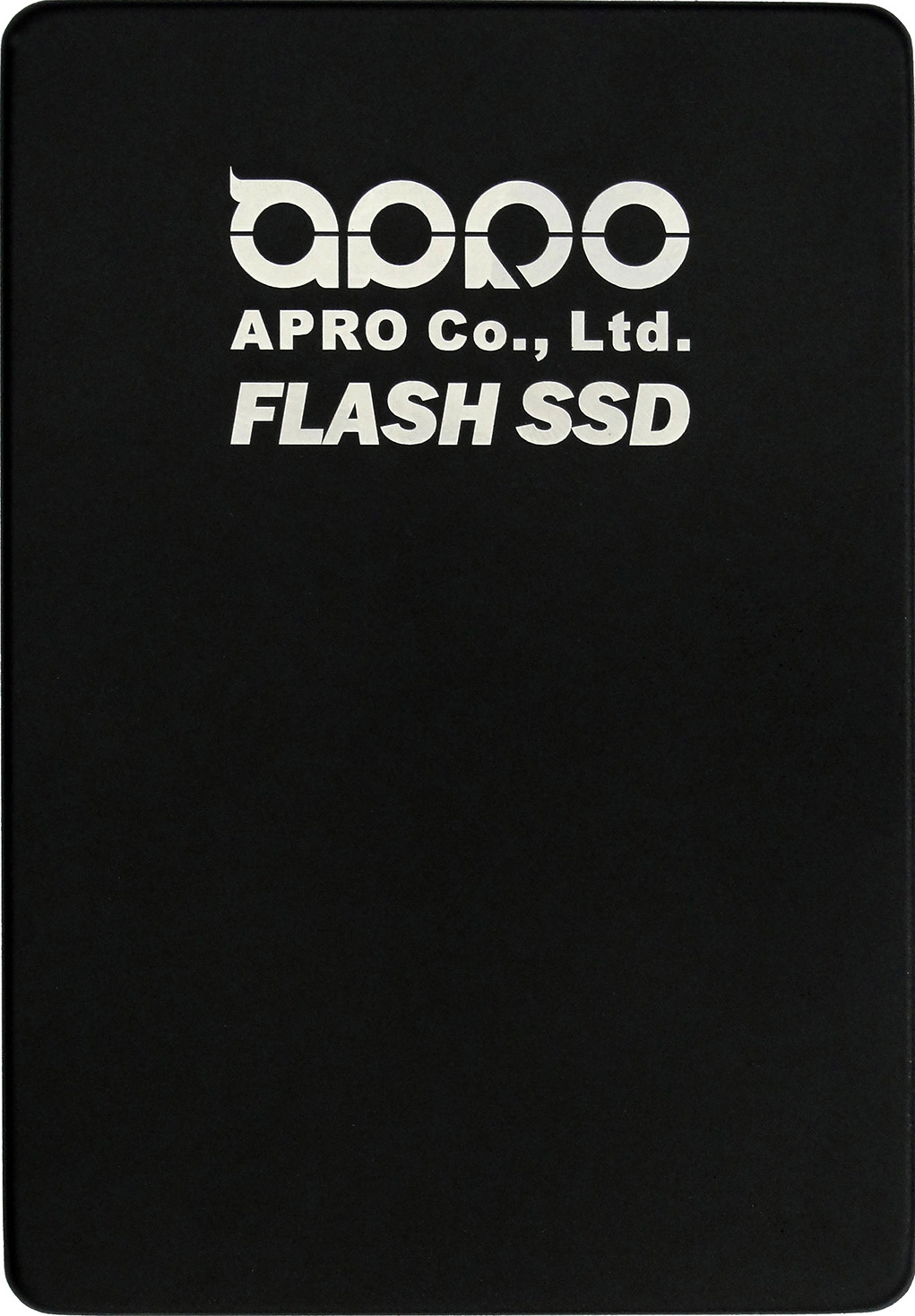

Model PHANES-LT PHANES-LR
Flash Type 3D-NAND 3D-NAND
Capacity 512GB~4TB 240GB~1,920GB
Compatibility SATA Revision 3.2 ATA-8 ACS4 command set SATA Revision 3.2 ATA-8 ACS4 command set
Data transfer rate SATA 1.5Gb/s, 3.0Gb/s, 6.0Gb/s SATA 1.5Gb/s, 3.0Gb/s, 6.0Gb/s
Sequential read (Max.) 550 MB/sec 550 MB/sec
Sequential write (Max.) 520 MB/sec 530 MB/sec
Operating temp. (STD/IND or WIDE) S : 0˚C~+70˚C/ W : -40˚C~+85˚C W : -40˚C~+85˚C
Power requirement +5 V ± 5% +5 V ± 5%
Wear-leveling Static Static and Dynamic
TBW Up to 7,353 TBW at 4TB Up to 2,953 TBW at 1,920GB
Erase counts 3,000 3,000
Dimension (WxLxH,mm) 69.9 x 100.00 x 7.00 69.9 x 100.00 x 7.00

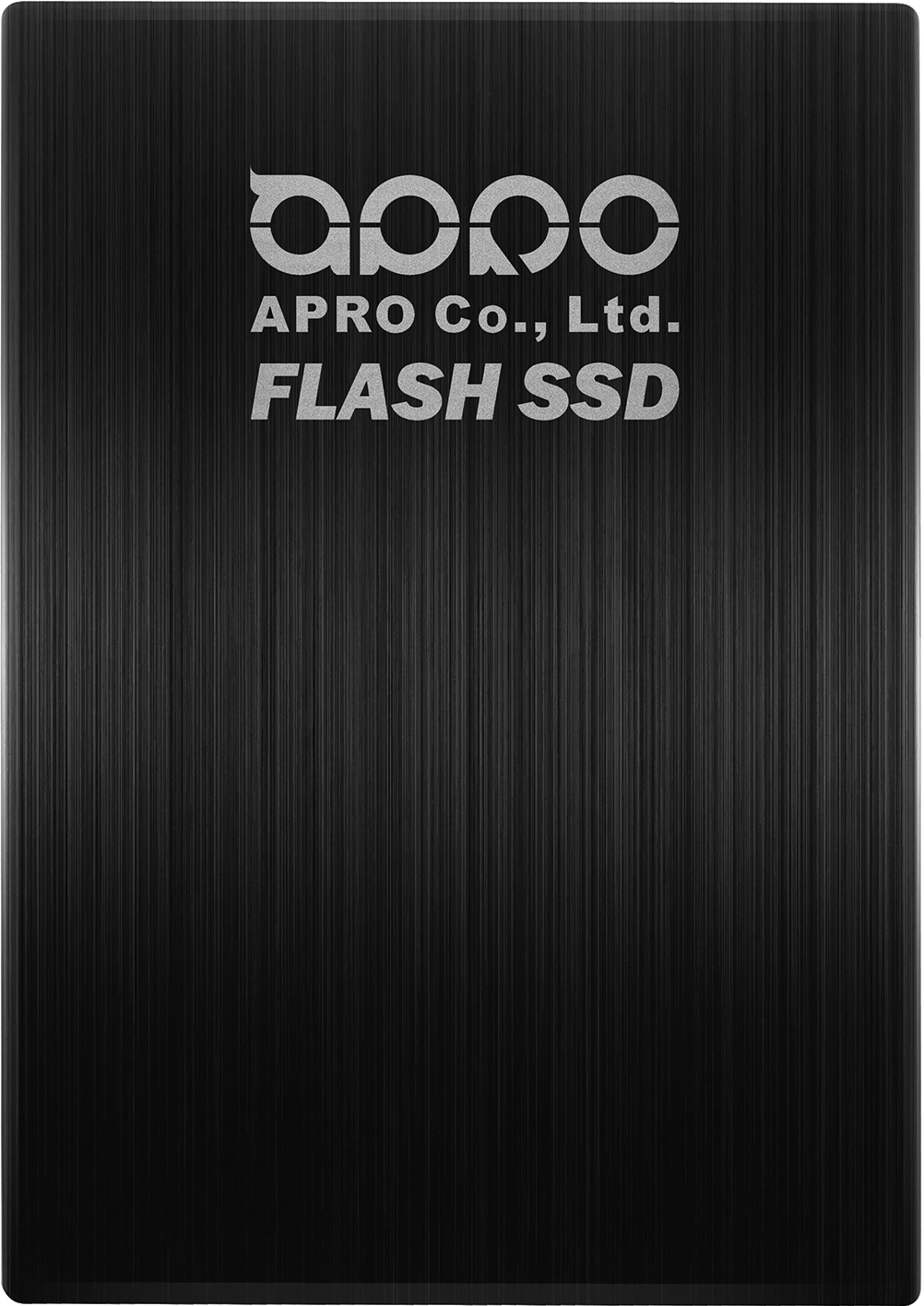

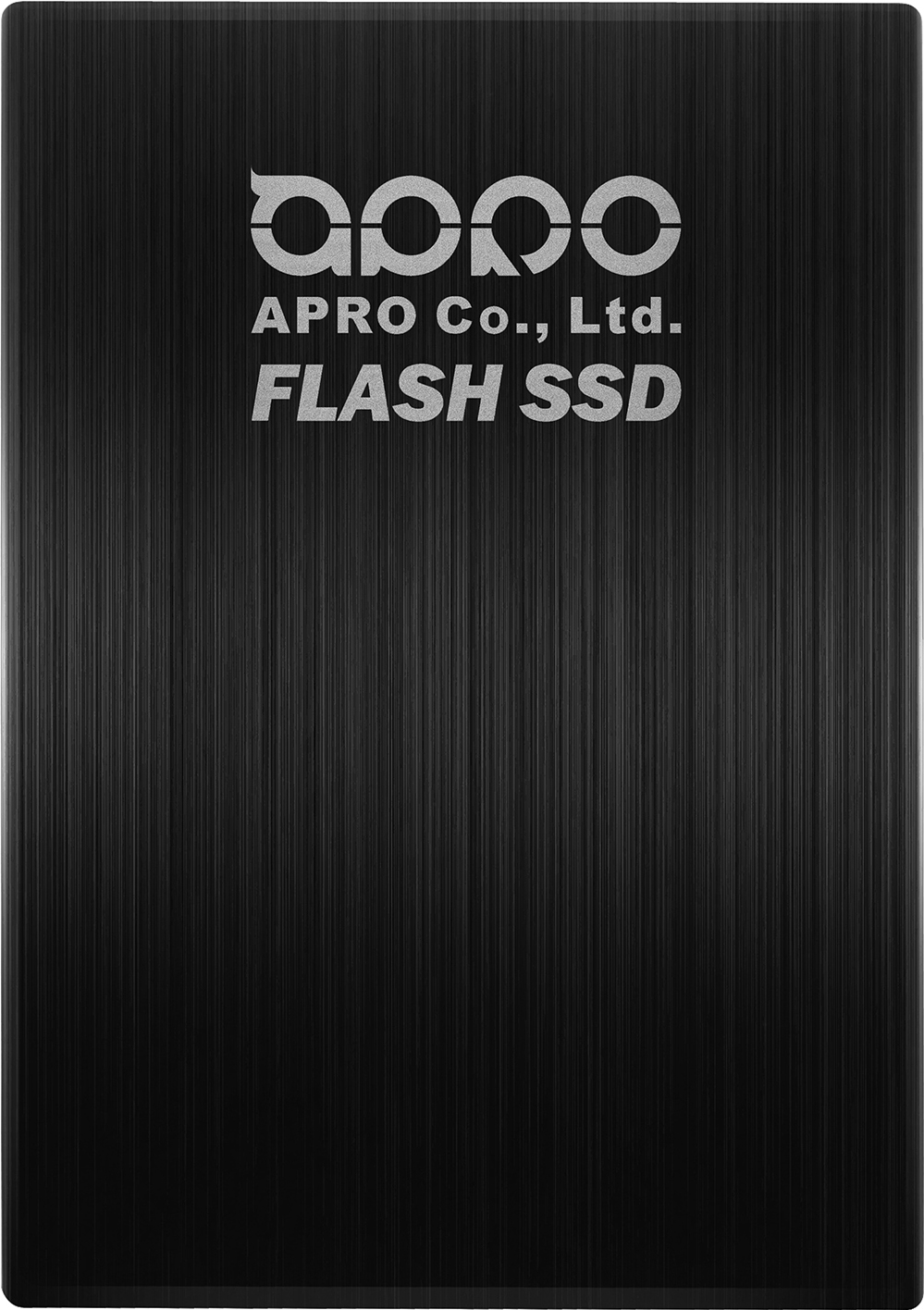

Model BON-III BON-III
Flash Type SLC MLC
Capacity 8GB~256GB 32GB~1TB
Compatibility SATA Revision 3.1 ATA-8 ACS2 command set SATA Revision 3.1 ATA-8 ACS2 command set
Data transfer rate SATA 1.5Gb/s, 3.0Gb/s, 6.0Gb/s SATA 1.5Gb/s, 3.0Gb/s, 6.0Gb/s
Sequential read (Max.) 173.4 MB/sec 561 MB/sec
Sequential write (Max.) 165.8 MB/sec 349 MB/sec
Operating temp. (STD/IND or WIDE) S : 0˚C~+70˚C/ I : -40˚C~+85˚C S : 0˚C~+70˚C/ W : -40˚C~+85˚C
Power requirement +5V ± 5% +5V ± 5%
Wear-leveling Global Global
TBW Up to 1,807.4 TBW at 256GB Up to 1,800 TBW at 1TB
Erase counts 60,000 3,000
Dimension (WxLxH,mm) 70.00 x 100.00 x 9.20 70.00 x 100.00 x 9.20

Silicon Power

  • Compliant with Serial ATA Revision 3.1 Standard with 6.0 Gb/s transfer rate
  • Equipped with advanced PFP technology
  • Supports Data Security AES Encryption (optional)
  • Feature connector supports Security Erase and Write Protect
  • Supports SP Toolbox SMART Health Monitoring System software
  • SATA DEVSLP for advanced power saving

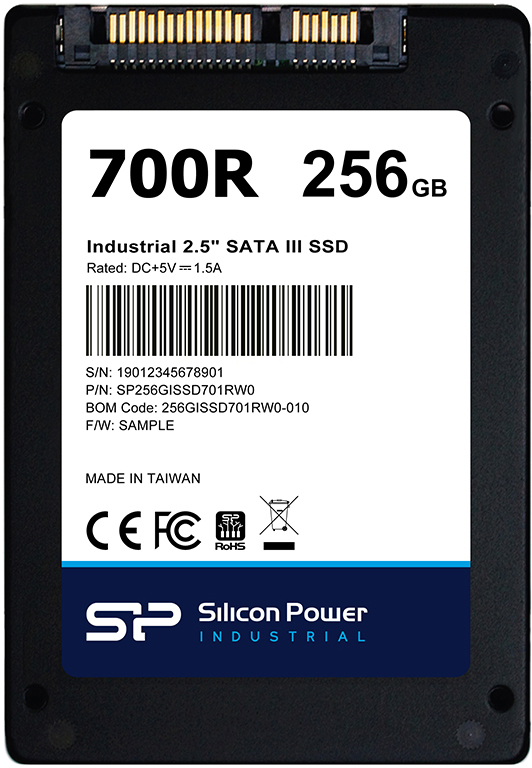

Model SSD700R SSD500R SSD300R SSD500S
Flash Technology SLC pSLC (MLC) MLC pSLC (MLC)
Interface SATA III/6.0Gbps SATA III/6.0Gbps SATA III/6.0Gbps SATA III/6.0Gbps
Capacity 8GB ~ 128GB 16GB ~ 512GB 16GB ~ 1TB 16GB ~ 512GB
Seq. Performance Read (max.) 190 MB/s 520 MB/s 520 MB/s 530 MB/s
Seq. Performance Write (max.) 180 MB/s 300 MB/s 450 MB/s 450 MB/s
Random 4K Read (IOPS max.) TBD 79.000 79.000 79.000
Random 4K Write (IOPS max.) TBD 73.000 73.000 73.000
Power Requirement DC 5.0V DC 5.0V DC 5.0V DC 5.0V
Power Consumption (max.) 295 mA 790 mA 790 mA 790 mA
Power Consumption (idle) 90 mA 90 mA 90 mA 90 mA
Dimension (mm) 100.4 x 69.9 x 6.8 100.4 x 69.9 x 6.8 100.4 x 69.9 x 6.8 100.4 x 69.9 x 6.8
MTBF ≒3,000,000 hrs ≒3,000,000 hrs ≒3,000,000 hrs ≒3,000,000 hrs
Temperature
Operating 0°C ～ 70°C: Standard SP***GISSD701RV0 SP***GISSD50*RV0 SP***GISSD30*RV0 SP***GISSD50*SV0
Operating -15°C ～85°C: Extended - - - -
Operating -40°C ～ 85°C: Wide SP***GISSD701RW0 SP***GISSD50*RW0 SP***GISSD30*RW0 SP***GISSD50*SW0
Key Features
Power Shield ● ● ● ●
Power Fail Protection ● ● ●
Feature Connecter By Request By Request By Request
TRIM ● ● ● ●
S.M.A.R.T ● ● ● ●
DEVSLP ● ● ● ●
Advanced Encryption Standard 256 ● ● ●
SP SMART Utility ● ● ● ●

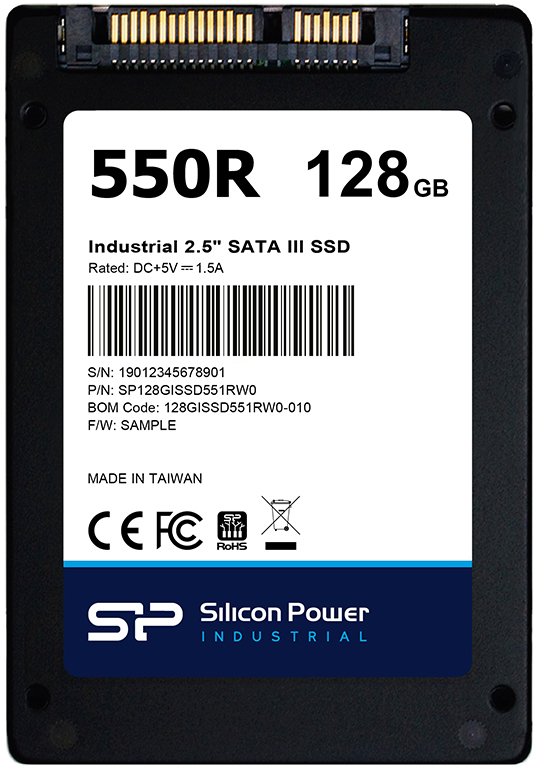

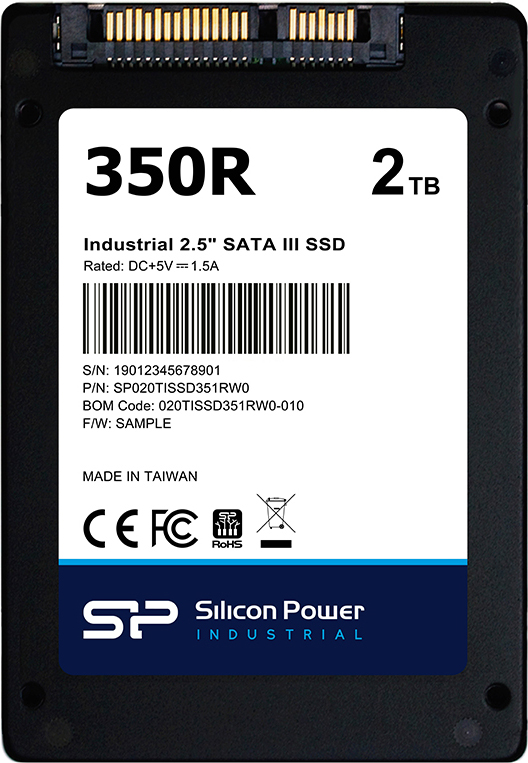

Model SSD300S SSD550R SSD350R SSD550S
Flash Technology MLC pSLC (3D TLC) 3D TLC pSLC (3D TLC)
Interface SATA III/6.0Gbps SATA III/6.0Gbps SATA III/6.0Gbps SATA III/6.0Gbps
Capacity 16GB ~ 1TB 32GB ~ 512GB 32GB ~ 2TB 32GB ~ 512GB
Seq. Performance Read (max.) 530 MB/s 560 MB/s 560 MB/s 560 MB/s
Seq. Performance Write (max.) 450 MB/s 520 MB/s 520 MB/s 520 MB/s
Random 4K Read (IOPS max.) 79.000 95.000 95.000 95.000
Random 4K Write (IOPS max.) 73.000 91.000 91.000 91.000
Power Requirement DC 5.0V DC 5.0V DC 5.0V DC 5.0V
Power Consumption (max.) 790 mA 700 mA 700 mA 700 mA
Power Consumption (idle) 90 mA 110 mA 110 mA 110 mA
Dimension (mm) 100.4 x 69.9 x 6.8 100.4 x 69.9 x 6.8 100.4 x 69.9 x 6.8 100.4 x 69.9 x 6.8
MTBF ≒3,000,000 hrs ≒3,000,000 hrs ≒3,000,000 hrs ≒3,000,000 hrs
Temperature
Operating 0°C ～ 70°C: Standard SP***GISSD30*SV0 SP***GISSD55*RV0 SP***GISSD35*RV0 SP***GISSD55*SV0
Operating -15°C ～85°C: Extended SP***GISSD30*SE0 - - -
Operating -40°C ～ 85°C: Wide SP***GISSD30*SW0 SP***GISSD55*RW0 SP***GISSD35*RW0 SP***GISSD55*SW0
Key Features
Power Shield ● ● ● ●
Power Fail Protection ● ●
Feature Connecter By Request By Request
TRIM ● ● ● ●
S.M.A.R.T ● ● ● ●
DEVSLP ● ● ● ●
Advanced Encryption Standard 256 ● ● ●
SP SMART Utility ● ● ● ●

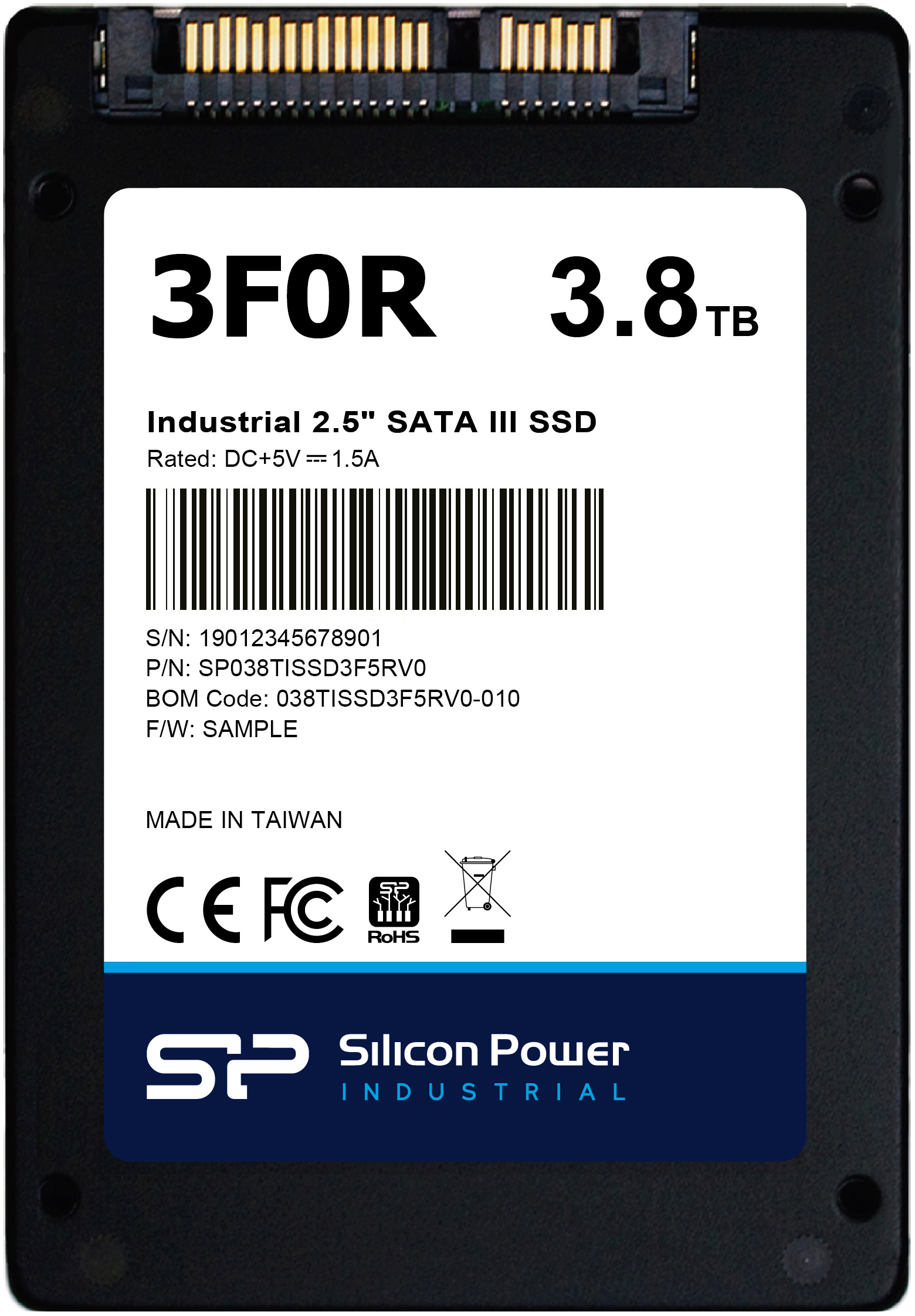

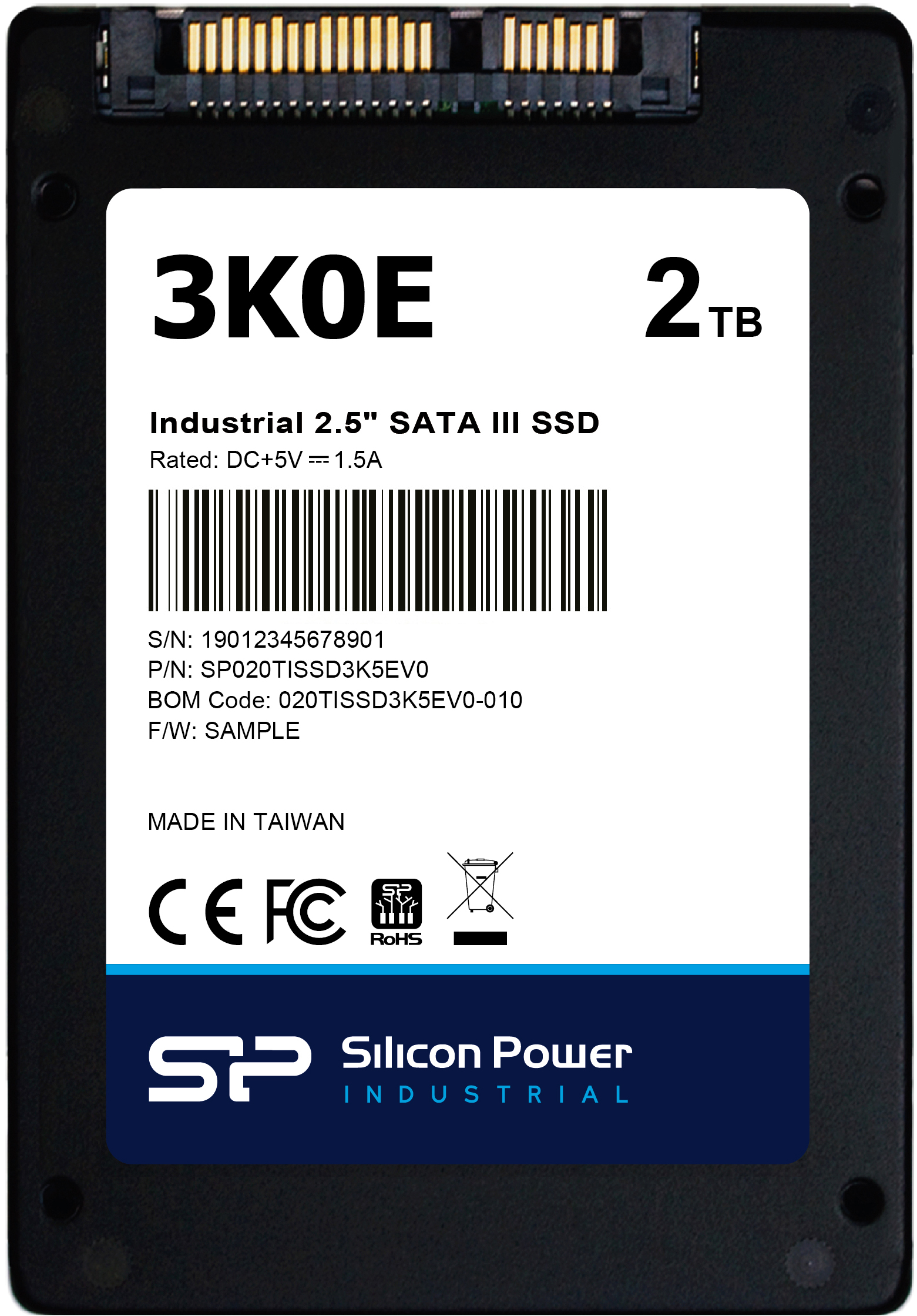

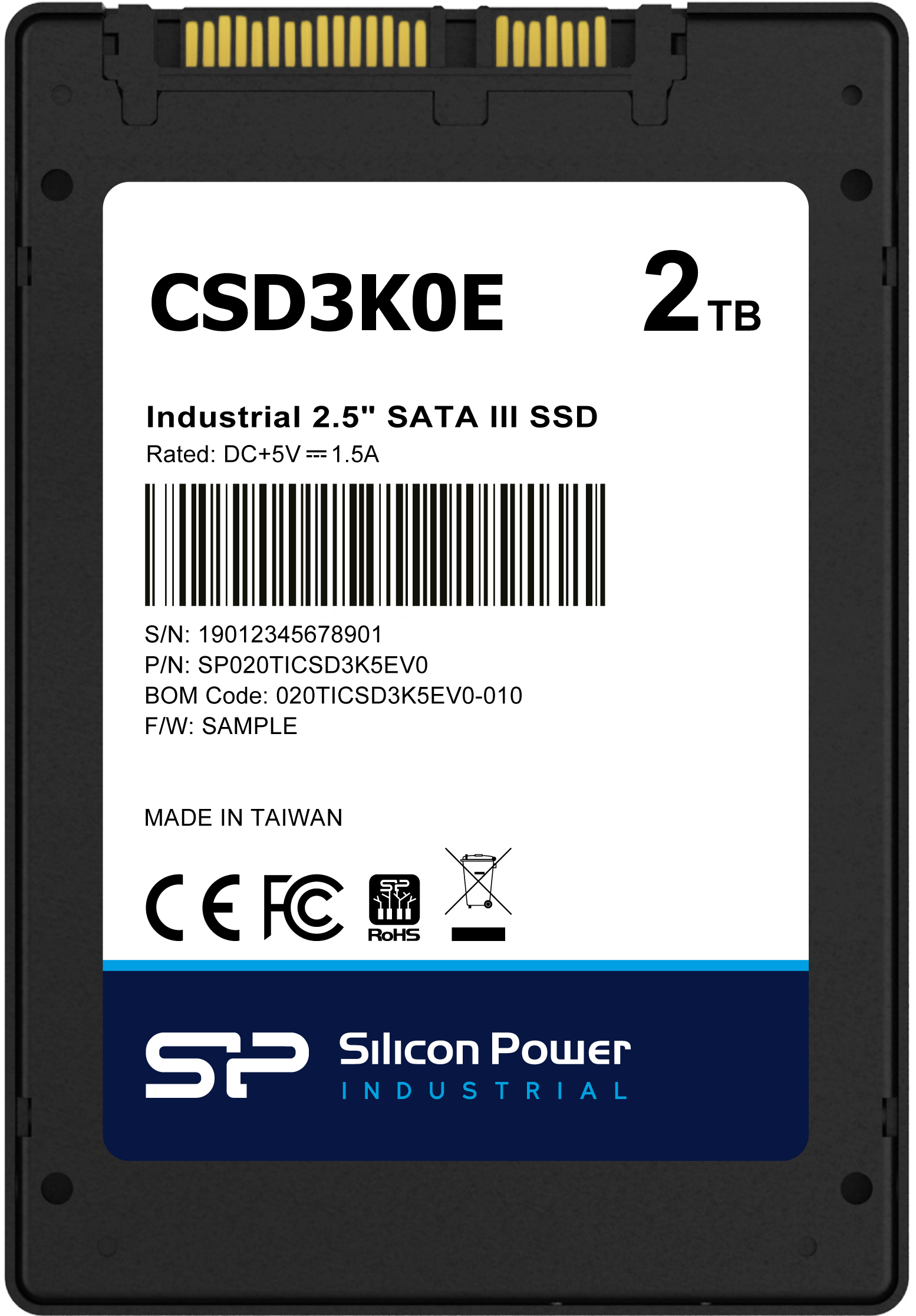

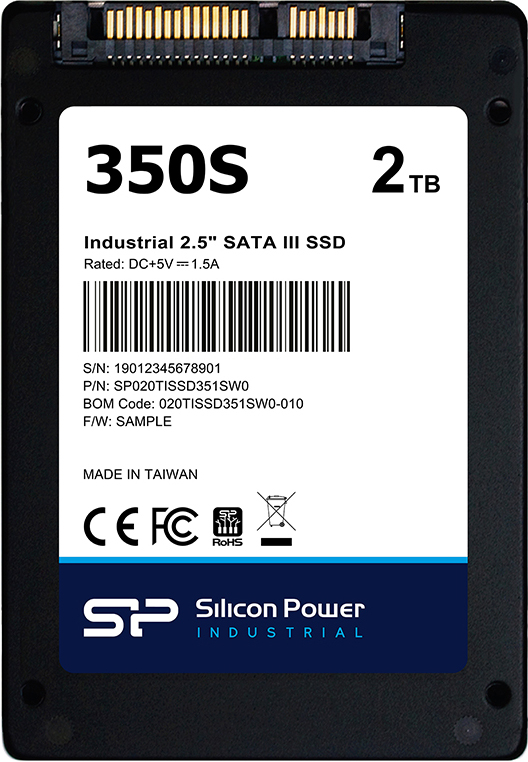

Model SSD350S SSD3K0E SSD3F0S SSD3F0R
Flash Technology 3D TLC 3D TLC 3D TLC 3D TLC
Interface SATA III/6.0Gbps SATA III/6.0Gbps SATA III/6.0Gbps SATA III/6.0Gbps
Capacity 32GB ~ 2TB 64GB ~ 1TB 256GB ~ 8TB 256GB ~ 8TB
Seq. Performance Read (max.) 560 MB/s 540 MB/s 550 MB/s 550 MB/s
Seq. Performance Write (max.) 520 MB/s 520 MB/s 520 MB/s 520 MB/s
Random 4K Read (IOPS max.) 95.000 29.000 98.000 98.000
Random 4K Write (IOPS max.) 91.000 85.000 88.000 88.000
Power Requirement DC 5.0V DC 5.0V DC 5.0V DC 5.0V
Power Consumption (max.) 700 mA 340 mA 600 mA 750 mA
Power Consumption (idle) 110 mA 85 mA 240 mA 250 mA
Dimension (mm) 100.4 x 69.9 x 6.8 100.4 x 69.9 x 6.8 100.4 x 69.9 x 6.8 100.4 x 69.9 x 6.8
MTBF ≒3,000,000 hrs ≒3,000,000 hrs ≒3,000,000 hrs ≒3,000,000 hrs
Temperature
Operating 0°C ～ 70°C: Standard SP***GISSD35*SV0 SP***GISSD3K*EV0 SP***GISSD3F*SV0 SP***GISSD3F*RV0
Operating -15°C ～85°C: Extended - - - -
Operating -40°C ～ 85°C: Wide SP***GISSD35*SW0 - SP***GISSD3F*SW0 SP***GISSD3F*RW0
Key Features
Power Shield ● ● ● ●
Power Fail Protection ●
Feature Connecter By Request
TRIM ● ● ● ●
S.M.A.R.T ● ● ● ●
DEVSLP ● ● ●
Advanced Encryption Standard 256 ● ● ●
SP SMART Utility ● ● ● ●
