Industrial CFast CARD

Apro

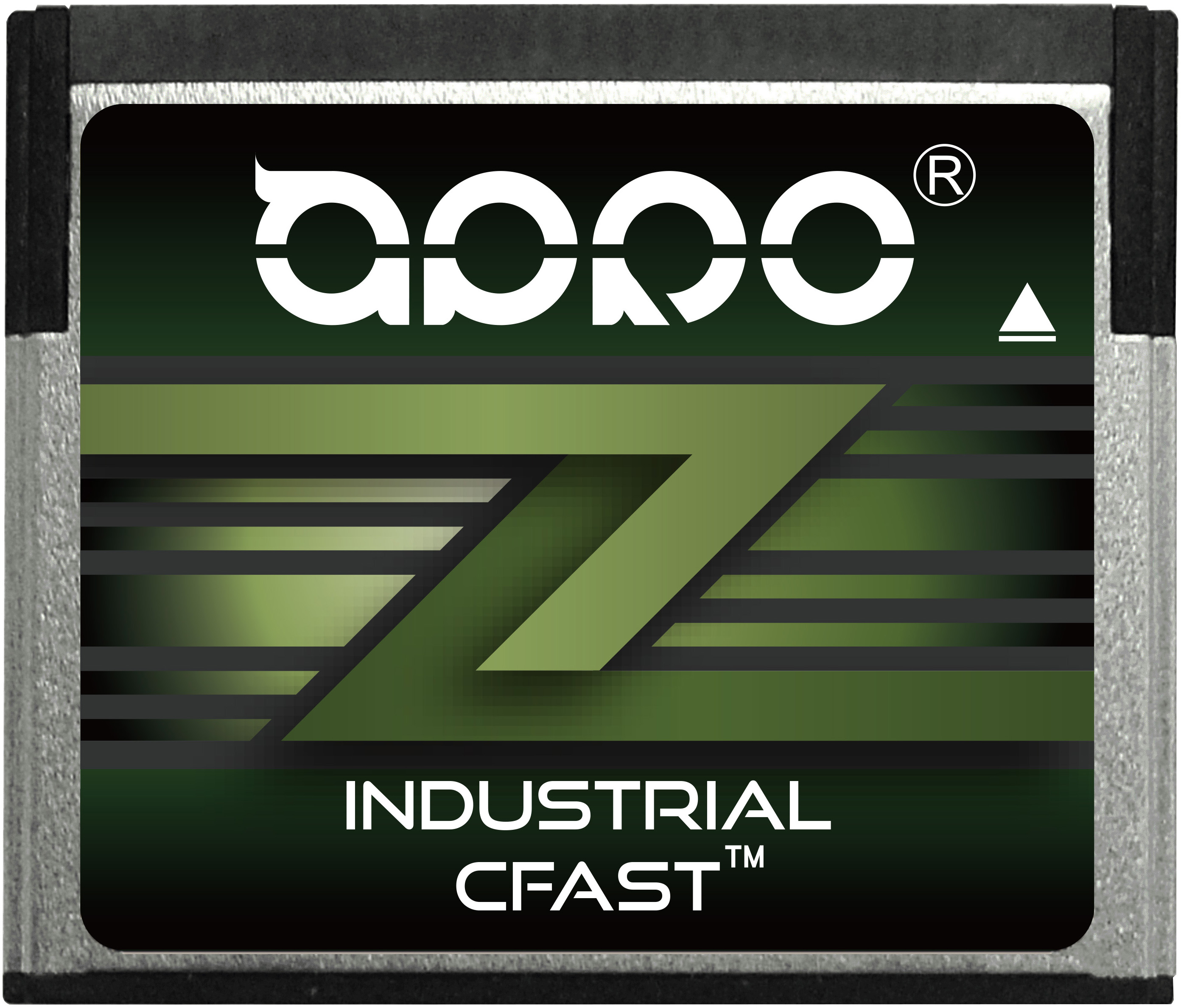

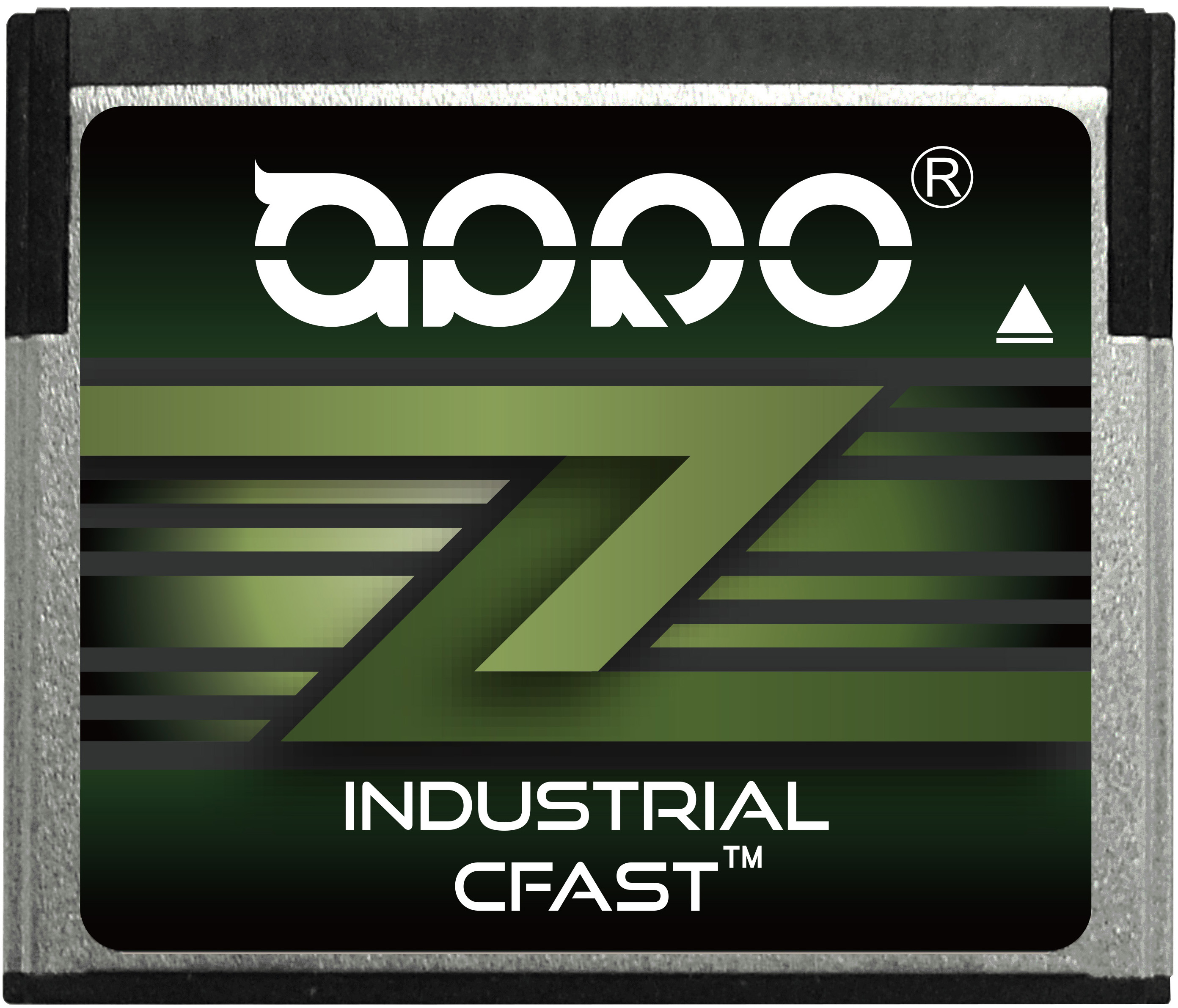

Model HERMES-I PHANES-K HERMES-J PHANES-K
Flash Type SLC SLC MLC MLC
Capacity 4GB~64GB 8GB~32GB 4GB~256GB 32GB~128GB
Compatibility SATA Revision 3.1 CFast™ Specification v2.0 ATA-8 command set SATA Revision 3.2 CFast™ Specification v2.0 ATA-8 ACS4 command set SATA Revision 3.1 CFast™ Specification v2.0 ATA-8 command set SATA Revision 3.2 CFast™ Specification v2.0 ATA-8 ACS4 command set
Data transfer rate SATA 1.5Gb/s, 3.0Gb/s, 6.0Gb/s SATA 1.5Gb/s, 3.0Gb/s, 6.0Gb/s SATA 1.5Gb/s, 3.0Gb/s, 6.0Gb/s SATA 1.5Gb/s, 3.0Gb/s, 6.0Gb/s
Sequential read (Max.) 401.9 MB/sec 510 MB/sec 229 MB/sec 555 MB/sec
Sequential write (Max.) 215.2 MB/sec 305 MB/sec 131 MB/sec 465 MB/sec
Operating temp. (STD/IND or WIDE) S : 0˚C~+70˚C/ I : -40˚C~+85˚C S : 0˚C~+70˚C/ I : -40˚C~+85˚C S : 0˚C~+70˚C/ W : -40˚C~+85˚C S : 0˚C~+70˚C/ W : -40˚C~+85˚C
Power requirement +3.3 V ± 5% +3.3 V ± 5% +3.3 V ± 5% +3.3 V ± 5%
Wear-leveling Static Static and Dynamic Static Static and Dynamic
TBW Up to 108 TBW at 2GB Up to 375 TBW at 64GB Up to 325 TBW at 32GB Up to 76.8 TBW at 256GB Up to 87 TBW at 128GB
Erase counts 60,000 60,000 3,000 3,000
Dimension (WxLxH,mm) 42.8 x 36.4 x 3.5 42.8 x 36.4 x 3.5 42.8 x 36.4 x 3.5 42.8 x 36.4 x 3.5

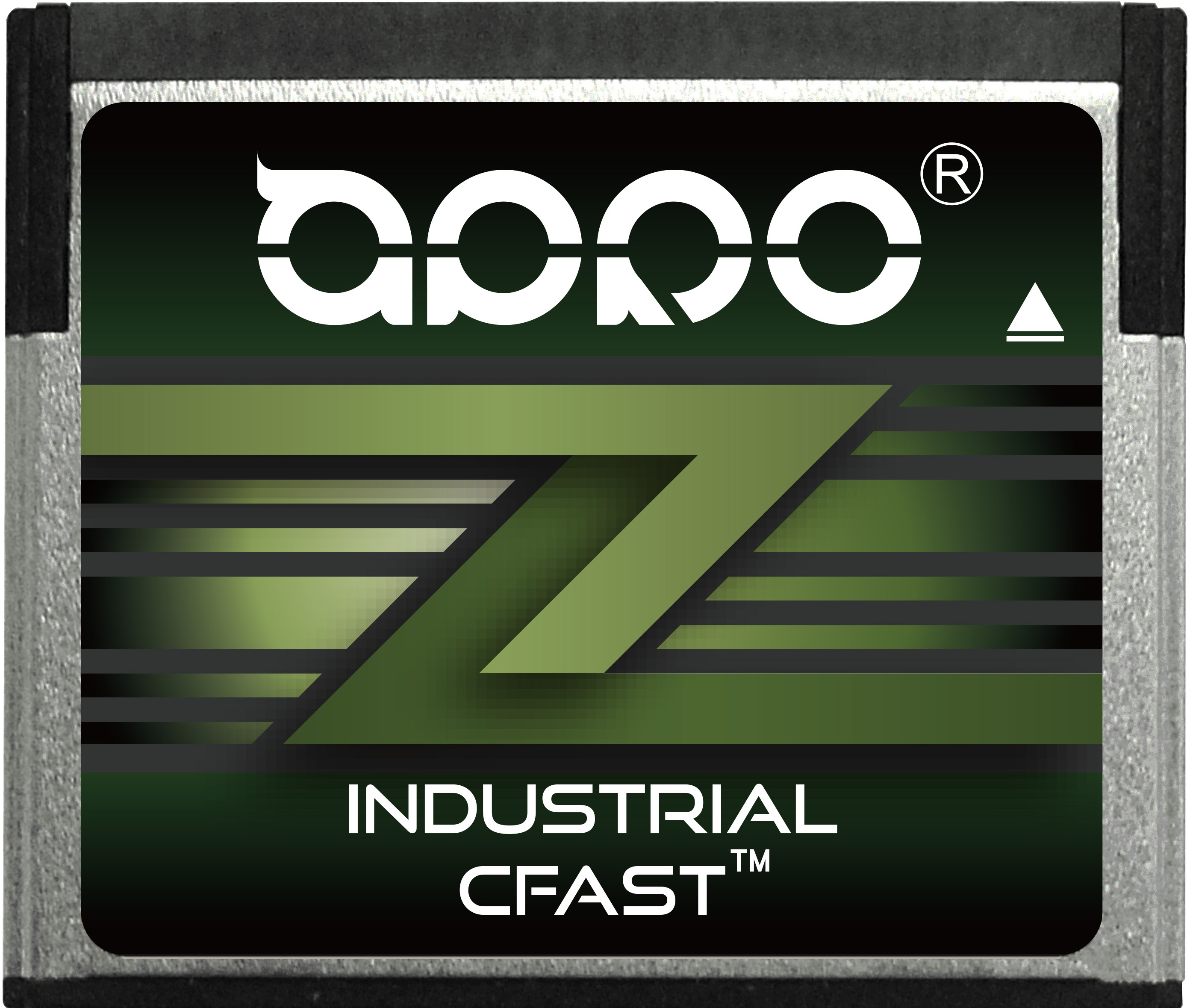

Model MUSE-D PHANES-K PHANES-K
Flash Type MLC aSLC 3D-NAND
Capacity 8GB~256GB 16GB~64GB 64GB~128GB
Compatibility SATA Revision 3.1 CFast™ Specification v2.0 ATA-8 command set SATA Revision 3.2 CFast™ Specification v2.0 ATA-8 ACS4 command set SATA Revision 3.2 CFast™ Specification v2.0 ATA-8 ACS4 command set
Data transfer rate SATA 1.5Gb/s, 3.0Gb/s, 6.0Gb/s SATA 1.5Gb/s, 3.0Gb/s, 6.0Gb/s SATA 1.5Gb/s, 3.0Gb/s, 6.0Gb/s
Sequential read (Max.) 530 MB/sec 558 MB/sec 550 MB/sec
Sequential write (Max.) 210 MB/sec 463 MB/sec 450 MB/sec
Operating temp. (STD/IND or WIDE) S : 0˚C~+70˚C/ W : -40˚C~+85˚C S : 0˚C~+70˚C/ W : -40˚C~+85˚C S : 0˚C~+70˚C/ W : -40˚C~+85˚C
Power requirement +3.3 V ± 5% +3.3 V ± 5% +3.3 V ± 5%
Wear-leveling Static Static and Dynamic Static and Dynamic
TBW Up to 416 TBW at 256GB Up to 215 TBW at 64GB Up to 75 TBW at 128GB
Erase counts 3,000 20,000 3,000
Dimension (WxLxH,mm) 42.8 x 36.4 x 3.5 42.8 x 36.4 x 3.5 42.8 x 36.4 x 3.5

Silicon Power

  • CFast Type I standard form factor
  • Compliant with Serial ATA Revision 3.1 Standard with 6.0 Gb/s transfer rate
  • Supports SP Toolbox SMART Health Monitoring System software

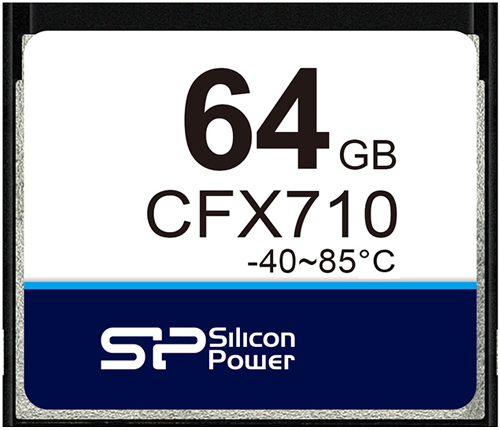

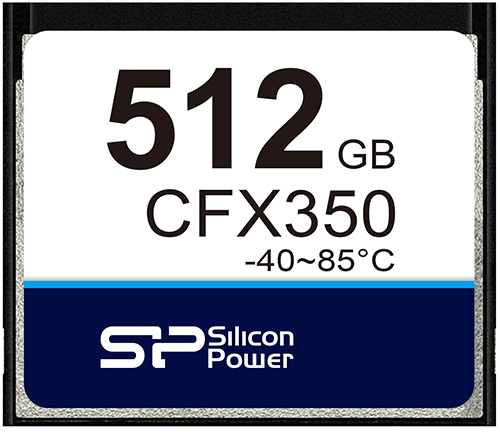

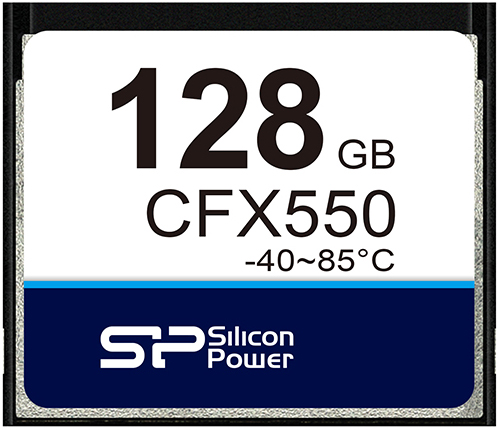

Model CFX710 CFX550 CFX510 CFX350
Flash Technologie SLC pSLC (3D TLC) pSLC (MLC) 3D TLC
Interface CFast 2.0/SATA III/6.0Gbps CFast 2.0/SATA III/6.0Gbps CFast 2.0/SATA III/6.0Gbps CFast 2.0/SATA III/6.0Gbps
Capacity 4GB ~ 64GB 32GB ~ 128GB 8GB ~ 256GB 64GB ~ 512GB
Seq. Performance Read (max.) 440 MB/s 540 MB/s 540 MB/s 530 MB/s
Seq. Performance Write (max.) 360 MB/s 450 MB/s 450 MB/s 390 MB/s
Random 4K Read (IOPS max.) 35000 74000 35000 74.000
Random 4K Write (IOPS max.) 29000 53000 35000 53.000
Power Requirement DC 3.3V DC 3.3V DC 3.3V DC 3.3V
Power Consumption (max.) 400 mA 560 mA 710 mA 560 mA
Power Consumption (idle) 110 mA 110 mA 120 mA 110 mA
Dimension (mm) 36.4 x 42.8 x 3.6 36.4 x 42.8 x 3.6 36.4 x 42.8 x 3.6 36.4 x 42.8 x 3.6
MTBF ≒2,000,000 hrs ≒2,000,000 hrs ≒2,000,000 hrs ≒2,000,000 hrs
Temperature
Operating 0°C ~ 70°C: Standard SP***GICFX711NV0 SP***GICFX55*SV0 SP***GICFX51*NV0 SP***GICFX35*SV0
Operating -15°C ~85°C: Extended SP***GICFX55*SE0 SP***GICFX35*SE0
Operating -40°C ~ 85°C: Wide SP***GICFX711NW0 SP***GICFX55*SW0 SP***GICFX51*NW0 SP***GICFX35*SW0
Key Features
Write Protect Switch By Request By Request By Request By Request
Power Shield
Power Fail Protection By Request By Request
TRIM
S.M.A.R.T
DEVSLP
SP SMART Utility

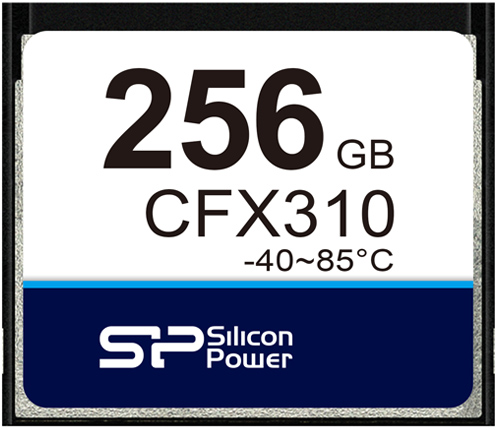

Model CFX310N CFX310R
Flash Technologie MLC MLC
Interface CFast 2.0/SATA III/6.0Gbps CFast 2.0/SATA III/6.0Gbps
Capacity 8GB ~ 512GB 16GB ~ 256GB
Seq. Performance Read (max.) 530 MB/s 480 MB/s
Seq. Performance Write (max.) 330 MB/s 320 MB/s
Random 4K Read (IOPS max.) 32000 32000
Random 4K Write (IOPS max.) 32000 32000
Power Requirement DC 3.3V DC 3.3V
Power Consumption (max.) 710 mA 700 mA
Power Consumption (idle) 120 mA 110 mA
Dimension (mm) 36.4 x 42.8 x 3.6 36.4 x 42.8 x 3.6
MTBF ≒2,000,000 hrs ≒2,000,000 hrs
Temperature
Operating 0°C ~ 70°C: Standard SP***GICFX31*NV* SP***GICFX31*RV*
Operating -15°C ~85°C: Extended SP***GICFX31*NE*
Operating -40°C ~ 85°C: Wide SP***GICFX31*NW* SP***GICFX31*RW*
Key Features
Write Protect Switch By Request By Request
Power Shield
Power Fail Protection By Request
TRIM
S.M.A.R.T
DEVSLP
SP SMART Utility
