Industrial 2.5" IDE SSD & IDE Flash Module SSD

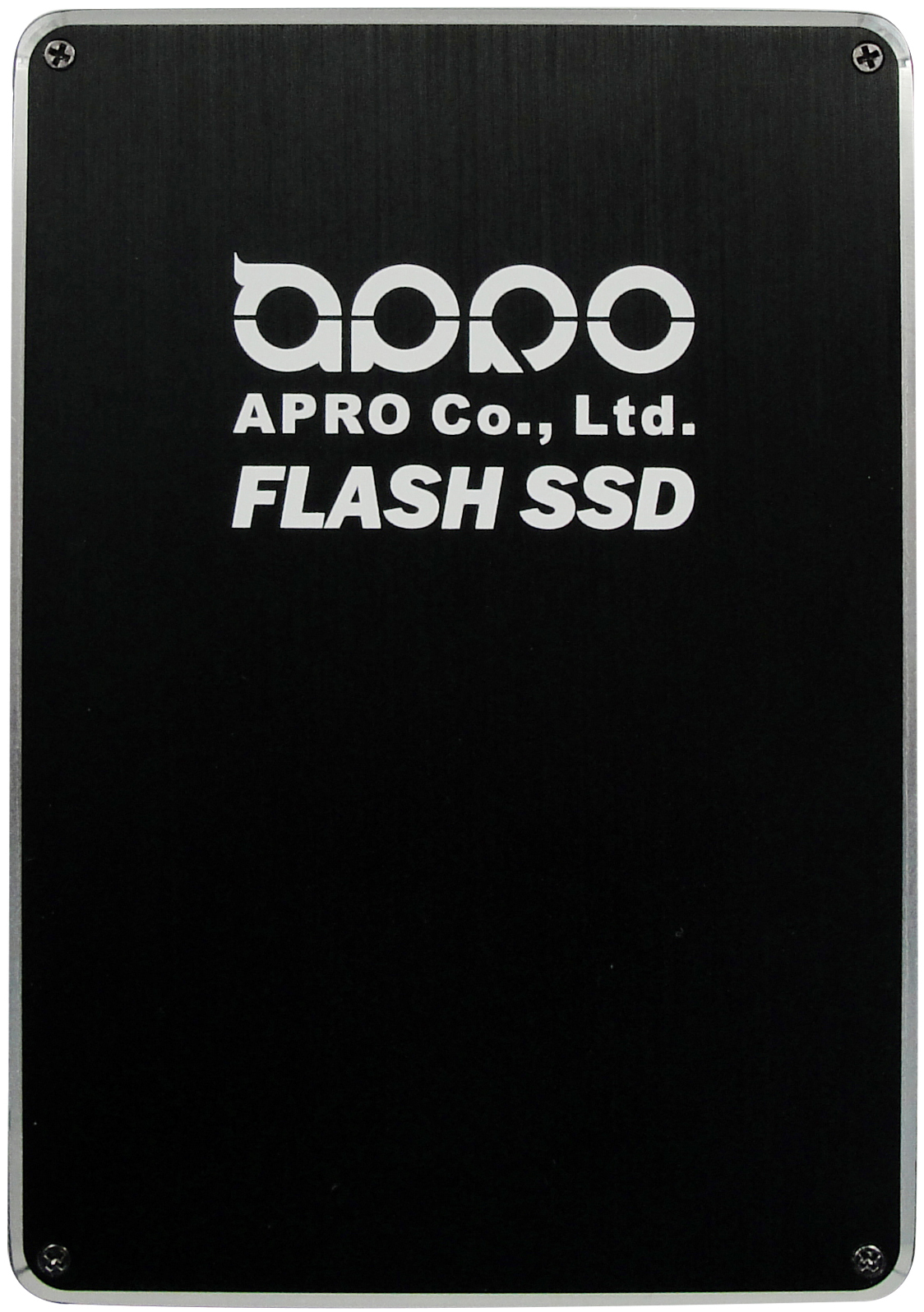

Apro

Model HERMIT-F HERCULES-Q HERCULES-Q
Flash Type SLC SLC MLC
Capacity 128MB~64GB 8GB~128GB 16GB~512GB
Compatibility ATA/ATAPI-7 and True IDE mode ATA/ATAPI-8 and True IDE mode ATA/ATAPI-8 and True IDE mode
Master/Slave By jumper By jumper By jumper
Data transfer rate PIO 2~6, MWDMA 0~4, UDMA 0~6 PIO 0~4, MWDMA 0~2, UDMA 0~6 PIO 0~4, MWDMA 0~2, UDMA 0~6
Sequential read (Max.) 62.2 MB/sec 106.1 MB/sec 103.1 MB/sec
Sequential write (Max.) 57.4 MB/sec 98.3 MB/sec 100.2 MB/sec
Operating temp. (STD/IND or WIDE) S : 0˚C~+70˚C/ I : -40˚C~+85˚C S : 0˚C~+70˚C/ I : -40˚C~+85˚C S : 0˚C~+70˚C/ W : -40˚C~+85˚C
Power requirement +5V ± 5% +5V ± 5% +5V ± 5%
Wear-leveling Static, Dynamic and Global Global Global
TBW Up to 451.7 TBW at 64GB Up to 628 TBW at 128GB Up to 150 TBW at 512GB
Erase counts 60,000 60,000 3,000
Dimension (WxLxH,mm) 70.10 x 100.00 x 8.80 70.10 x 100.00 x 8.80 70.10 x 100.00 x 8.80

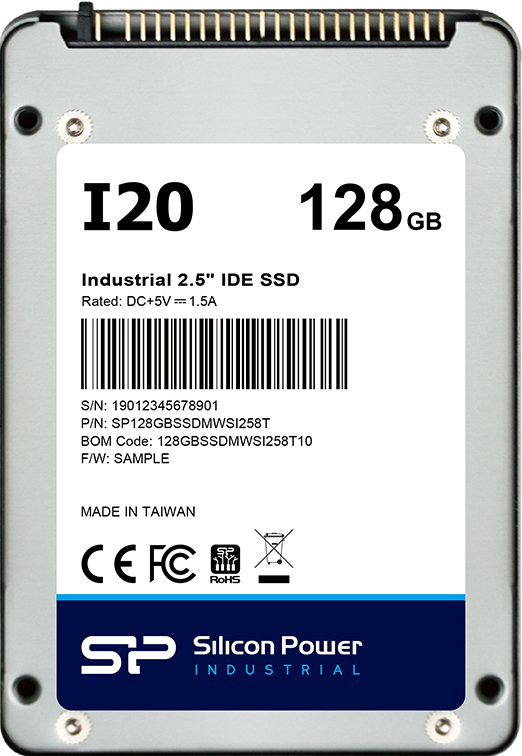

Silicon Power

2.5" IDE SSD

  • 2.5" standard form factor with 44 Pins PATA Standard Interface connector
  • Compliant with ATA/ATAPI-8 Standard command protocol
  • Supports SMART feature command set
  • Supports 28/48 bit LBA addressing

IDE SSD

  • ATA/ATAPI-7 command compliance
  • Support PIO mode 4, Multi-word DMA mode 2, and Ultra DMA mode 5
  • Supports SMART feature command set
Model IDE SSD-I20 IDE SSD-I20
Flash Technologie SLC MLC
Interface IDE / PATA IDE / PATA
Capacity 1GB ~ 128GB 32GB ~ 128GB
Seq. Performance Read (max.) 115 MB/s 110 MB/s
Seq. Performance Write (max.) 95 MB/s 70 MB/s
Random 4K Read (IOPS max.) - -
Random 4K Write (IOPS max.) - -
Power Requirement DC 5.0V DC 5.0V
Power Consumption (max.) 420 mA 195 mA
Power Consumption (idle) 0.7 mA 0.7 mA
Dimension (mm) 100.5 x 69.9 x 9.5 100.5 x 69.9 x 9.5
MTBF ≒2,000,000 hrs ≒2,000,000 hrs
Temperature
Operating 0°C ~ 70°C: Standard SP***GBSSDMMSI25*T SP***GBSSDMMNI25*T
Operating -40°C ~ 85°C: Wide SP***GBSSDMWSI25*T
Key Features
Power Shield
S.M.A.R.T
Write Protection
SP SMART Utility
