Industrial M.2 2260 SATA SSD

Silicon Power

  • Compliant with Serial ATA Revision 3.1 standard with 6.0 Gb/s transfer rate
  • Support SP Toolbox SMART health monitoring software
  • SATA DEVSLP for advanced power saving - Compliant with Serial ATA Revision 3.1 standard with 6.0 Gb/s transfer rate
  • Support SP Toolbox SMART health monitoring software
  • SATA DEVSLP for advanced power saving

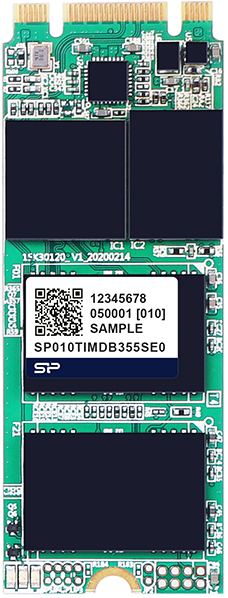

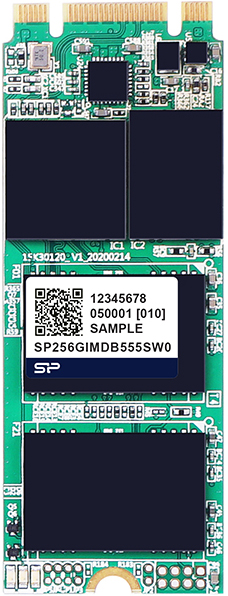

Model MDB550S MDB350S
Flash Technology pSLC (3D TLC) 3D TLC
Interface SATA III/6.0Gbps SATA III/6.0Gbps
Capacity 16GB~256GB 64GB ~ 1TB
Seq. Performance Read (max.) 560 MB/s 560 MB/s
Seq. Performance Write (max.) 520 MB/s 520 MB/s
Random 4K Read (IOPS max.) 78.000 78.000
Random 4K Write (IOPS max.) 86.000 86.000
Power Requirement DC 3.3V DC 3.3V
Power Consumption (max.) 580 mA 580 mA
Power Consumption (idle) 110 mA 110 mA
Dimension (mm) 60.0 x 22.0 x 3.5 mm 60.0 x 22.0 x 3.5 mm
MTBF ≒2,000,000 hrs ≒2,000,000 hrs
|5 Temperature
Operating 0°C ~ 70°C: Standard SP***GIMDB55*SV0 SP***GIMDB35*SV0
Operating -15°C ~85°C: Extended SP***GIMDB55*SE0 SP***GIMDB35*SE0
Operating -40°C ~ 85°C: Wide SP***GIMDB55*SW0 SP***GIMDB35*SW0
|5 Key Features
Power Shield
TRIM
S.M.A.R.T
DEVSLP
Advanced Encryption Standard 256
SP SMART Utility
