Industrial SD CARD

Apro

Eigenschaften

  • Industrial Grade SD / microSDCards 128MB bis 2GB
  • Industrial Grade SDHC / microSDHC Cards 4GB bis 256GB
  • Operativer Temperaturbereich von -40°C bis +85°C
  • ECC, globales Wear-Leveling, BBM und S.M.A.R.T.
  • SD(HC) oder SPI-Mode

Beschreibung

APROs High-Speed Industrial Grade SD bzw. Industrial Grade microSD Cards mit Kapazitäten von 128MB bis 256GB in Verbindung mit SLC / MLC / aSLC/ 3D NANDFlash sichert hierbei die für anspruchsvolle Applikationen geforderte Zuverlässigkeit und Performance der Speicherkarten.ECC, Sudden-Power-Down Schutzmechanismen, Wear-Leveling, S.M.A.R.T. und weitere Funktionen garantieren hierbei die Sicherheit Ihrer Daten auf den Industrial Grade SD Cards.

Weitere Eigenschaften der Industrial Grade SD / microSD Cards

  • Langzeitverfügbarkeit (fixed BOM), gleichbleibende Komponenten bis hin zur Firmware-Version der Industrial Grade SD Card
  • Keine mechanischen Bauteile (Solid-State Technologie). Damit schock- und vibrationsresistent verschleißfrei und robust. Niedriger Stromverbrauch, schnelle Zugriffzeiten und keinerlei Geräuschentwicklung
  • Die Industrial Grade SD Cards sind CE, REACH und RoHS konform

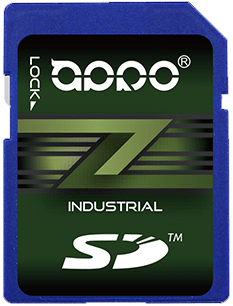

Model THEMIS-A PHANES-F
Flash Type SLC SLC
Capacity 128MB~32GB 128MB~32GB
Compatibility SDA Specifications V1.01 / V1.1/ V2.0 / V3.0 SDA3.0
SDC 128MB to 2GB: FAT file system 128MB to 2GB: FAT file system
Data transfer rate Class-10 Class-10
Sequential read (Max.) 22.1 MB/sec 21.9 MB/sec
Sequential write (Max.) 16.8 MB/sec 20 MB/sec
Operating temp. (STD/IND or WIDE) I : -40˚C~+85˚C I : -40˚C~+85˚C
Power requirement 3.3V ± 5% 3.3V ± 10%
Wear-leveling Global Static & Dynamic
Erase counts 60,000 60,000
Dimension (WxLxH,mm) 24.0 x 32.0 x 2.1 24.0 x 32.0 x 2.1 24.0 x 32.0 x 2.1

Silicon Power

  • Compliant with SD Memory Card Specification 3.0 and backwards-compatible with 2.0, 1.1, and 1.01
  • Suitable for Embedded system OS boot up and event log applications
  • Supports SP Toolbox SMART Health Monitoring System software
  • Supports SD and SPI modes

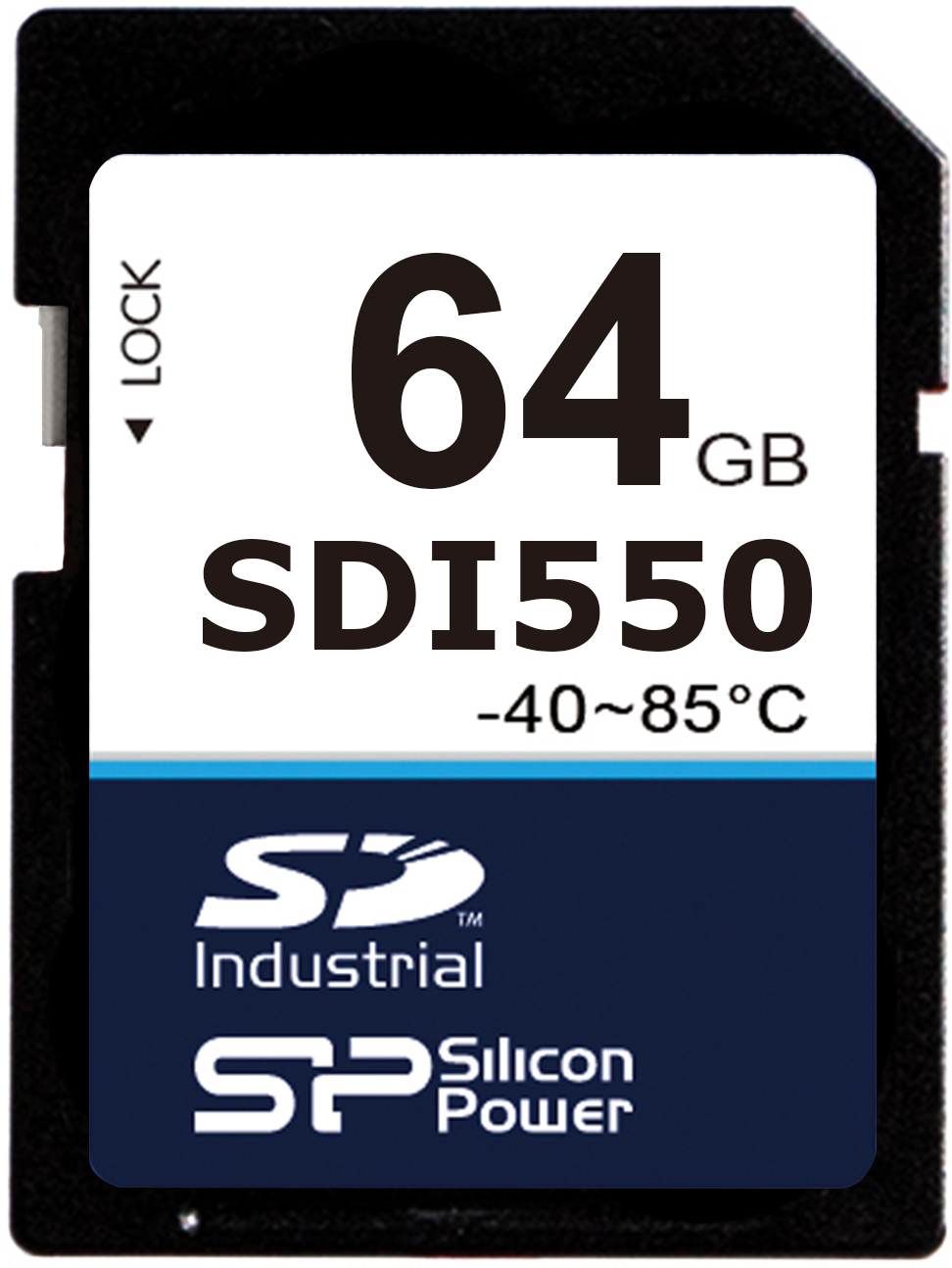

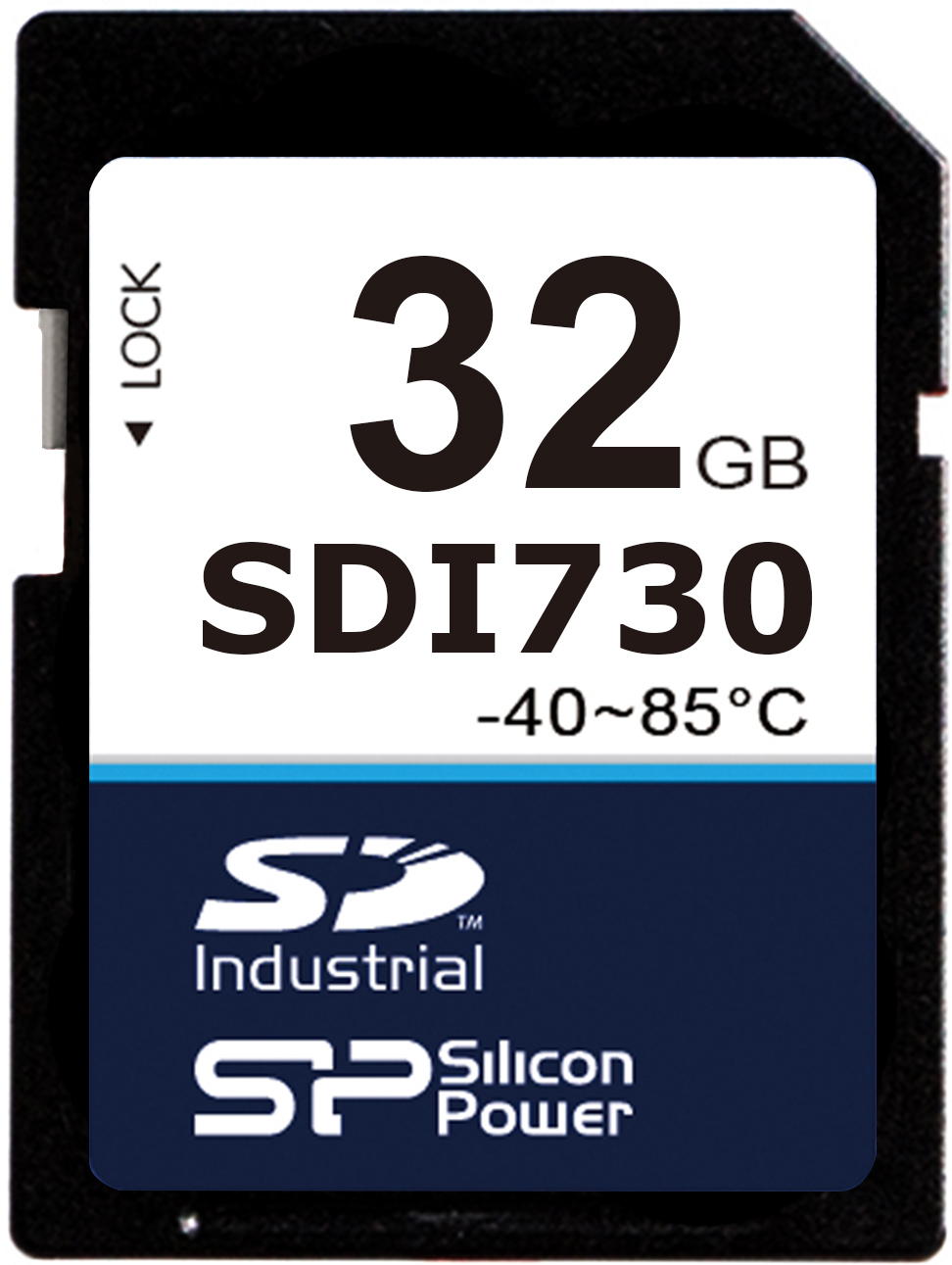

Model SDI790 SDI730 SD-I20 SDI550
Flash Technologie SLC SLC SLC pSLC (3D TLC)
Interface SD 3.0 / UHS-I SD 3.0 / UHS-I SD 2.0 SD 3.0
Capacity 1GB ~ 8GB 256MB ~ 32GB 128MB ~ 1GB 8GB ~ 64GB
Seq. Performance Read (max.) 35 MB/s 40 MB/s 20 MB/s 95 MB/s
Seq. Performance Write (max.) 30 MB/s 30 MB/s 18 MB/s 90 MB/s
Power Requirement DC 3.3V DC 3.3V DC 3.3V DC 3.3V
Power Consumption (max.) 140 mA 65 mA 50 mA 400 mA
Power Consumption (idle) 3.5 mA 140 uA 150 uA 1 mA
Dimension (mm) 32.0 x 24.0 x 2.1 32.0 x 24.0 x 2.1 32.0 x 24.0 x 2.1 32.0 x 24.0 x 2.1
MTBF ≒2,000,000 hrs ≒2,000,000 hrs ≒2,000,000 hrs ≒3,000,000 hrs
Temperature
Operating -25°C ~ 85°C: Standard - - - -
Operating -40°C ~ 85°C: Wide SP***GISDI791NW0 SP***GISDI731NW0 SP***BSDI000W20** SP***GISDI551NW0
Key Features
Write Protect Switch
Torque 0.15 Nm 0.15 Nm 0.15 Nm 0.15 Nm
Bending 10 N 10 N 10 N 10 N
Duration (cycles) 10.000 10.000 10.000 10.000
S.M.A.R.T
SP SMART Utility

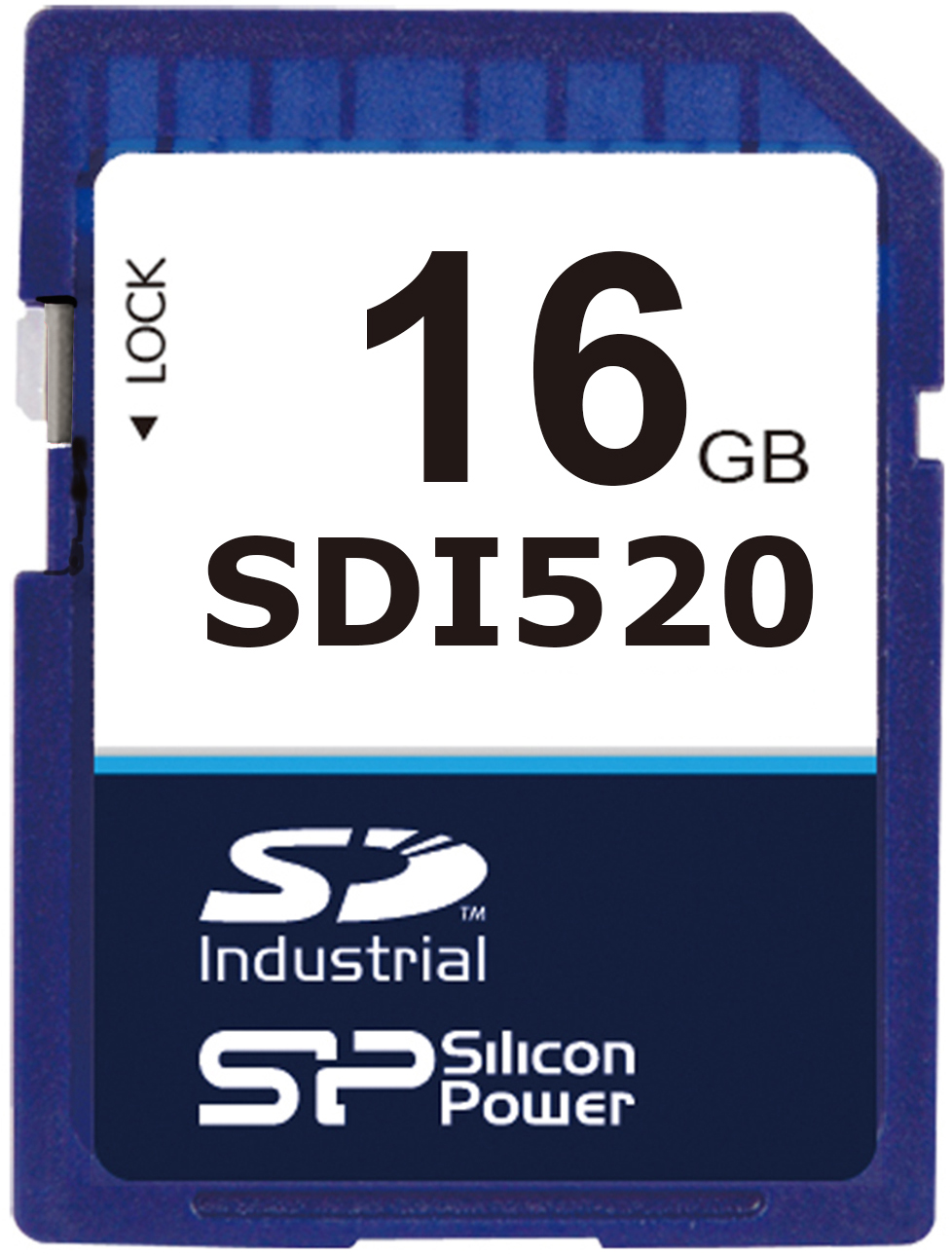

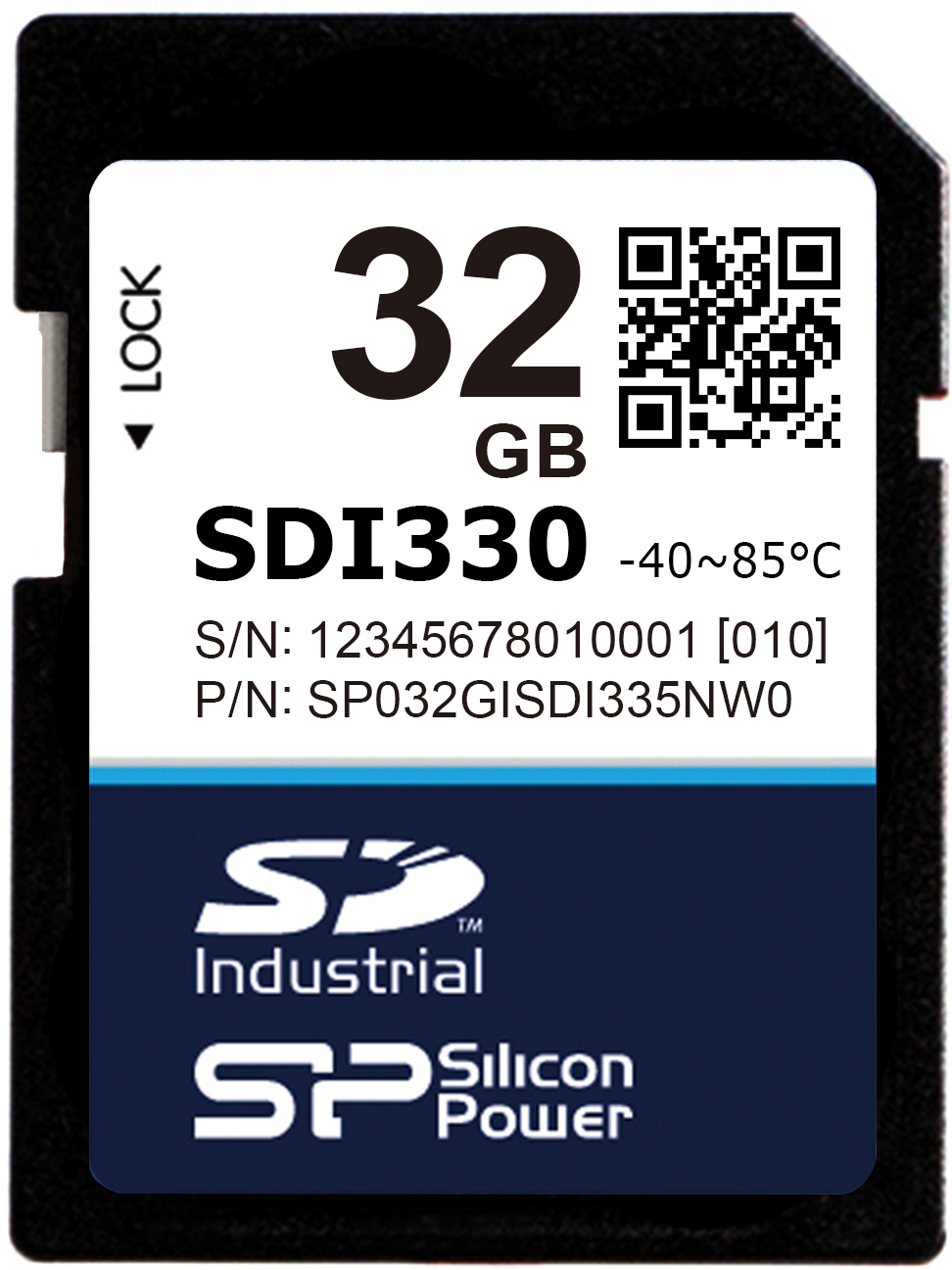

Model SDI530 SDI520 SDI350 SDI330
Flash Technologie pSLC (MLC) pSLC (MLC) 3D TLC MLC
Interface SD 3.0 / UHS-I SD 3.0 SD 3.0 / UHS-I SD 3.0 / UHS-I
Capacity 4GB ~ 128GB 8GB ~ 64GB 32GB ~ 256GB 8GB ~ 256GB
Seq. Performance Read (max.) 81 MB/s 85 MB/s 95 MB/s 81 MB/s
Seq. Performance Write (max.) 46 MB/s 70 MB/s 90 MB/s 46 MB/s
Power Requirement DC 3.3V DC 3.3V DC 3.3V DC 3.3V
Power Consumption (max.) 300 mA 140 mA 400 mA 300 mA
Power Consumption (idle) 300 uA 140 uA 1 mA 300 uA
Dimension (mm) 32.0 x 24.0 x 2.1 32.0 x 24.0 x 2.1 32.0 x 24.0 x 2.1 32.0 x 24.0 x 2.1
MTBF ≒2,000,000 hrs ≒2,000,000 hrs ≒2,000,000 hrs ≒2,000,000 hrs
Temperature
Operating -25°C ~ 85°C: Standard - SP***GISDI525NE0 SP***GISDI351NE -
Operating -40°C ~ 85°C: Wide SP***GISDI535NW0 - SP***GISDI335NW0
Key Features
Write Protect Switch
Torque 0.15 Nm 0.15 Nm 0.15 Nm 0.15 Nm
Bending 10 N 10 N 10 N 10 N
Duration (cycles) 10.000 10.000 10.000 10.000
S.M.A.R.T
SP SMART Utility By Request

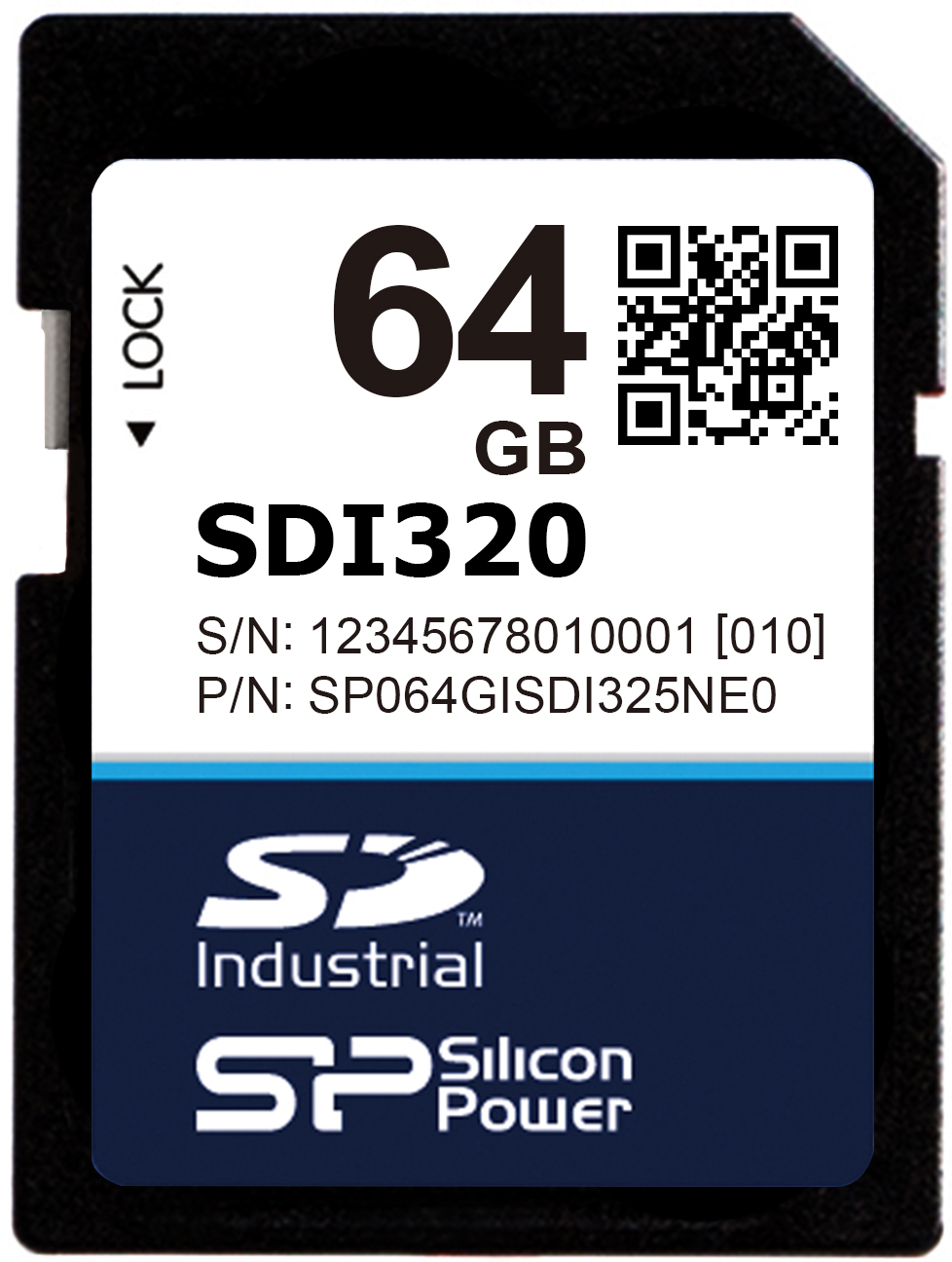

Model SDI320
Flash Technologie MLC / 3D TLC
Interface SD 3.0 / UHS-I
Capacity 8GB ~ 256GB
Seq. Performance Read (max.) 95 MB/s
Seq. Performance Write (max.) 50 MB/s
Power Requirement DC 3.3V
Power Consumption (max.) 145 mA
Power Consumption (idle) 140 uA
Dimension (mm) 32.0 x 24.0 x 2.1
MTBF ≒2,000,000 hrs
Temperature
Operating -25°C ~ 85°C: Standard SP***GISDI325NE0
Operating -40°C ~ 85°C: Wide -
Key Features
Write Protect Switch
Torque 0.15 Nm
Bending 10 N
Duration (cycles) 10000
S.M.A.R.T
SP SMART Utility By Request
