Industrial USB (USB 2.0)

Apro

Model HERCULES-PD HERCULES-PD HERCULES-PD (G5) HERCULES-PD (G5L)
Flash Type SLC MLC SLC SLC
Capacity 128MB~8GB 4GB~32GB 128MB~8GB 16GB
Compatibility USB 2.0 USB 2.0 USB 2.0 Hi-Speed and USB1.1 USB 2.0 Hi-Speed and USB1.1
Data transfer rate Hi-Speed up to 480 Mbps (60MB/s) Hi-Speed up to 480 Mbps (60MB/s) Hi-Speed up to 480 Mbps (60MB/s) Hi-Speed up to 480 Mbps (60MB/s)
Sequential read (Max.) 31.5 MB/sec 26 MB/sec 31.5 MB/sec 31.2 MB/sec
Sequential write (Max.) 24.5 MB/sec 14.9 MB/sec 24.5 MB/sec 24.5 MB/sec
Operating temp. (STD/IND or WIDE) S : 0˚C~+70˚C/ I : -40˚C~+85˚C S : 0˚C~+70˚C/ W : -40˚C~+85˚C S : 0˚C~+70˚C/ I : -40˚C~+85˚C S : 0˚C~+70˚C/ I : -40˚C~+85˚C
OS supported Windows series O.S.Linux, VxWorks and DOS Windows series O.S.Linux, VxWorks and DOS Windows series O.S.Linux, VxWorks and DOS Windows series O.S.Linux, VxWorks and DOS
Power requirement 5V ± 10% via USB port 5V ± 10% via USB port 5V ± 10% via USB port 5V ± 10% via USB port
Wear-leveling Static Static Static Static
TBW Up to 56.1 TBW at 8GB Up to 7.7 TBW at 32GB Up to 56.1 TBW at 8GB Up to 112.6 TBW at 16GB
Erase counts 60,000 3,000 60,000 60,000
Dimension (WxLxH,mm) 15.95 x 54.82 x 15.95 15.95 x 54.82 x 15.95 17.20 x 47.20 x 7.80 17.20 x 50.70 x 7.80
Model HERCULES-PD (G5) HERCULES-PD (G5)
Flash Type MLC MLC
Capacity 4GB~32GB 64GB
Compatibility USB 2.0 Hi-Speed and USB1.1 USB 2.0 Hi-Speed and USB1.1
Data transfer rate Hi-Speed up to 480 Mbps (60MB/s) Hi-Speed up to 480 Mbps (60MB/s)
Sequential read (Max.) 26 MB/sec 24 MB/sec
Sequential write (Max.) 14.9 MB/sec 16.5 MB/sec
Operating temp. (STD/IND or WIDE) S : 0˚C~+70˚C/ W : -40˚C~+85˚C S : 0˚C~+70˚C/ W : -40˚C~+85˚C
OS supported Windows series O.S.Linux, VxWorks and DOS VxWorks and DOS Windows series O.S.Linux, VxWorks and DOS
Power requirement 5V ± 10% via USB port 5V ± 10% via USB port
Wear-leveling Static Static
TBW Up to 7.7 TBW at 32GB Up to 15.4 TBW at 64GB
Erase counts 3,000 3,000
Dimension (WxLxH,mm) 17.20 x 47.20 x 7.80 17.20 x 50.70 x 7.80

Silicon Power

  • Compliant with USB Standard Specification 2.0 and backwards-compatible with USB 1.1
  • Supports USB Mass Storage Command Protocol
  • Operates as Boot Disk or Code Storage Device for Embedded Operating System
  • Supports SP Toolbox SMART Health Monitoring System software (optional)
  • Security partition drive available by request

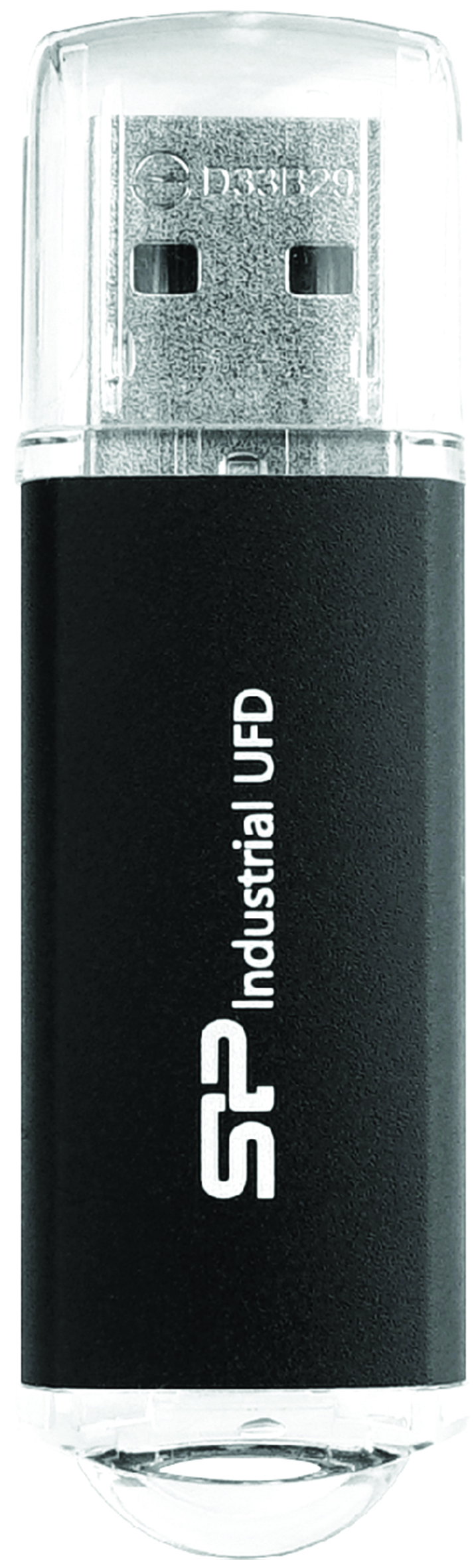

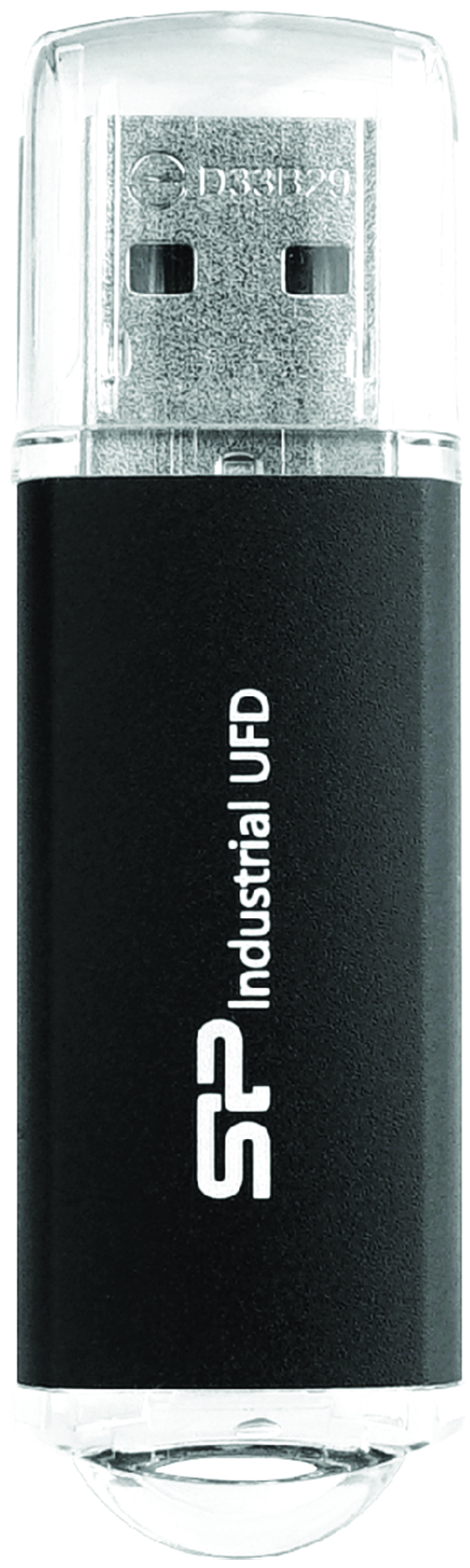

Model UFD710 UFD510 UFD310
Flash Technologie SLC pSLC (MLC) MLC
Interface USB 2.0 USB 2.0 USB 2.0
Capacity 512MB ~ 16GB 4GB ~ 16GB 8GB ~ 32GB
Seq. Performance Read (max.) 22 MB/s 20 MB/s 20 MB/s
Seq. Performance Write (max.) 19 MB/s 15 MB/s 15 MB/s
Power Requirement DC 5.0V DC 5.0V DC 5.0V
Power Consumption (max.) 110 mA 110 mA 110 mA
Power Consumption (idle) 1.2 mA 1.2 mA 1.2 mA
Dimension (mm) 60.6 x 18.0 x 8.1 60.6 x 18.0 x 8.1 60.6 x 18.0 x 8.1
MTBF ≒2,000,000 hrs ≒2,000,000 hrs ≒2,000,000 hrs
Temperature
Operating 0°C ~ 70°C: Standard SP***GIUFD711NV0 SP***GIUFD51*NV0 SP***GIUFD31*NV0
Key Features
Duration (cycles) 10000 10000 10000
SP SMART Utility By Request By Request By Request
