Industrial microSD CARD

Apro

Eigenschaften

  • Industrial Grade SD / microSDCards 128MB bis 2GB
  • Industrial Grade SDHC / microSDHC Cards 4GB bis 256GB
  • Operativer Temperaturbereich von -40°C bis +85°C
  • ECC, globales Wear-Leveling, BBM und S.M.A.R.T.
  • SD(HC) oder SPI-Mode

Beschreibung

APROs High-Speed Industrial Grade SD bzw. Industrial Grade microSD Cards mit Kapazitäten von 128MB bis 256GB in Verbindung mit SLC / MLC / aSLC/ 3D NANDFlash sichert hierbei die für anspruchsvolle Applikationen geforderte Zuverlässigkeit und Performance der Speicherkarten.ECC, Sudden-Power-Down Schutzmechanismen, Wear-Leveling, S.M.A.R.T. und weitere Funktionen garantieren hierbei die Sicherheit Ihrer Daten auf den Industrial Grade SD Cards.

Weitere Eigenschaften der Industrial Grade SD / microSD Cards

  • Langzeitverfügbarkeit (fixed BOM), gleichbleibende Komponenten bis hin zur Firmware-Version der Industrial Grade SD Card
  • Keine mechanischen Bauteile (Solid-State Technologie). Damit schock- und vibrationsresistent verschleißfrei und robust. Niedriger Stromverbrauch, schnelle Zugriffzeiten und keinerlei Geräuschentwicklung
  • Die Industrial Grade SD Cards sind CE, REACH und RoHS konform

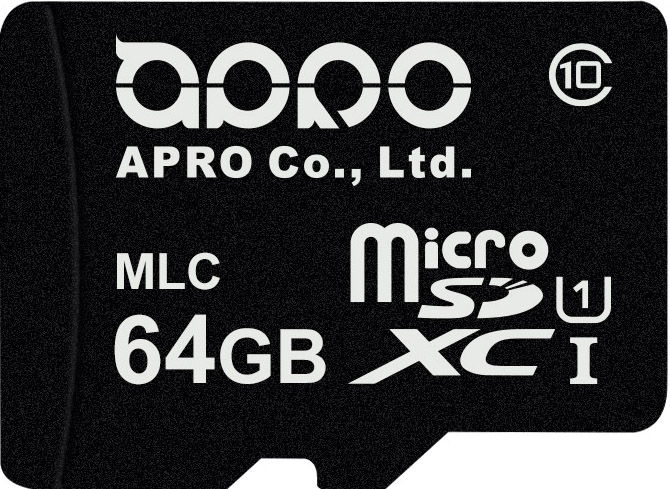

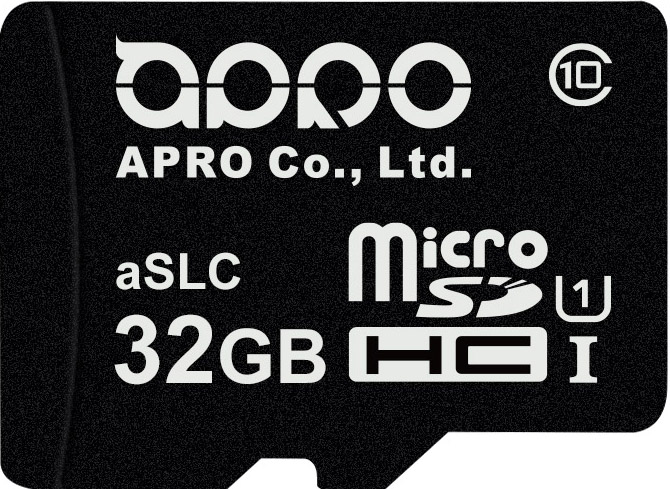

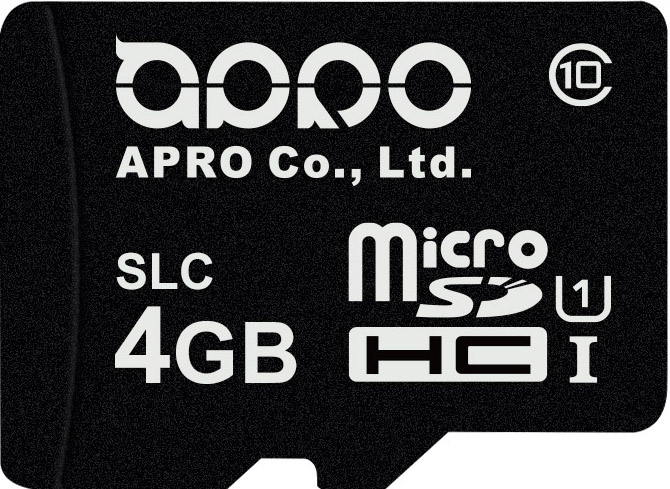

Model PHANES-F PHANES-F PHANES-F PHANES-P
Flash Type SLC MLC aSLC 3D-NAND
Capacity 1GB~4GB 8GB~64GB 4GB~32GB 16GB~256GB
Compatibility SD3.0 SD3.0 SD3.0 SD6.1
microSDHC/microSDXC 1GB to 2GB: FAT file system 8GB to 32GB: FAT16 file system 1GB to 2GB: FAT file system 16GB / 32GB: FAT16 file system
microSDHC/microSDXC 4GB: FAT16 file system 64GB: exFAT file system 4GB: FAT16 file system 64GB~256GB: exFAT
Data transfer rate Class-10 Class-10 Class-10 A1,V10,Class-10 U1,UHS-1
Sequential read (Max.) microSD: 23.4 MB/sec microSDHC: 67.2 MB/sec microSDHC: 93.9 MB/sec microSDXC: 94.3 MB/sec microSDHC: 95.3 MB/sec microSDHC: 95.0 MB/sec microSDXC: 95.0 MB/sec
Sequential write (Max.) microSD: 20.7 MB/sec microSDHC: 48.4 MB/sec microSDHC: 61.6 MB/s (Max.) microSDXC: 76.7 MB/s (Max.) microSDHC: 83.6 MB/sec microSDHC: 20.0 MB/sec microSDHC: 30.0 MB/sec
Operating temp. (STD/IND or WIDE) I : -40˚C~+85˚C W : -40˚C~+85˚C W : -40˚C~+85˚C W : -25˚C~+85˚C
Power requirement 3.3V ± 10% 3.3V ± 10% 3.3V ± 10% 3.3V ± 10%
Wear-leveling Static & Dynamic Static & Dynamic Static & Dynamic Static & Dynamic
Erase counts 60,000 3,000 20,000 3,000
Dimension (WxLxH,mm) 11.0 x 15. 0 x 1.0 11.0 x 15. 0 x 1.0 11.0 x 15. 0 x 1.0 11.0 x 15. 0 x 1.0

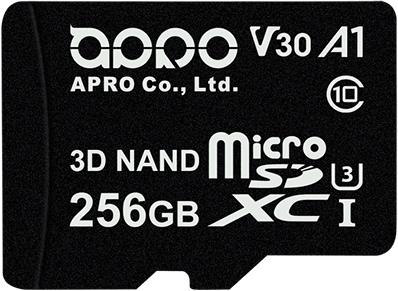

Model PHANES-P
Flash Type 3D-aSLC
Capacity 4GB~64GB
Compatibility SD6.1
microSDHC/microSDXC 4GB~32GB: FAT16 file system
microSDHC/microSDXC 64GB: exFAT file system
Data transfer rate A1,V10,Class-10 U3,UHS-1
Sequential read (Max.) microSDHC: 95.0 MB/sec microSDXC: 95.0 MB/sec
Sequential write (Max.) microSDHC: 85.0 MB/sec microSDHC: 85.0 MB/sec
Operating temp. (STD/IND or WIDE) W : -25˚C~+85˚C
Power requirement 3.3V ± 10%
Wear-leveling Static & Dynamic
Erase counts 30,000
Dimension (WxLxH,mm) 11.0 x 15. 0 x 1.0

Silicon Power

  • Compliant with SD Memory Card Specification 3.0 and backwards-compatible with 2.0, 1.1, and 1.01
  • High endurance suitable for 24/7 continuous video recording
  • Steady performance design to ensure all frames are recorded
  • Supports SP Toolbox SMART Health Monitoring System software (optional)

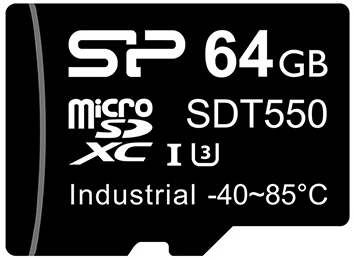

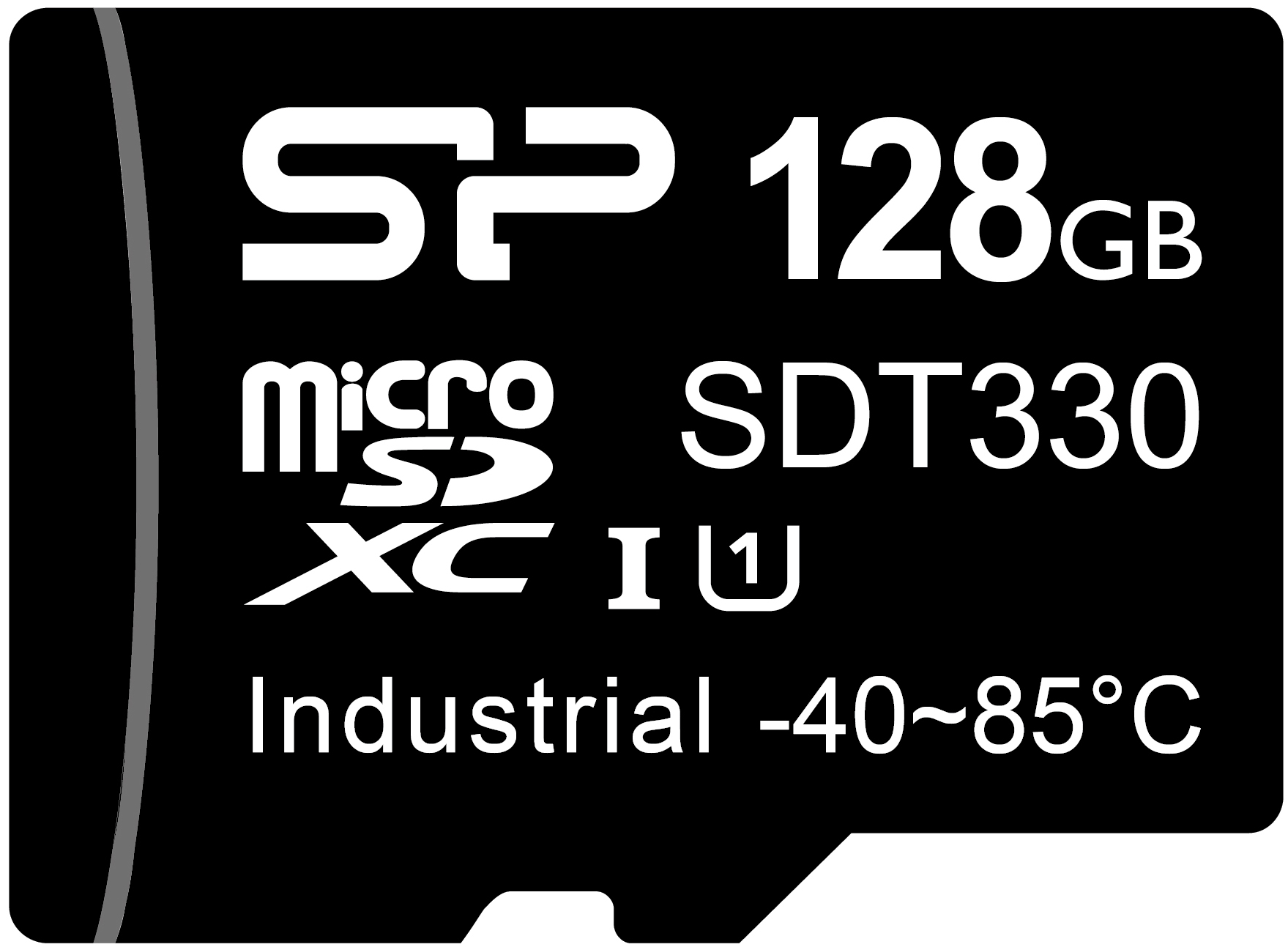

Model SDT730 SDT550 SDT530 SDT330
Flash Technologie SLC pSLC (3D TLC) pSLC (MLC) MLC
Interface SD 3.0 / UHS-I SD 3.0 / UHS-I SD 3.0 / UHS-I SD 3.0 / UHS-I
Capacity 1GB ~ 8GB 8GB ~ 64GB 4GB ~ 64GB 8GB ~ 128GB
Seq. Performance Read (max.) 32 MB/s 95 MB/s 81 MB/s 81 MB/s
Seq. Performance Write (max.) 28 MB/s 85 MB/s 46 MB/s 46 MB/s
Power Requirement DC 3.3V DC 3.3V DC 3.3V DC 3.3V
Power Consumption (max.) 70 mA 400 mA 191 mA 191 mA
Power Consumption (idle) 140 uA 1 mA 292 uA 292 uA
Dimension (mm) 15.0 x 11.0 x 1.0 15.0 x 11.0 x 1.0 15.0 x 11.0 x 1.0 15.0 x 11.0 x 1.0
MTBF ≒2,000,000 hrs ≒2,000,000 hrs ≒2,000,000 hrs ≒2,000,000 hrs
Temperature
Operating -25°C ~ 85°C: Standard - - - -
Operating -40°C ~ 85°C: Wide SP***GISDT731NW0 SP***GISDT551NW0 SP***GISDT535NW0 SP***GISDT335NW0
Key Features
Torque 0.15 Nm 0.15 Nm 0.15 Nm 0.15 Nm
Bending 10 N 10 N 10 N 10 N
Duration (cycles) 10000 10000 10000 10000
S.M.A.R.T
SP SMART Utility

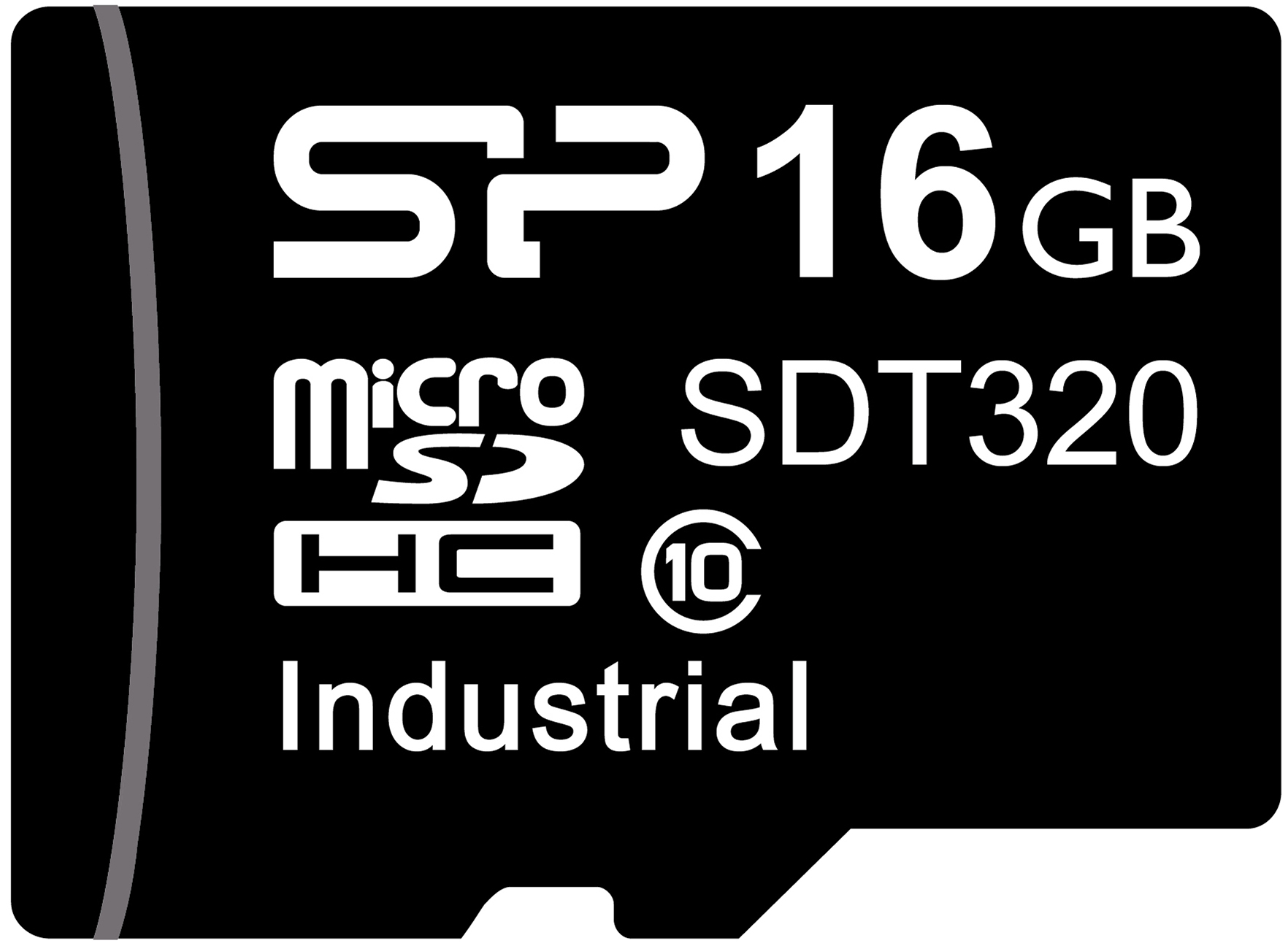

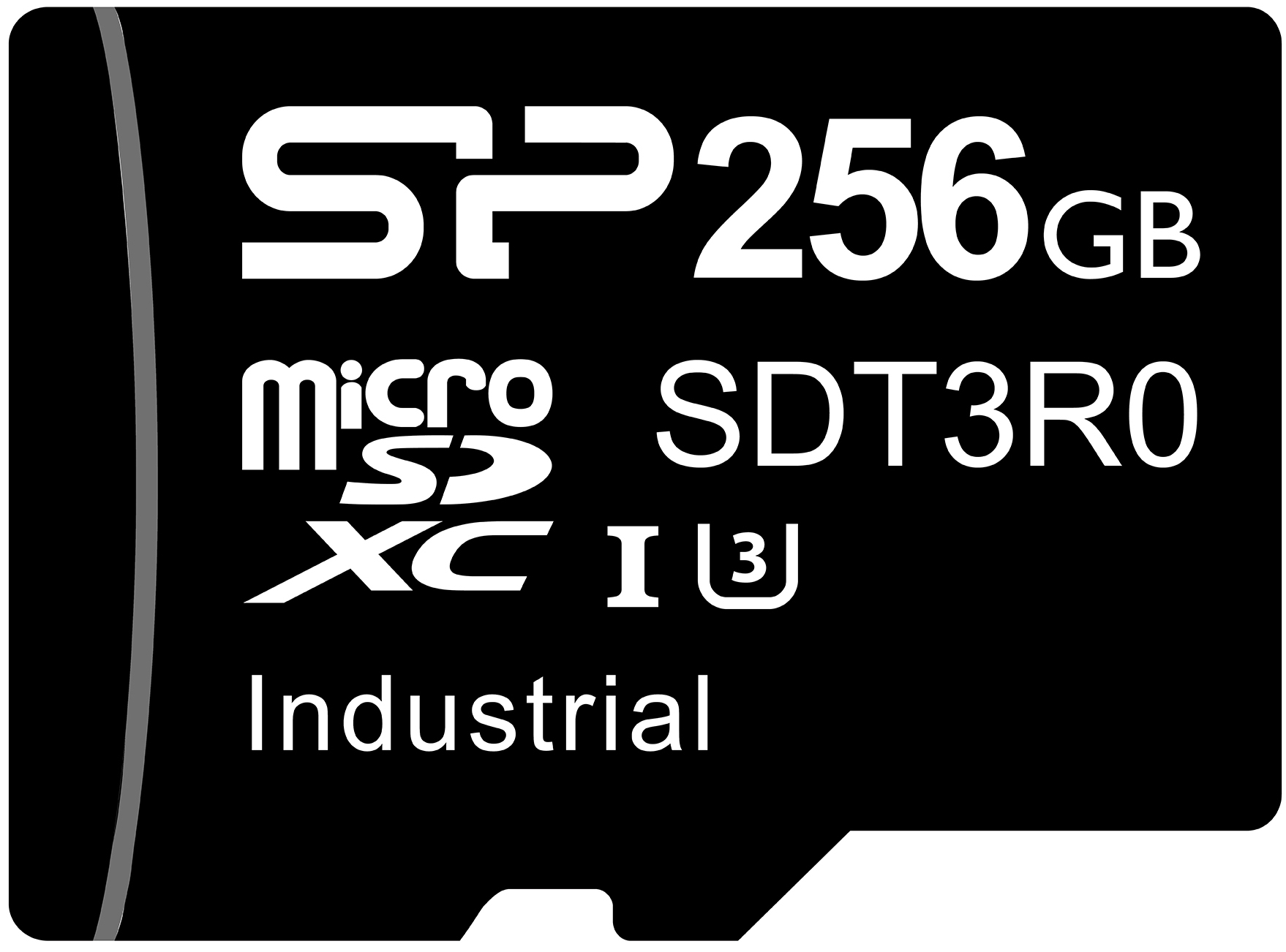

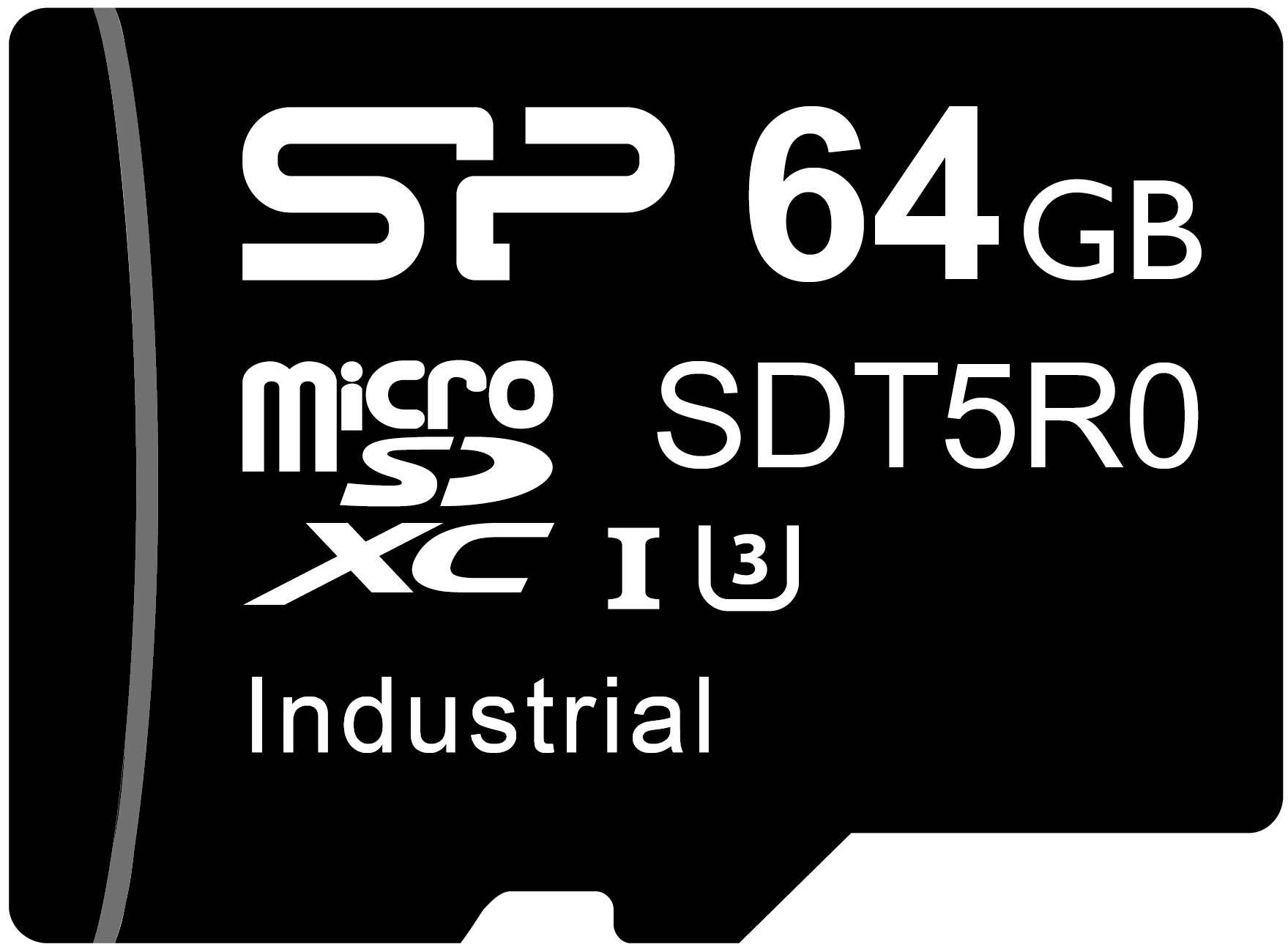

Model SDT320 SDT5R0 SDT3R0
Flash Technologie MLC / 3D TLC pSLC (3D TLC) 3D TLC
Interface SD 3.0 / UHS-I SD 3.0 / UHS-I SD 3.0 / UHS-I
Capacity 8GB ~ 16GB 8GB ~ 64GB 32GB ~ 256GB
Seq. Performance Read (max.) 81 MB/s 93 MB/s 93 MB/s
Seq. Performance Write (max.) 46 MB/s 80 MB/s 80 MB/s
Power Requirement DC 3.3V DC 3.3V DC 3.3V
Power Consumption (max.) 58 mA 100 mA 100 mA
Power Consumption (idle) 90 uA 300 uA 300 uA
Dimension (mm) 15.0 x 11.0 x 1.0 15.0 x 11.0 x 1.0 15.0 x 11.0 x 1.0
MTBF ≒2,000,000 hrs ≒2,000,000 hrs ≒2,000,000 hrs
Temperature
Operating -25°C ~ 85°C: Standard SP***GISDT325NE0 SP***GISDT5R5NE0 SP***GISDT3R5NE0
Operating -40°C ~ 85°C: Wide - - -
Key Features
Torque 0.15 Nm 0.15Nm 0.15Nm
Bending 10 N 10N 10N
Duration (cycles) 10000 10000 10000
S.M.A.R.T
SP SMART Utility
