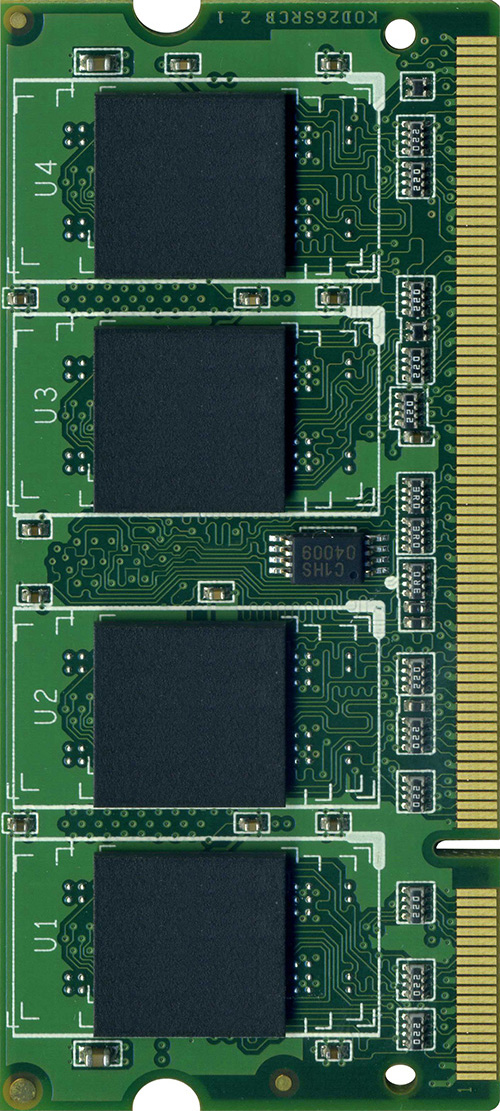

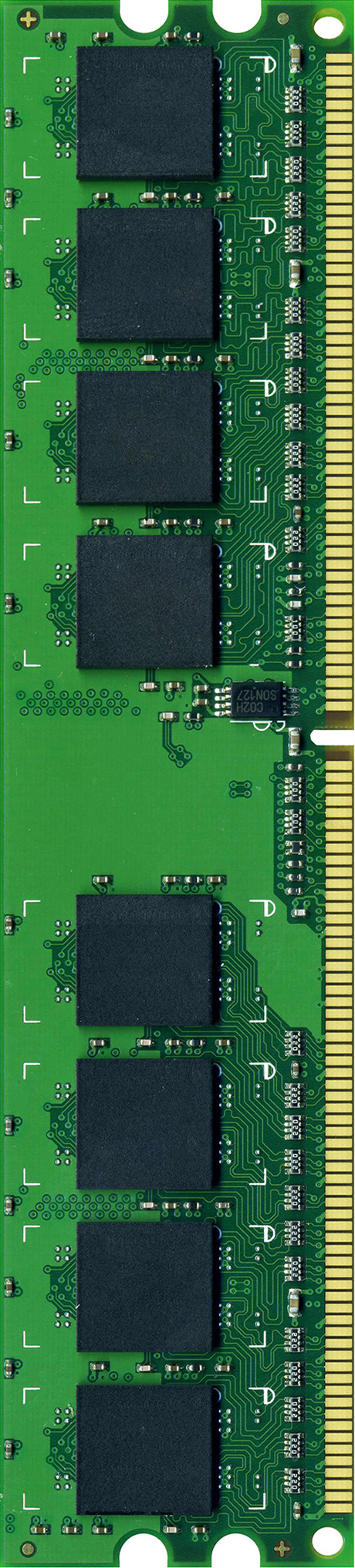

| Model | SO-DIMM | U-DIMM | ||
|---|---|---|---|---|
| Flash Type | DDRII | DDRII | ||
| Capacity | 512MB / 1GB / 2GB / 4GB | 512MB / 1GB / 2GB / 4GB | ||
| Grade | 0ºC~+70ºC/-40ºC~+85ºC | 0ºC~+70ºC/-40ºC~+85ºC | ||
| IC Data Rate | DDRII-800 | DDRII-800 | ||
| Bandwidth | 64 bits | 64 bits | ||
| DIMM Data Rate | 800MHz / 667MHz / 533MHz / 400MHz | 800MHz / 667MHz / 533MHz / 400MHz | ||
| Pin Number | 200 Pins | 240 Pins | ||
| Height | 30 mm + 0.15 mm | 30 mm + 0.15 mm | ||
| Voltage | 1.8V ± 0.1V | 1.8V ± 0.1V |
