Industrial Flash & DRAM

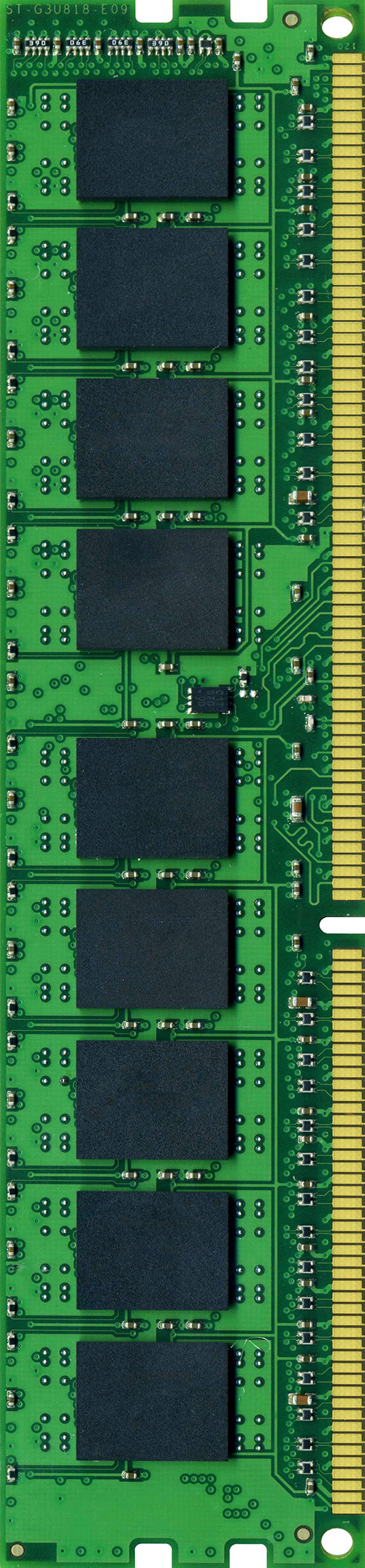

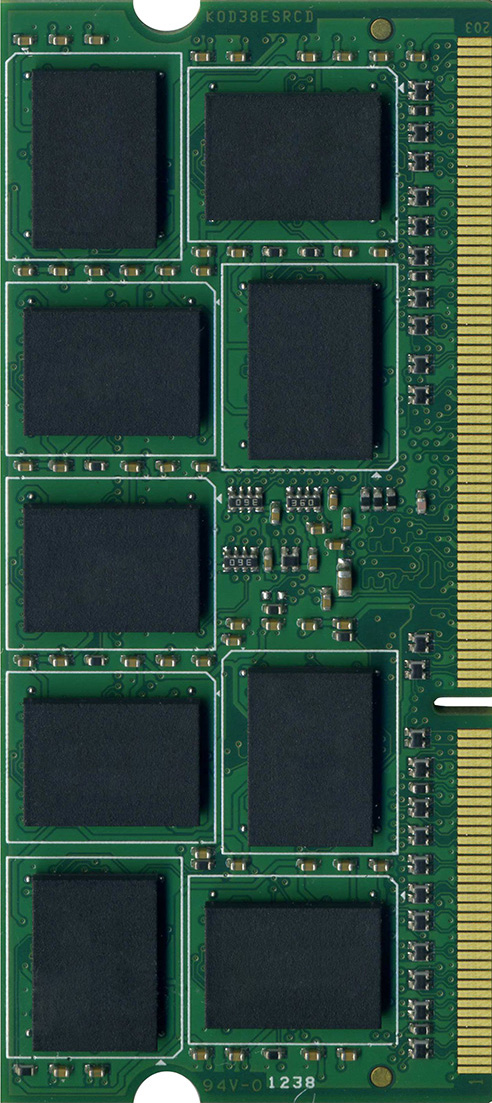

Model	SO-DIMM	SO-DIMM w/ECC	U-DIMM	U-DIMM w/ECC

Flash Type	DDRIII	DDRIII-L	DDRIII	DDRIII-L
Capacity	1GB / 2GB / 4GB / 8GB	1GB / 2GB / 4GB / 8GB	1GB / 2GB / 4GB / 8GB	2GB / 4GB / 8GB
Grade	0ºC~+70ºC/-40ºC~+85ºC	0ºC~+70ºC/-40ºC~+85ºC	0ºC~+70ºC/-40ºC~+85ºC	0ºC~+70ºC/-40ºC~+85ºC
IC Data Rate	Non-Fixed / DDRIII-1600	DDRIII-1600	Non-Fixed / DDRIII-1600	DDRIII-1600
Bandwidth	64 bits	72 bits	64 bits	72 bits
DIMM Data Rate	1600MHz / 1333MHz / 1066MHz	1600MHz / 1333MHz / 1066MHz	1600MHz / 1333MHz / 1066MHz	1600MHz / 1333MHz / 1066MHz
Pin Number	204 Pins	204 Pins	240 Pins	240 Pins
Height	30 mm + 0.15 mm	30 mm + 0.15 mm	30 mm + 0.15 mm	30 mm + 0.15 mm
Voltage	1.5V & 1.35V	1.5V & 1.35V	1.5V & 1.35V	1.5V & 1.35V

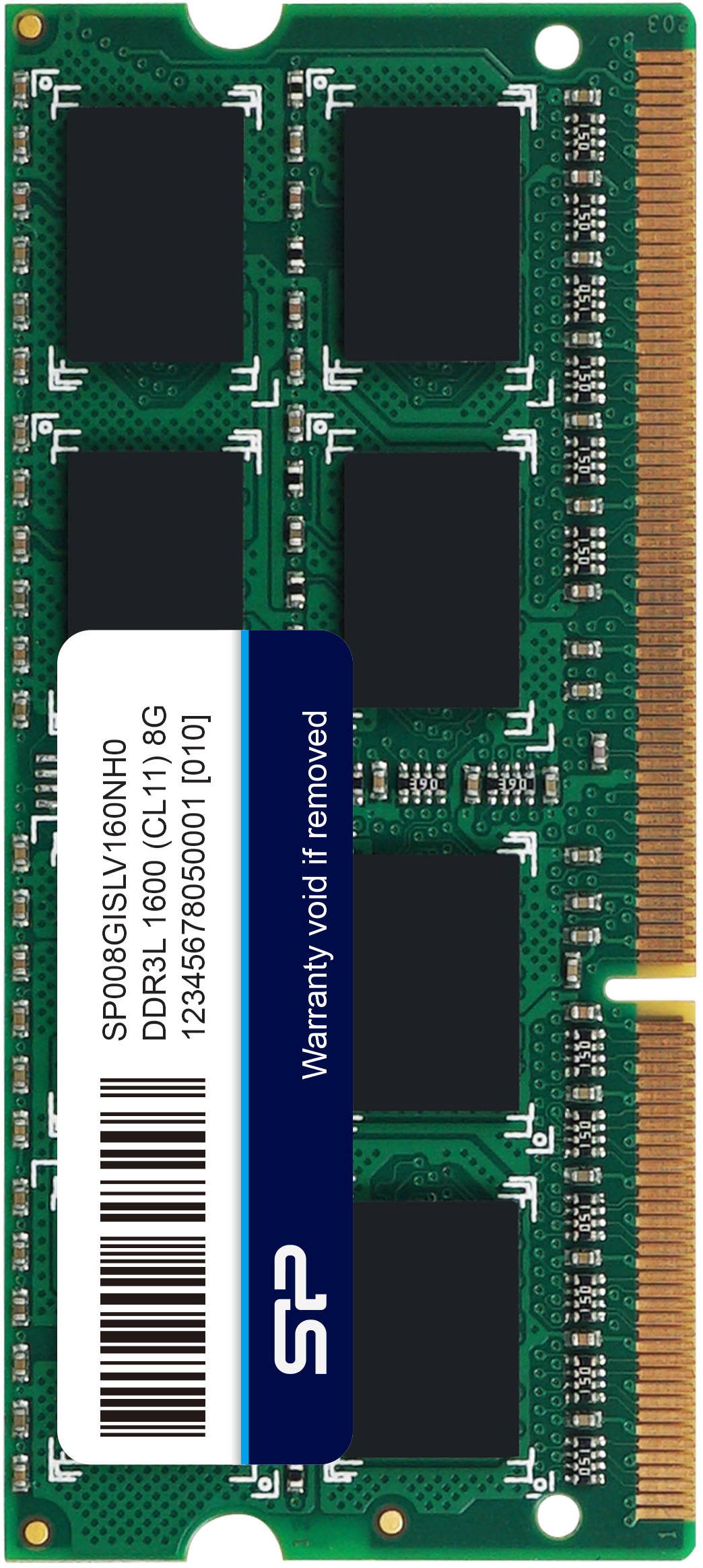

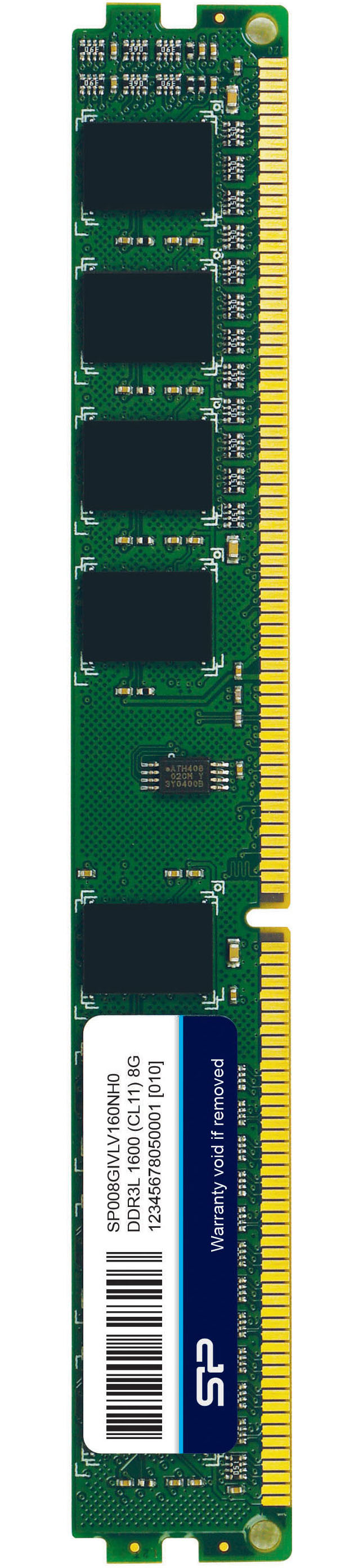

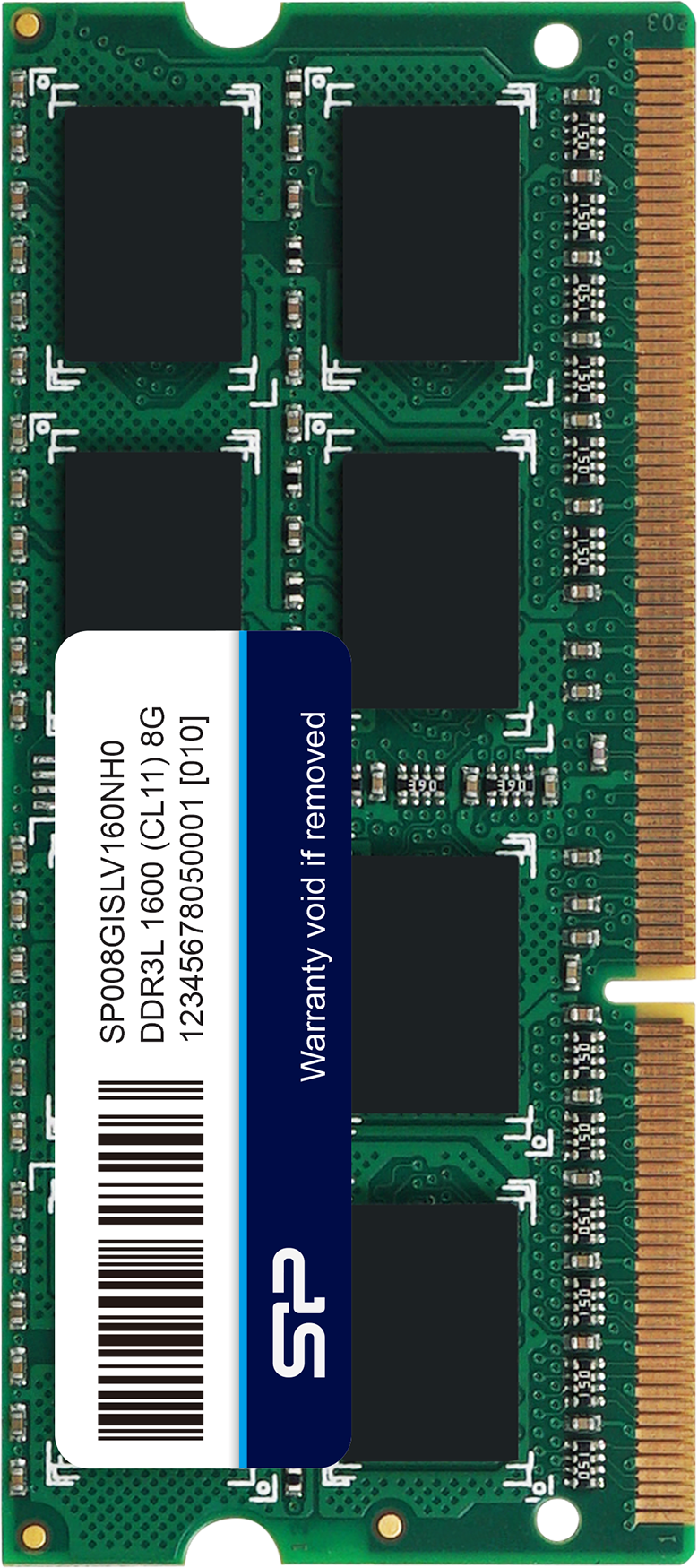

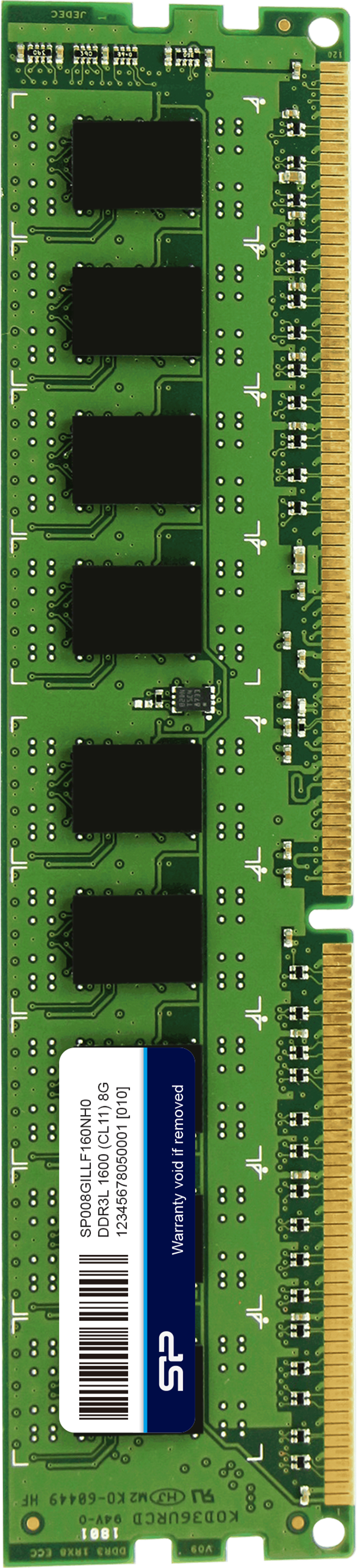

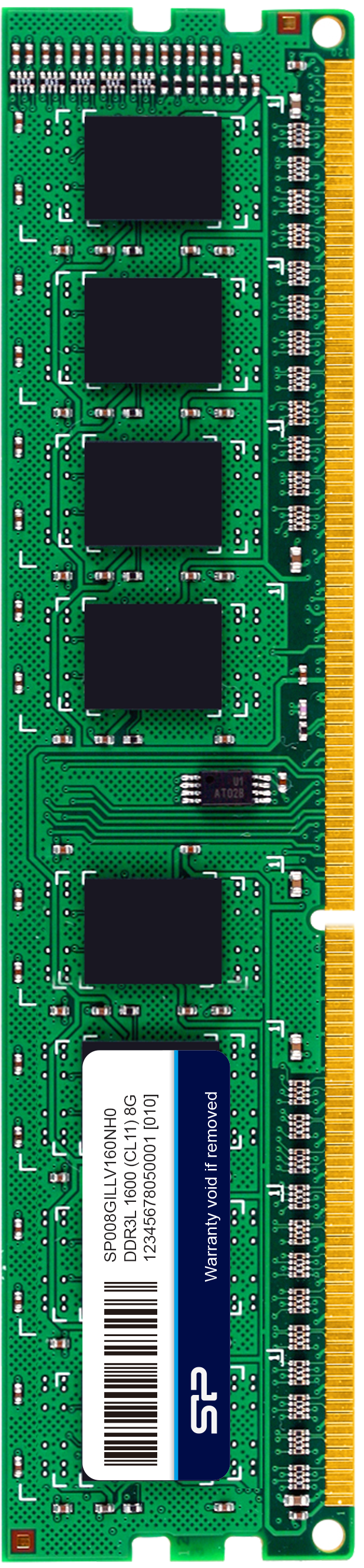

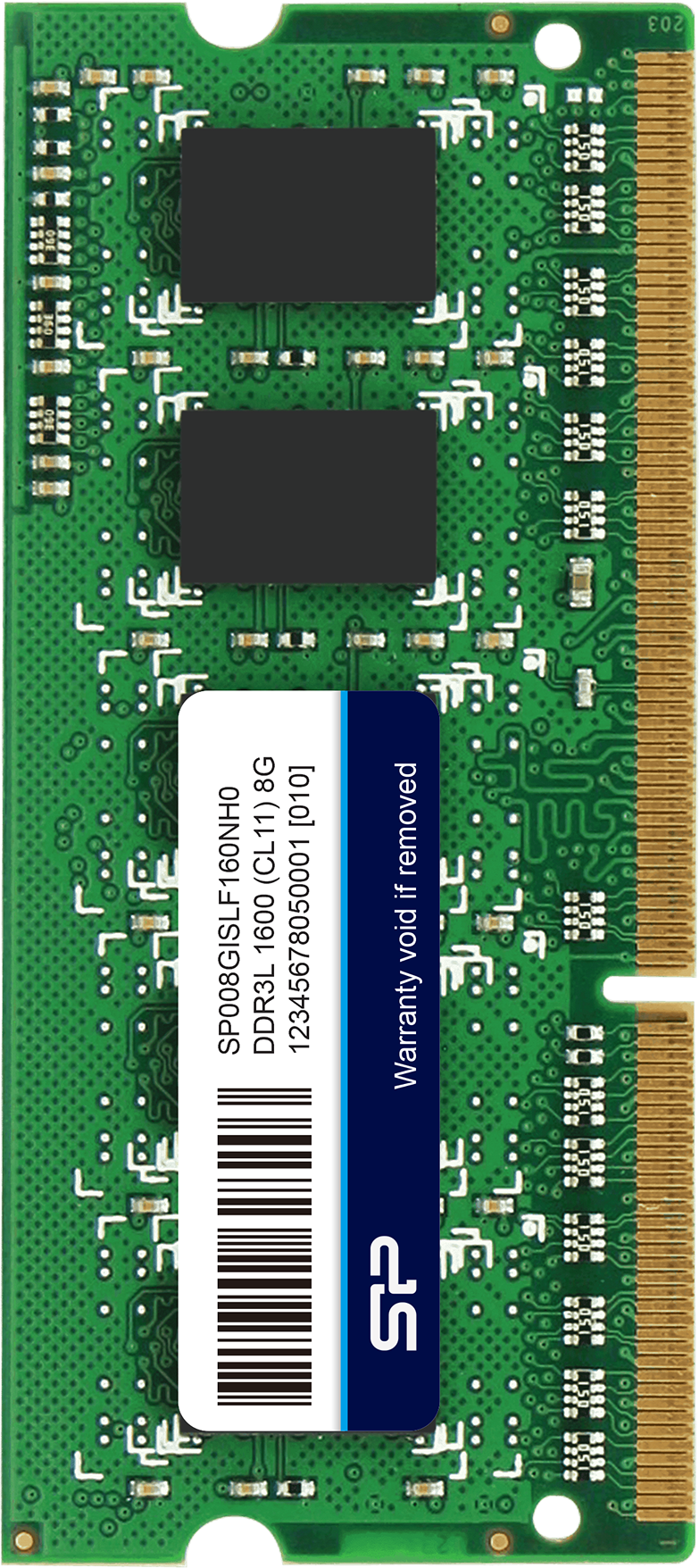

Model	SODIMM	UDIMM	ECC SODIMM	ECC UDIMM

DRAM Type	DDR3L	DDR3L	DDR3L	DDR3L
Capacity	8GB, 4GB, 2GB	8GB, 4GB, 2GB	8GB, 4GB, 2GB	8GB, 4GB, 2GB
Data Rate	1866 /1600 MT/s	1866 /1600 MT/s	1866 /1600 MT/s	1866 /1600 MT/s
CAS Latency	CL13/CL11	CL13/CL11	CL13/CL11	CL13/CL11
Voltage	1.35 V	1.35 V	1.35V	1.35V
Pin Count	204 pin	240 pin	204pin	240pin
Data Width	64 Bits	64 Bits	72Bits	72Bits
PCB Height	1.2" (30.15mm)	1.2" (30.50 mm)	1.2" (30.15mm)	1.2" (30.50mm)
Operating Temperature	-40°C～105°C / -20°C～95°C	-40°C～105°C / -20°C～95°C	-40°C～105°C / -20°C～95°C	-40°C～105°C / -20°C～95°C

Industrial DDR3 DRAM MODULES
