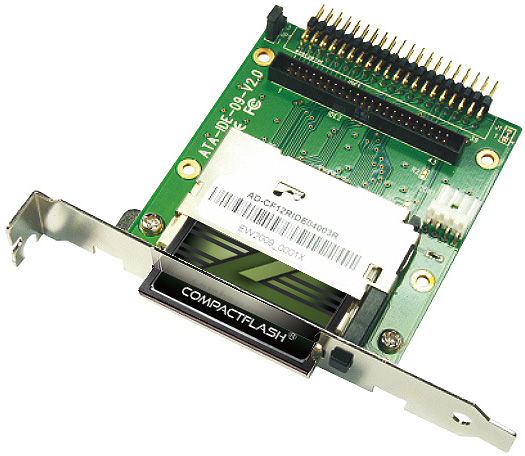

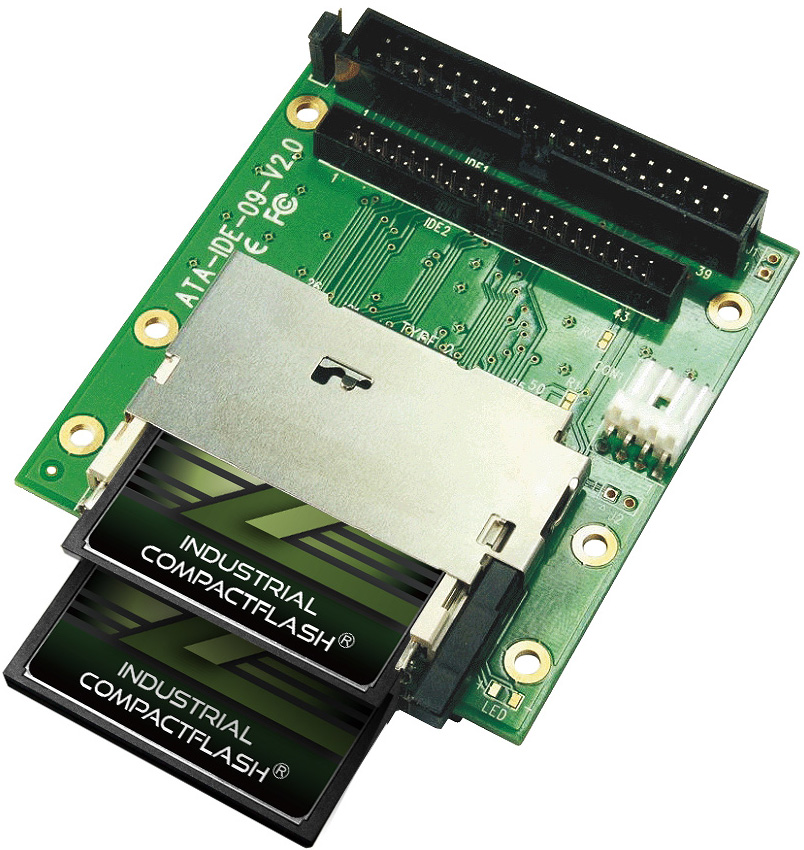

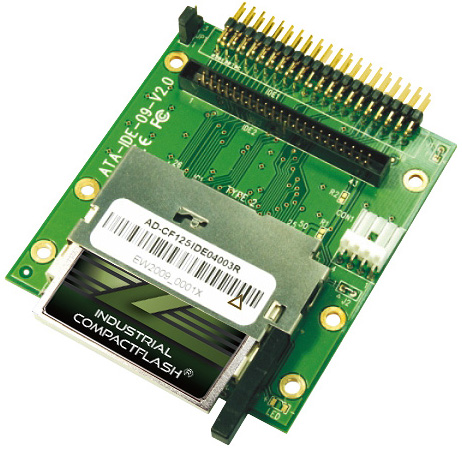

| Model | AD-CF125IDE04003R | AD-CF12RIDE04003R | AD-CF24HIDE04003R | |
|---|---|---|---|---|
| Flash Type | 2.5" IDE to CF Card | 2.5" IDE to CF Card | 2.5" IDE to CF Card | |
| Host interface | 40-pin (2.54mm pitch) male IDE connector *1 44-pin (2.00mm pitch) male IDE connector *1 | 40-pin (2.54mm pitch) male IDE connector *1 44-pin (2.00mm pitch) male IDE connector *1 | 40-pin (2.54mm pitch) male IDE connector *1 44-pin (2.00mm pitch) male IDE connector *1 | |
| CF Socket | CompactFlash® type II socket with ejector | CompactFlash® type II socket with ejector | CompactFlash® type II socket with ejector | |
| Power Connector | 40-pin IDE adapter equipped with a 4-pin floppy power connector | 40-pin IDE adapter equipped with a 4-pin floppy power connector | 40-pin IDE adapter equipped with a 4-pin floppy power connector | |
| Master / Slave Setup | By jumper | By jumper | By jumper | |
| Support Card Types | CompactFlash® card type I/II and MicroDrive | CompactFlash® card type I/II and MicroDrive | CompactFlash® card type I/II and MicroDrive | |
| Data Transfer Mode | Support PIO-4 mode, MWDMA-2 mode and up to UDMA-6 mode | Support PIO-4 mode, MWDMA-2 mode and up to UDMA-6 mode | Support PIO-4 mode, MWDMA-2 mode and up to UDMA-6 mode | |
| LED Indicator | Optional for special request | Optional for special request | Optional for special request | |
| Bootable | Yes | Yes | Yes | |
| Hot Swappable | No | No | No | |
| Operation Voltage | +5V | +5V | +5V | |
| Operating Temperature | 0°C~+70°C | 0°C~+70°C | 0°C~+70°C | |
| Non-operating Temperature | -20°C~+80°C | -20°C~+80°C | -20°C~+80°C | |
| Relative Humidity | Max 90% | Max 90% | Max 90% | |
| Supported O.S. | Compatible with DOS, Windows / Linux and O.S. | Compatible with DOS, Windows / Linux and O.S. | Compatible with DOS, Windows / Linux and O.S. | |
| Dimension (WxL,mm) | 75 x 70 | 75 x 70 | 70.1 x 78.1 |
