| Model | PHANES-EA | PHANES-EA | ||
|---|---|---|---|---|
| Flash Type | MLC | aSLC | ||
| Capacity | 8GB, 16GB | 4GB, 8GB | ||

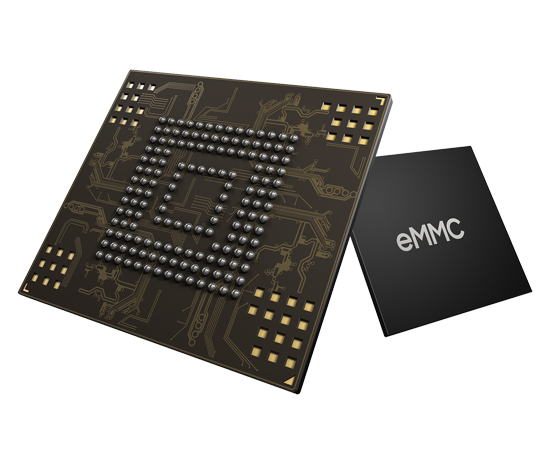

| Package | 153 Ball FFBGA(TFFBGA) Package | 153 Ball FFBGA(TFFBGA) Package | ||
| Compatibility | eMMC Specification Ver.4.4~5.1 | eMMC Specification Ver.4.4~5.1 | ||
| Bus mode | - High-speed eMMC protocol. | - High-speed eMMC protocol. | ||
| - Clock frequency: 0-200MHz. | - Clock frequency: 0-200MHz. | |||
| - Ten-wire bus (clock, 1 bit command, 8 bit data bus) and a hardware reset. | - Ten-wire bus (clock, 1 bit command, 8 bit data bus) and a hardware reset. | |||
| 3 data bus widths | - Single data rate : up to 200Mbyte/s @ 200MHz | - Single data rate : up to 200Mbyte/s @ 200MHz | ||
| - Dual data rate : up to 400Mbyte/s @ 200MHz | - Dual data rate : up to 400Mbyte/s @ 200MHz | |||
| - 8 parallel data rate : up to 52Mbyte/s @ 52 MHz (Default) | - 8 parallel data rate : up to 52Mbyte/s @ 52 MHz (Default) | |||
| Operating temp. (STD/IND or WIDE) | S : 0˚C~+85˚C | S : 0˚C~+85˚C | ||
| Power requirement | - Core Voltage (VCC): 2.7-3.6V | - Core Voltage (VCC): 2.7-3.6V | ||
| - I/O (VCCQ) Voltage: 1.7-1.95V/2.7-3.6V | - I/O (VCCQ) Voltage: 1.7-1.95V/2.7-3.6V | |||
| Dimension (WxLxH,mm) | 11.5 x 13.0 x 1.0 (mm) | 11.5 x 13.0 x 1.0 (mm) |
