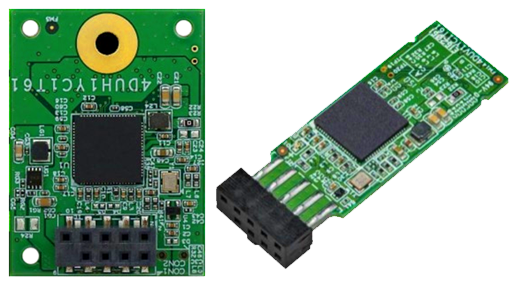

| Model | HERMIT-G | HERMIT-G | ||
|---|---|---|---|---|
| Flash Type | SLC | MLC | ||
| Capacity | 512MB~16GB | 8GB~128GB | ||
| Vertical type | Standard (VS) – 2.54 mm pin pitch | Not Availible | ||
| Horizontal type | Standard (HS) – 2.54 mm pin pitch Low-profile (HL) – 2.00 mm pin pitch | Standard (HS) – 2.54 mm pin pitch Low-profile (HL) – 2.00 mm pin pitch | ||
| Compatibility | USB 2.0 | USB 2.0 | ||
| Data transfer rate | FullSpeed, HighSpeed | FullSpeed, HighSpeed | ||
| Sequential read (Max.) | 30.0 MB/sec | 40.0 MB/sec | ||
| Sequential write (Max.) | 30.0 MB/sec | 25.0 MB/sec | ||
| Operating temp. (STD/IND or WIDE) | S : 0˚C~+70˚C/ I : -40˚C~+85˚C | S : 0˚C~+70˚C/ W : -40˚C~+85˚C | ||
| OS supported | Windows series O.S.Linux, VxWorks and DOS | Windows series O.S.Linux, VxWorks and DOS | ||
| Power requirement | 5V ± 10% via USB port | 5V ± 10% via USB port | ||
| Wear-leveling | Static | Static | ||
| TBW | Up to 864.0 TBW at 16GB Based on Sequential Write | Up to 345.6 TBW at 128GB Based on Sequential Write | ||
| Erase counts | 60,000 | 3,000 | ||
| Dimension (WxLxH,mm) | VS : 26.7 x 42.0 HS : 26.7 x 37.0 HL : 26.7 x 37.0 | HS : 26.7 x 37.0 HL : 26.7 x 37.0 |
